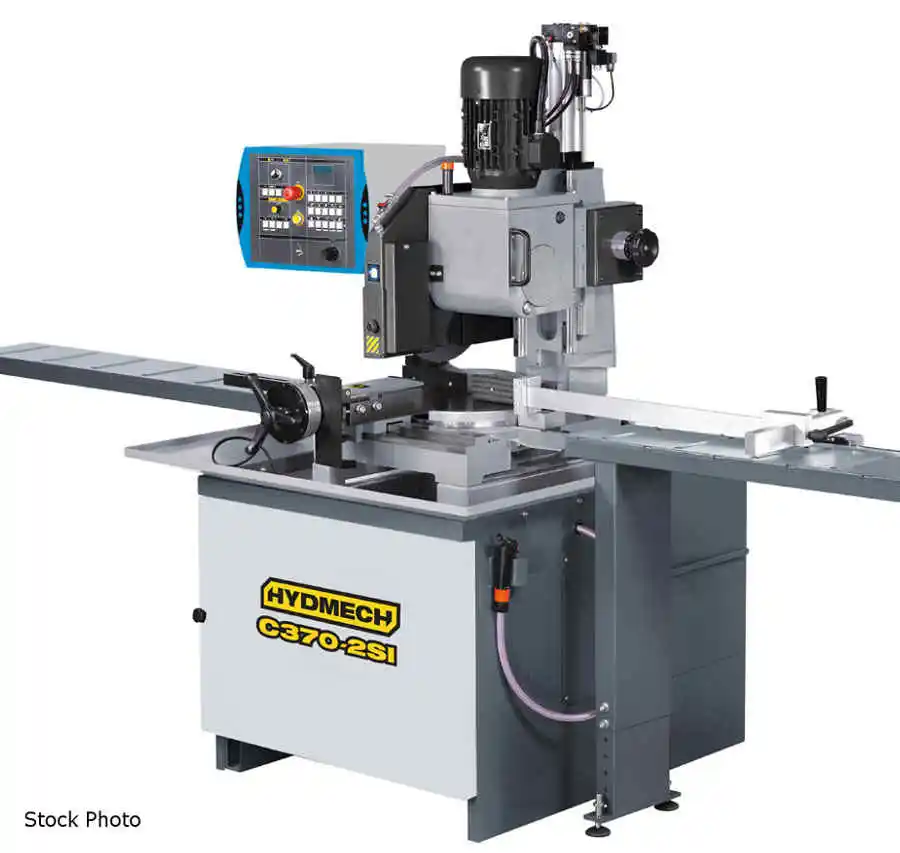

NEW HYDMECH C370-2SI

HYDMECH (NEW) MODEL C370-2SI SEMI-AUTOMATIC
COLUMN COLD SAW

CAPACITY - 90 DEGREES - HOLLOW
- 4.75" ROUND, 4-1/3" SQUARE, 7" X 3.75" RECT
CAPACITY - 45 DEGREES - LEFT/RIGHT - HOLLOW
- 4.5" ROUND, 4-1/3" SQUARE, 4.75" X 3.75" RECT
CAPACITY - 60 DEGREES - LEFT - HOLLOW
- 4.5" ROUND, 3.5" SQUARE, 3.5" X 3.75" RECTANGLE

CAPACITY - 90 DEGREES - SOLID
- 4.5" ROUND, 4" SQUARE, 7" X 3.75" RECTANGLE
CAPACITY - 45 DEGREES - LEFT/RIGHT - SOLID
- 2.75" ROUND, 2.5" SQUARE, 2.75" X 3.75" RECT
CAPACITY - 60 DEGREES - LEFT - SOLID
- 2" ROUND, 2" SQUARE, 2" X 3.75" RECTANGLE

14.5" BLADE SIZE - MAXIMUM
12" BLADE SIZE - MINIMUM
7.5 HP BLADE DRIVE
480 VOLTS, 3 PHASE
15 - 150 RPM BLADE SPEEDS

STANDARD MACHINE FEATURES
- SEMI-AUTOMATIC OPERATION

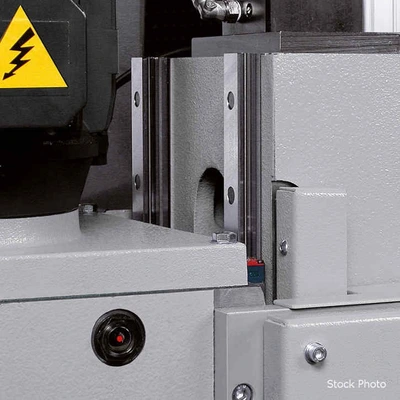

- ROBUST SAW HEAD MOVES ON ADJUSTABLE DUAL
PRECISION LINEAR RAILS
- MITERS 45 DEGREES LEFT RIGHT, 60 DEG LEFT
- INFINITELY VARIABLE BLADE SPEED 15-150 RPM
- ANTI-BURR CLAMP WITH DOUBLE LOCKING SYSTEM

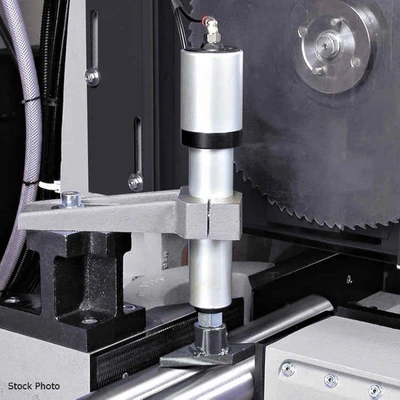

- VERTICAL PNEUMATIC VISE
- PNEUMATIC VISE SLIDES ON DOVETAIL

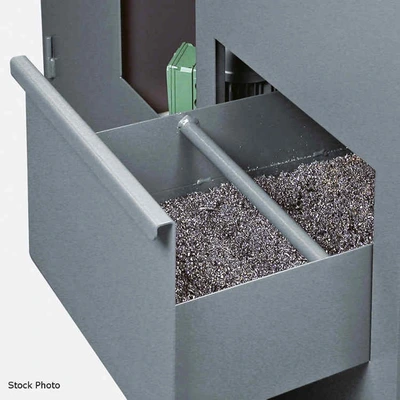

- ENCLOSED STEEL BASE WITH CHIP DRAWER
- COOLANT TANK IN BASE
- REPLACEABLE BLADE BRUSH
- CONTROL PANEL WITH MAIN DISCONNECT
- PROGRAMMABLE SAWING STROKE
- SAW HEAD FEED RATE CONTROL
- LED DISPLAY FOR MACHINE DIAGNOSTICS
- ADJUSTABLE MATERIAL STOP WITH RULER

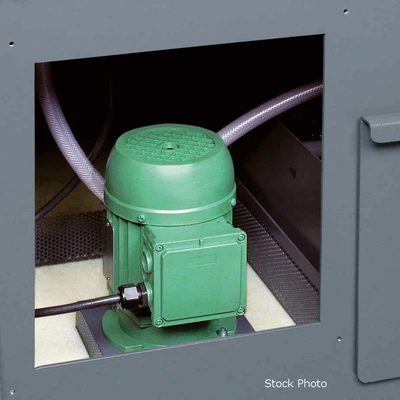

- FLOOD COOLANT WITH ELECTRICAL COOLANT PUMP
- 1 BLADE INCLUDED (370 X 3 X 32 Z=200)

OPTIONAL MACHINE FEATURES -PRICE ON REQUEST
- FOOT PEDAL CONTROL WITH EMERGENCY STOP
- 2ND PNEUMATIC HORIZONTAL OPERATING VISE
- MIST LUBRICATION SYSTEM
- FLIP-OVER MATERIAL STOPS WITH 60" RULER
- R2 RULER EXT FOR OUT FEED ROLLER TABLES
- K40 5' ROLLER TABLE
- HSS OXIDE COATED BLADE (370 X 3 X 32)
- POWER TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
