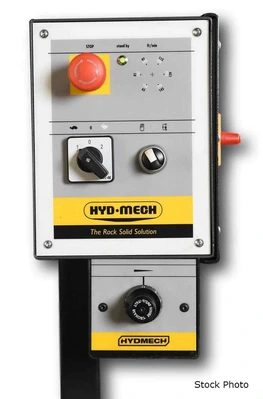

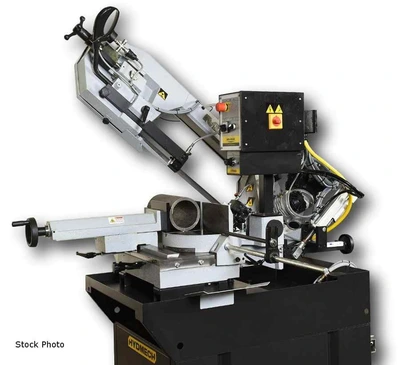

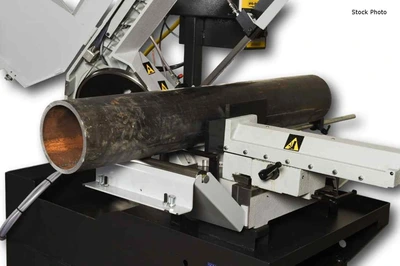

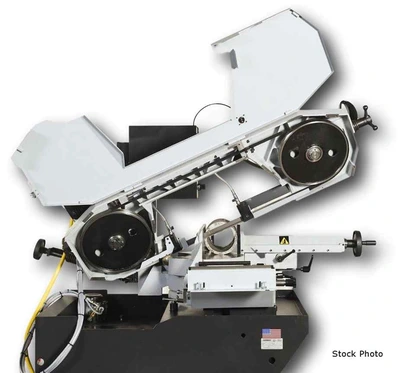

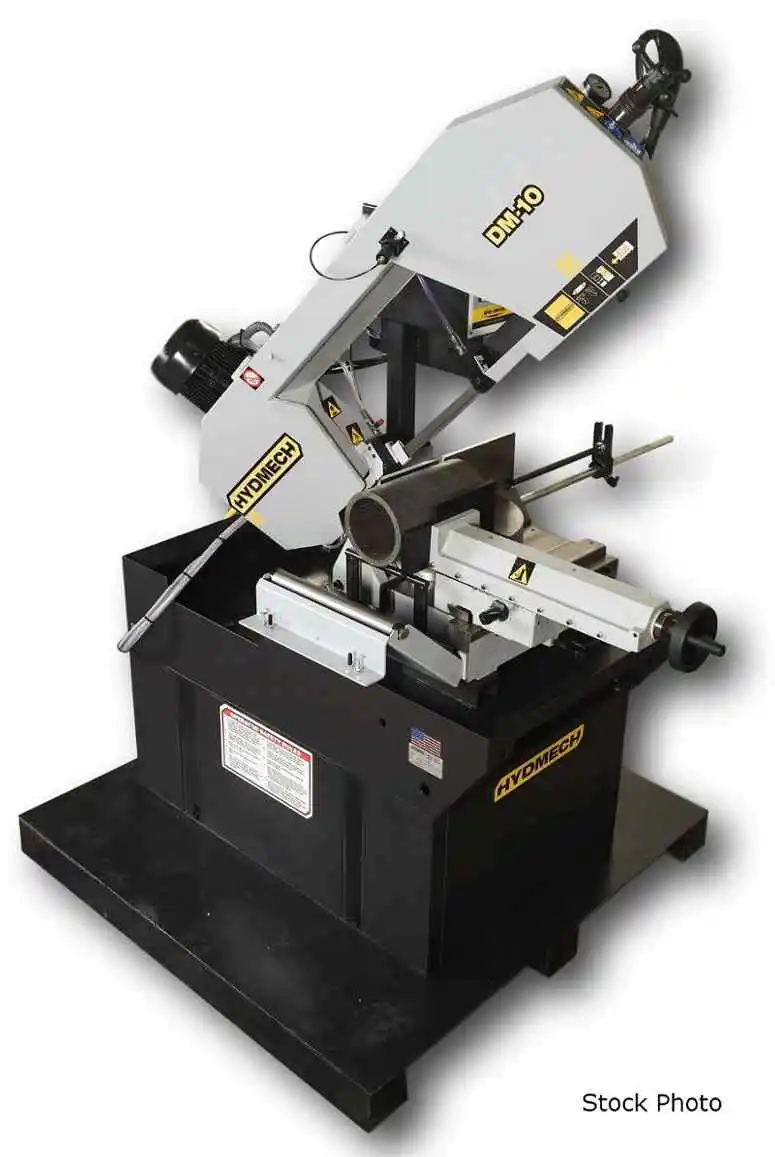

NEW HYDMECH DM-10

HYDMECH (NEW) MODEL DM-10 DOUBLE MITER
BANDSAW

CAPACITY - 90 DEGREES
- 9-1/2" X 11" RECTANGLE, 10" ROUND, 9" SQUARE
CAPACITY - 45 DEGREES - LEFT
- 6-1/4" X 4-1/2" RECT, 5-3/4" ROUND, 4-1/2" SQ
CAPACITY - 30 DEGREES - RIGHT
- 5" X 4-1/2" RECTANGLE, 4" ROUND, 5" SQUARE
CAPACITY - 45 DEGREES - RIGHT
- 8-1/4" X 7" RECTANGLE, 7-1/4" ROUND, 7" SQUARE

1" X 9'8" BLADE
2 BLADE SPEEDS
- 118 SFM
- 236 SFM
480 VOLTS, 3 PHASE
3.5 GALLON COOLANT TANK CAPACITY
34" TABLE HEIGHT

STANDARD MACHINE FEATURES
- MANUALLY-OPERATED, DOUBLE-MITER, EASY-SWING
CAST SAW HEAD
- QUICK-RELEASE CAST-IRON VISE WITH DOVETAIL WAYS
- ROTATING TABLE WITH CUT SLOT THAT MOVES IN
TANDEM WITH SAWING HEAD
- BAND TENSION INDICATOR
- INFINITELY ADJUSTABLE, GRAVITY FEED SAW HEAD
- REPLACEABLE BLADE BRUSH
- SMALL FOOTPRINT
- ROBUST STEEL BASE
- EASY-TO-READ ANGLE SCALE
- ADJUSTABLE GUIDE ARM
- REPLACEABLE CARBIDE GUIDE INSERTS
- TRUE DIRECT DRIVE - NO BELTS OR PULLEYS
- MECHANICAL BLADE TENSIONING
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT
- ADJUSTABLE WORK STOP

OPTIONS AVAILABLE - PRICE ON REQUEST
- MIST LUBRICATION
- SINGLE PHASE-LIMITS USER TO HI BLADE SPEED ONLY
- PNEUMATIC VISE WITH FOOT PEDALS
- K110 5' IN FEED / OUT FEED ROLLER TABLE
- K110 TABLE ADAPTER PLATE
- K110 TABLE 59" R2 WORK STOP
- K110 TABLE SUPPORT STANDS
- TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
