NEW HYDMECH P350

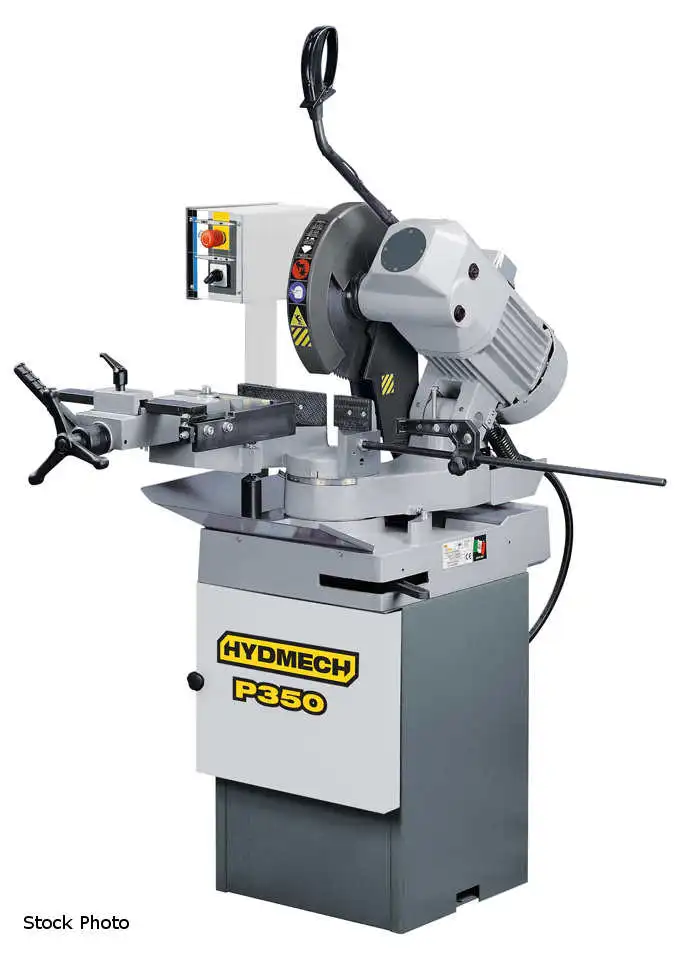

HYDMECH (NEW) MODEL P350 PIVOT-ARM COLD SAW

HOLLOW CAPACITY AT 90 DEGREES
- 4.5" ROUND, 4" SQUARE, 5-1/8" X 3-1/8" RECTANGLE
HOLLOW CAPACITY AT 45 DEGREES - LEFT
- 4" ROUND, 3-1/3" SQUARE, 3.5" X 3-1/3" RECTANGLE
HOLLOW CAPACITY AT 45 DEGREES - RIGHT
- 3" ROUND, 3" SQUARE, 3.5" X 2.5" RECTANGLE

SOLID CAPACITY AT 90 DEGREES
- 2" ROUND, 2" SQUARE, 2" X 2" RECTANGLE
SOLID CAPACITY AT 45 DEGREES - LEFT
- 1.5" ROUND, 1.5" SQUARE, 2" X 1.5" RECTANGLE
SOLID CAPACITY AT 45 DEGREES - RIGHT
- 1.5" ROUND, 1.5" SQUARE, 2" X 1.5" RECTANGLE

14" MAXIMUM BLADE SIZE
12" MINIMUM BLADE SIZE
3 HP BLADE DRIVE
480 VOLT, 3 PHASE
30 AND 60 RPM BLADE SPEEDS

STANDARD MACHINE FEATURES
- MANUALLY OPERATED
- SAFETY SPRING-LOADED START/STOP SWITCH ON HANDLE
- ROBUST SAW HEAD MITERS 45 DEG LEFT AND RIGHT
- SAW BASE INCLUDED
- MOVEMENT OF BOTH HEAD AND VISE TO PERMIT
SLOTTING OR LENGTHWISE CUTS
- VISE QUICK CLAMP AND RELEASE LEVER
- ADJUSTABLE MANUAL VISE WITH ANTI-BURR CLAMP
CLAMPS BOTH SIDES OF THE CUT
- MATERIAL WORK STOP ROD
- FLOOD COOLANT WITH ELECTRICAL COOLANT PUMP
- 1 BLADE INCLUDED (350 X 2.5 X 32 Z=180)

OPTIONS AVAILABLE - PRICE ON REQUEST
- MATERIAL STOP WITH RULER

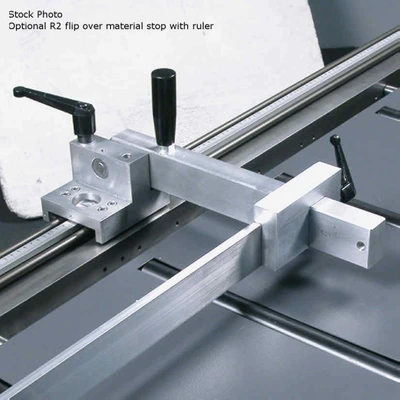

- FLIP-OVER MATERIAL STOPS WITH 60" RULER
- HSS OXIDE COATED BLADE (350 X 2.5 X 32)

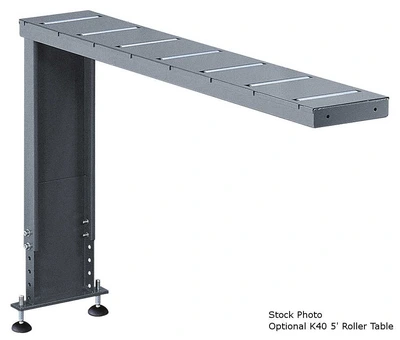

- K40 5' ROLLER TABLE
- K40 5' ROLLER TABLE ADAPTER
- K40 5' ROLLER TABLE SUPPORT STANDS
- R2 RULER EXTENSIONS FOR OUT FEED ROLLER TABLES
- POWER TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
