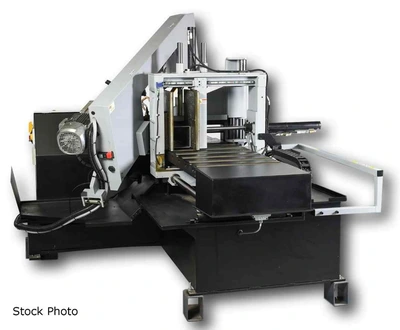

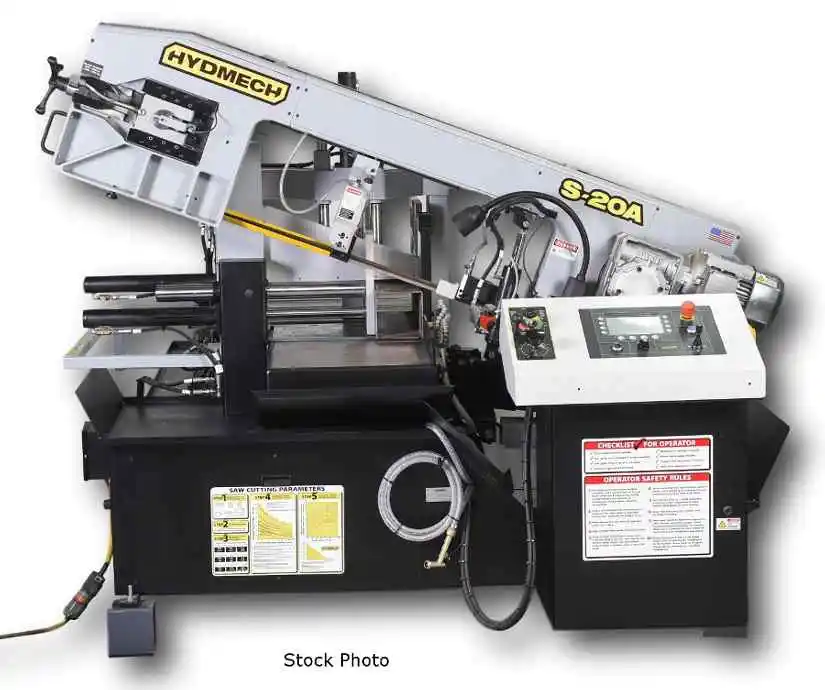

NEW HYDMECH S-20A

HYDMECH (NEW) MODEL S-20A AUTOMATIC PIVOT-STYLE
BANDSAW

CAPACITY AT 90 DEGREES
- 13" X 18" RECTANGLE, 13" ROUND
CAPACITY AT 45 DEGREES
- 13" X 10.75" RECTANGLE, 12" ROUND
CAPACITY AT 30 DEGREES
* 13" X 7.75" RECTANGLE, 8.5" ROUND

1" X 14' 10" BLADE
5 HP, 3 PHASE BLADE DRIVE
480 VOLTS
75 - 350 SFM BLADE SPEED
12 GALLON COOLANT TANK
5,000 LBS WORK LOAD
31" TABLE HEIGHT

STANDARD MACHINE FEATURES
- EASY-SWING HEAVY-DUTY CAST IRON SAW HEAD
- UP TO 27" AUTO MULTI-INDEXING IN 1 STROKE
- BALL SCREW AND STEPPER MOTOR
- TRUE DIRECT DRIVE BLADE - NO BELTS / PULLEYS
- ON-DEMAND HYDRAULICS SAVE ENERGY
- BLADE CHAMBER SEPARATES MATERIAL FROM CUT PART
- CAST IRON BAND WHEELS

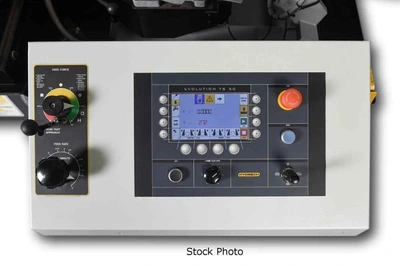

- TOUCH SCREEN PLC - 100 JOBS, 20 IN QUEUE
- REPLACABLE BLADE BRUSH
- ROBUST STEEL BASE
- EASY-TO-READ ANGLE SCALE WITH ANGLE LOCKING
- ADJUSTABLE CAST IRON GUIDE ARMS ON LINEAR RAILS
- EASY-ACCESS ELECTRICAL PANEL
- FULL CAPACITY, FULL STROKE HYDRAULIC VISES
- OUT-OF-STOCK SWITCH
- MECHANICAL BLADE TENSIONING WITH DRO
- HYDRAULIC POSITIVE DOWN FEED
- PRE-SET REPLACEABLE CARBIDE GUIDE INSERTS
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH-DOWN HOSE
- LASER LIGHT
- WORK LIGHT
- VARIABLE VISE PRESSURE

OPTIONS AVAILABLE - PRICE ON REQUEST
- FULL-CAPACITY HYDRAULIC OVERHEAD BUNDLING
- REMOTE CONSOLE WITH 10' CORD
- MIST LUBRICATION
- IDLER CONVEYORS
- POWERED CONVEYORS
- TRANSFORMER FOR 208 OR 240 VOLTS

THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
