NEW HYDMECH V-18-45

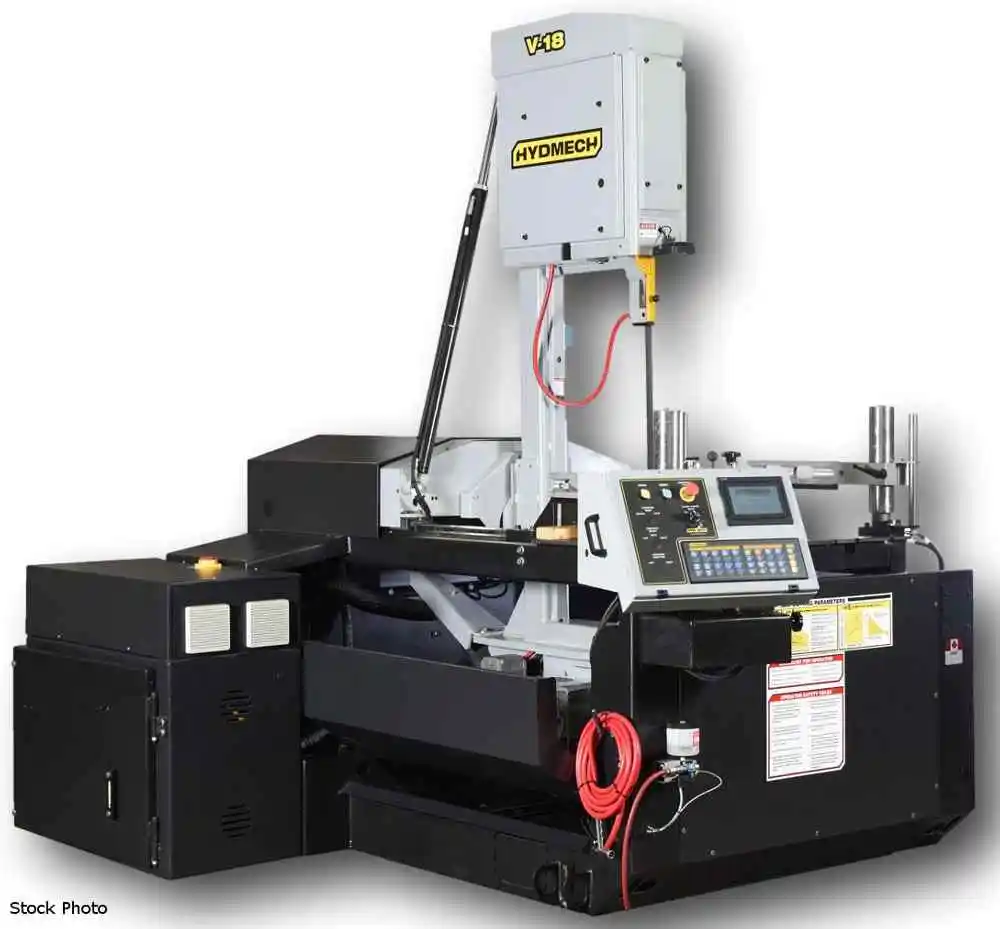

HYDMECH (NEW) MODEL V-18-45 VERTICAL BANDSAW

CAPACITY AT 90 DEGREES
- 18" X 31" RECTANGLE
- 18" X 29" RECTANGLE WITH 3 DEGREE CANTED HEAD
- 18" X 12" RECT. W/OPTIONAL OVERHEAD BUNDLING
- 12" ROUND
- 18" ROUND W/OPTIONAL TALL SQUARE VISE INSERTS

CAPACITY AT 45 DEGREES
- 18" X 21" RECTANGLE
- 18" X 20" RECTANGLE WITH 45 DEGREE CANTED HEAD
- 18" X 12" RECT. W/OPTIONAL OVERHEAD BUNDLING
- 12" ROUND

1.25" X 16' 11" BLADE
7.5 HP BLADE DRIVE
480 VOLTS, 3 PHASE
65 - 385 SFM BLADE SPEED
55 GALLON COOLANT TANK CAPACITY
8 GALLON HYDRAULIC TANK CAPACITY
44" TABLE HEIGHT
AUTOMATIC PROGRAMMABLE MITERING
- 45 DEGREES LEFT TO 45 DEGREES RIGHT

STANDARD MACHINE FEATURES

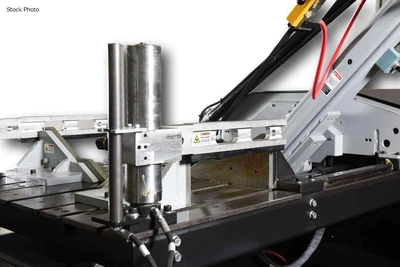

- TWO FULL STROKING HYDRAULIC VISES

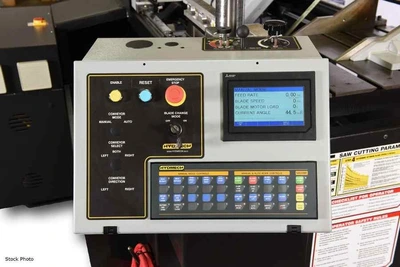

- SELECT LEFT OR RIGHT SIDE CONTROL PANEL

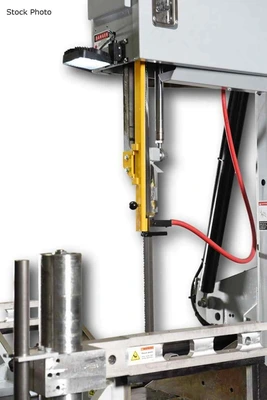

- POWERED MOVABLE GUIDE ARM
- TRUE DIRECT DRIVE- NO BELTS/PULLEYS
- HYDRAULIC POSITIVE DOWN FEED
- CAST IRON BAND WHEELS
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- EASY-ACCESS ELECTRICAL PANEL AND HYDRAULICS
- BLADE BREAKAGE SWITCH
- HYDRAULIC BAND TENSIONING WITH DRO
- REPLACEABLE CARBIDE GUIDE INSERTS
- 90 DEGREE STRAIGHT HEAD
- 2 HP HYDRAULIC PUMP PROVIDES SYSTEM PRESSURE
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH-DOWN HOSE
- LASER LIGHT
- WORK LIGHT
- VARIABLE VISE PRESSURE

OPTIONS AVAILABLE - PRICE ON REQUEST
- FIXED 3 DEGREE CANTED HEAD
- CHIP BUCKET
- FULL CAPACITY HYDRAULIC OVERHEAD BUNDLING
- MIST LUBRICATION SYSTEM
- POP-UP LIFT ROLLERS
- DRAG CHAIN CHIP CONVEYOR
- TALL SQUARE VISE INSERTS
- HYDRAULIC CHIP CONVEYOR
- IDLER CONVEYORS
- POWER CONVEYORS
- TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
