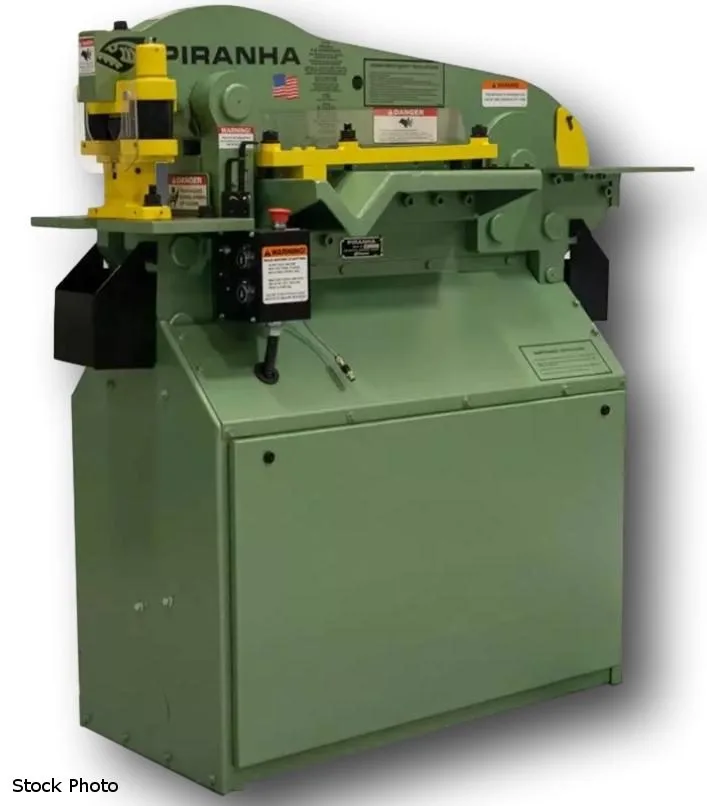

NEW PIRANHA P-50

PIRANHA (NEW) MODEL P-50 SINGLE OPERATOR
IRONWORKER

5" THROAT
11-1/2" OPEN HEIGHT
7-3/4" CLOSED HEIGHT WITHOUT DIE BLOCK
3-3/4" STROKE
8" X 16" PLATEN TABLE

PUNCH - 50 TON CAPACITY
- 13/16" DIAMETER HOLE THROUGH 3/4" MATERIAL
- 3" DIAMETER HOLE THROUGH 3/16" MATERIAL
PLATE SHEAR - 13" LONG
- 3/4" X 6"
- 1/2" X 10"
- 3/8" X 12"
- 1/4" X 13"
ANGLE SHEAR
- 3" X 3" X 3/8"
- 3-1/2" X 3-1/2" X 5/16"
COPER NOTCHER - 40 TON CAPACITY
- 2-1/4" X 3" X 1/4"
PUNCH END
- 30 SPM @ 1/2"

42" WORK STATION HEIGHT (APPROX)
HYDRAULICS
- 3.6 PUMP GPM
- 2800 SYSTEM R/V PSI
12 GALLON FLUID CAPACITY
3 HP MOTOR, 230/460 VOLTS, 3 PHASE, 1800 RPM

STANDARD EQUIPMENT
- PUNCH STATION
- ANGLE SHEAR
- FLAT SHEAR STATION
- COPER-NOTCHER STATION
- URETHANE STRIPPER ASSEMBLY
- HOLD DOWN ASSEMBLY
- ELECTRIC FOOT SWITCH
- ELECTRIC LIMIT SWITCHES

OPTIONS AVAILABLE - PRICE ON REQUEST
- PIPE/TUBE NOTCHING
- CHANNEL DIE BLOCK
- BENDING ATTACHMENTS
- 28XX PUNCH ATTACHMENT
- QUICKSET GAUGING TABLES
- BACKGAUGES
- 1-1/2" OVERSIZE PUNCH ATTACHMENT
- ROLLER FEED TABLES
Power: 230/460 (3-Phase)
