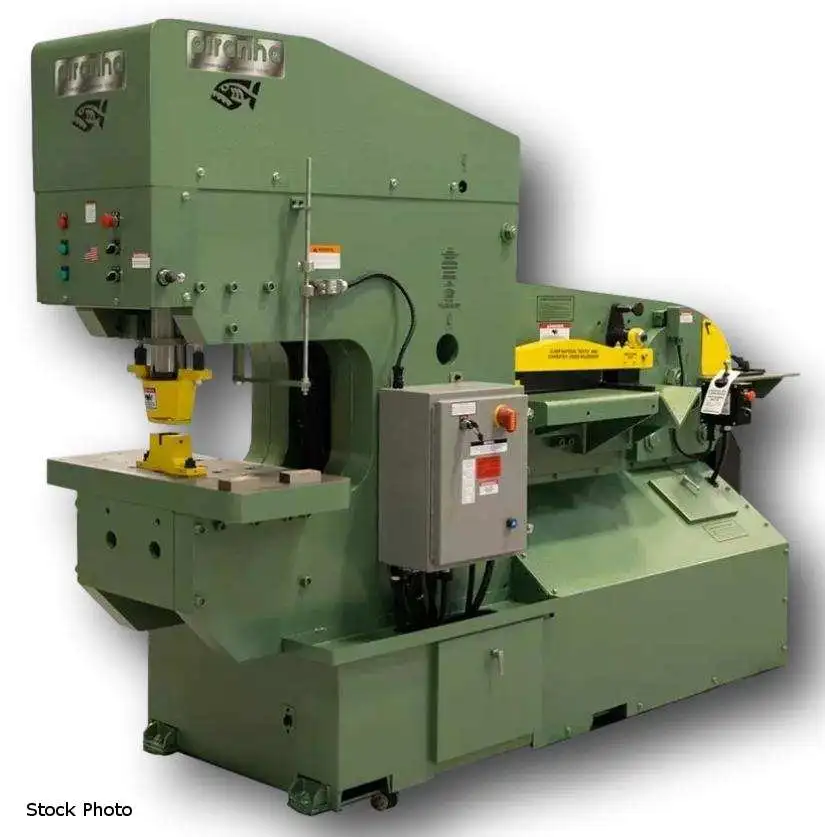

NEW PIRANHA PII-140

PIRANHA (NEW) MODEL PII-140 DUAL-OPERATOR
IRONWORKER

20.5" THROAT DEPTH
14" OPEN HEIGHT
7-3/4" CLOSED HEIGHT WITHOUT DIE BLOCK
7" STROKE LENGTH
16" X 36" PLATEN TABLE SIZE
PUNCH - 140 TON CAPACITY
- 1-3/8" DIAMETER HOLE THROUGH 1-1/4" MATERIAL
- 5" DIAMETER HOLE THROUGH 5/16" MATERIAL
PLATE SHEAR - 20-1/2" LONG
- 1" X 14"
- 3/4" X 18"
- 1/2" X 20"
ANGLE SHEAR
- 6" X 6" X 5/8"
BAR SHEAR
- 1/2" TO 2" ROUND
- 1/2" TO 1-3/8" SQUARE
COPER NOTCHER - 95 TONS
- 4" X 6" X 3/8"
PUNCH END
- 24 SPI @ 1"

44" WORK STATION HEIGHT (APPROX)
HYDRAULICS
- 15 PUMP GPM
- 3500 SYSTEM R/V PSI
40 GALLON FLUID CAPACITY
20 HP, 230/460 VOLTS, 3 PHASE, 1800 RPM

RATED ON MILD STEEL (60,000) PSI TENSILE STRENGTH

STANDARD EQUIPMENT
- COMPLETE PUNCHING ATTACHMENT WITH STRIPPER
- 5 PUNCH AND DIE SETS
- AUTOMATIC URETHANE HOLD DOWNS ON
PLATE SHEAR
ANGLE SHEAR
BAR SHEAR
- FRONT AND REAR 2-POSITION JOY STICK CONTROLS
- FRONT AND REAR REMOTE ELECTRIC FOOT SWITCHES
- FRONT LIMIT SWITCH STROKE CONTROL
- SET OF ROUND BAR KNIVES (2 WAY)
- SET OF 16-5/8" PLATE SHEAR KNIVES (4 WAY)
- EXTRA BLANK KNIFE TO EXTEND SHEAR TO 20.5"
- SET OF COPER KNIVES (2-WAY TOP, 4-WAY BOTTOM)
- SET OF ANGLE SHEAR KNIVES (2-WAY TOP,4-WAY BOT)
- CHIP BUCKETS (COPER END)
- EXTRA OIL FILTER
- COUPLING WRENCH
- INTEGRAL LIFTING LUG FOR INSTANT PORTABILITY

OPTIONS AVAILABLE - PRICE ON REQUEST
- SET OF 20-1/2" PLATE SHEAR KNIVES INSTEAD OF
ROUND BAR KNIVES 16-5/8" PLATE SHEAR KNIVES
- PIPE/TUBE NOTCHING
- CHANNEL DIE BLOCK
- BENDING ATTACHMENTS
- 28XX PUNCH ATTACHMENT
- PRESS BRAKE TOOLING HOLDERS
- QUICKSET GAUGING TABLES
- CHANNEL SHEAR
- BACKGAUGES
- ROLLER FEED TABLES
