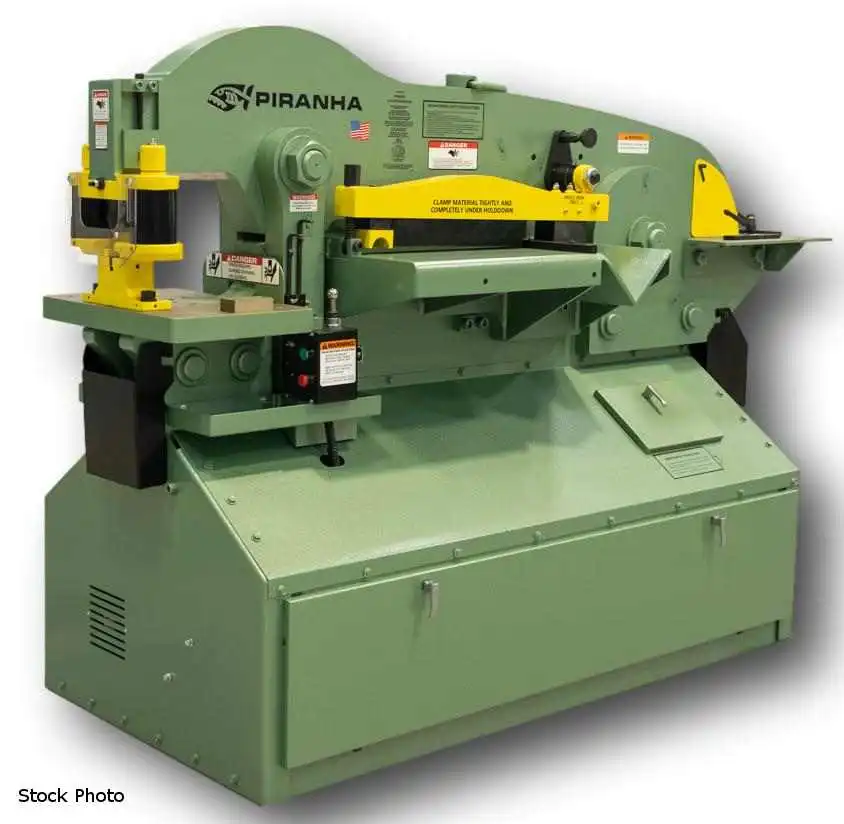

NEW PIRANHA P-140

PIRANHA (NEW) MODEL P-140 SINGLE-OPERATOR
IRONWORKER

12" THROAT DEPTH
15-1/2" OPEN HEIGHT
10-1/4" CLOSED HEIGHT WITHOUT DIE BLOCK
5-1/4" STROKE LENGTH
14-1/2" X 21" PLATEN TABLE SIZE

PUNCH - 140 TON CAPACITY
- 1-3/4" DIAMETER HOLE THROUGH 1" MATERIAL
- 5" DIAMETER HOLE THROUGH 5/16" MATERIAL
PLATE SHEAR - 20-1/2" LONG
- 1" X 14"
- 3/4" X 18"
- 1/2" X 20"
ANGLE SHEAR
- 6" X 6" X 5/8"
BAR SHEAR
- 1/2" TO 2" ROUND
- 1/2" TO 1-3/8" SQUARE
COPER NOTCHER - 95 TON CAPACITY
- 4" X 6" X 3/8"
PUNCH END
- 30 SPM @ 3/4"

44" WORK STATION HEIGHT (APPROX)
HYDRAULICS
- 15 PUMP GPM
- 3500 SYSTEM R/V PSI
25 GALLON FLUID CAPACITY
15 HP, 230/460 VOLTS, 3 PHASE, 1800 RPM

RATED ON MILD STEEL (60,000) PSI TENSILE STRENGTH

STANDARD EQUIPMENT
- PUNCHING ATTACHMENT W/SPLIT DOVE TAIL MOUNTING
- 5 PUNCH AND DIE SETS
- AUTOMATIC URETHANE HOLD DOWNS ON
PUNCH STRIPPER
ANGLE SHEARS
PLATE SHEAR
BAR SHEAR
- FRONT AND REAR 5-POSITION JOY STICK CONTROLS
JOG UP AND DOWN
FAST UP AND DOWN
NEUTRAL
- REMOTE ELECTRIC FOOT SWITCH
- LIMIT SWITCHES
CAN BE SET FOR STROKE CONTROL W/FOOT CONTROL
- SET OF ROUND BAR KNIVES (2 WAY)
- SET OF 16-5/8" PLATE SHEAR KNIVES (4 WAY)
- EXTRA BLANK KNIFE TO EXTEND SHEAR TO 20.5"
- SET OF ANGLE KNIVES (8-WAY TOP, 4-WAY BOTTOM)
- SET OF COPER KNIVES (2-WAY TOP, 4-WAY BOTTOM)
- CHIP BUCKETS (2 EACH)
- EXTRA OIL FILTER
- COUPLING WRENCH
- 3/8" ALLEN WRENCH
- INTEGRAL LIFTING LUG FOR INSTANT PORTABILITY

OPTIONS AVAILABLE - PRICE ON REQUEST
- SET OF 20-1/2" PLATE SHEAR KNIVES INSTEAD OF
ROUND BAR KNIVES 16-5/8" PLATE SHEAR KNIVES
- PIPE/TUBE NOTCHING
- CHANNEL DIE BLOCK
- BENDING ATTACHMENTS
- 28XX PUNCH ATTACHMENT
- PRESS BRAKE TOOLING HOLDERS
- QUICKSET GAUGING TABLES
- CHANNEL SHEAR
- BACKGAUGES
- 1-1/2" OVERSIZE PUNCH ATTACHMENT
- ROLLER FEED TABLES
Power: 230/460 (3-Phase)
