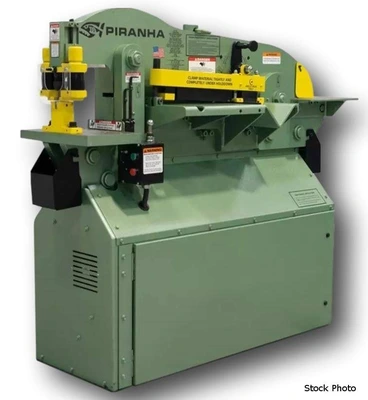

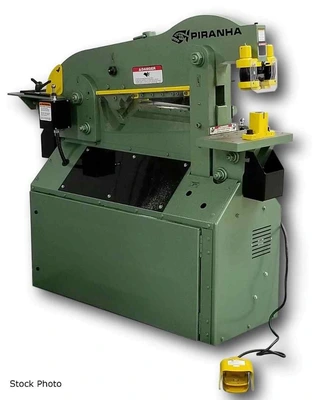

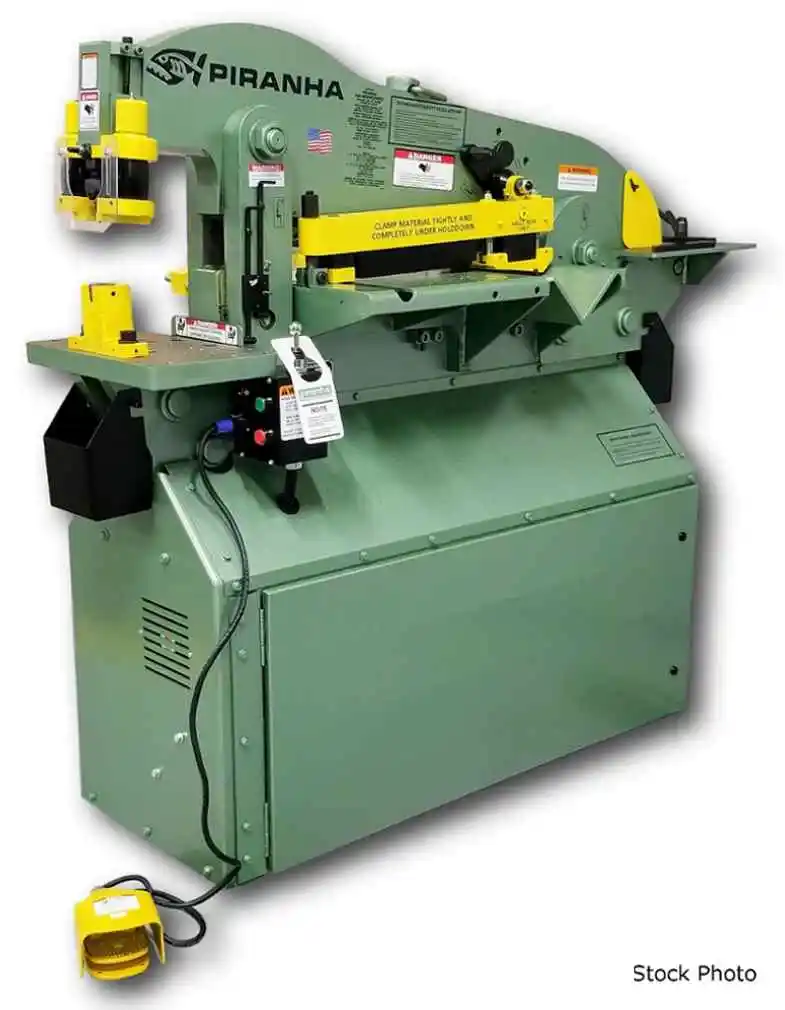

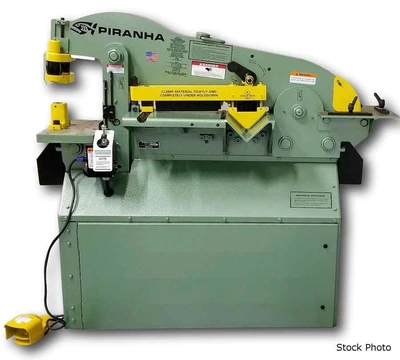

NEW PIRANHA P-65

PIRANHA (NEW) MODEL P-65 IRONWORKER

8" THROAT
13-1/2" OPEN HEIGHT
9-1/4" CLOSED HEIGHT (WITHOUT DIE BLOCK)
4-1/4" STROKE
10" X 17" PLATEN TABLE

PUNCH - 65 TON CAPACITY
- 1-1/16" DIAMETER HOLE THROUGH 3/4" MATERIAL
- 5" DIAMETER HOLE THROUGH 1/8" MATERIAL
PLATE SHEAR - 15-1/2" LONG
- 3/4" X 10"
- 5/8" X 15"
ANGLE SHEAR
- 5" X 5" X 3/8"
BAR SHEAR
- 1/4" TO 1-1/2" ROUND
- 1/2" TO 1" SQUARE
COPER NOTCHER - 56 TON CAPACITY
- 2-3/4" X 4" X 1/4"
PUNCH END
- 30 SPM @ 3/4"

42" WORK STATION HEIGHT (APPROX)
HYDRAULICS
7.5 PUMP GPM
3000 SYSTEM R/V PSI
20 GALLON FLUID CAPACITY
7.5 HP, 230/460 VOLTS, 3 PHASE, 1800 RPM

RATED ON MILD STEEL (60,000) PSI TENSILE STRENGTH

STANDARD EQUIPMENT
- PUNCHING ATTACHMENT W/SPLIT DOVE TAIL MOUNTING
- 5 PUNCH AND DIE SETS
- AUTOMATIC URETHANE HOLD DOWNS ON
PUNCH STRIPPER
ANGLE SHEAR
PLATE SHEAR
BAR SHEAR
- FRONT AND REAR 5-POSITION JOY STICK CONTROLS
JOG UP AND DOWN
FAST UP AND DOWN
NEUTRAL
- REMOTE ELECTRIC FOOT SWITCH
- LIMIT SWITCHES
CAN BE SET FOR STROKE CONTROL W/FOOT CONTROL
- SET OF ROUND BAR KNIVES (2 WAY)
- SET OF 12-1/8" PLATE SHEAR KNIVES (4 WAY)
- SET OF ANGLE KNIVES (8-WAY TOP, 4-WAY BOTTOM)
- SET OF COPER KNIVES (2-WAY TOP, 4-WAY BOTTOM)
- CHIP BUCKETS (2 EACH)
- EXTRA OIL FILTER
- COUPLING WRENCH
- 3/8" ALLEN WRENCH
- INTEGRAL LIFTING LUG FOR INSTANT PORTABILITY

OPTIONS AVAILABLE - PRICE ON REQUEST
- PIPE/TUBE NOTCHING
- CHANNEL DIE BLOCK
- BENDING ATTACHMENTS
- 28XX PUNCH ATTACHMENT
- PRESS BRAKE TOOLING HOLDERS
- QUICKSET GAUGING TABLES
- CHANNEL SHEAR
- BACKGAUGES
- 1-1/2" OVERSIZE PUNCH ATTACHMENT
- ROLLER FEED TABLES
Power: 230/460 (3-Phase)
