| Dimensions | 28 X 26 X 59 | 28 X 26 X 59 |
| Weight | 480 | 480 |

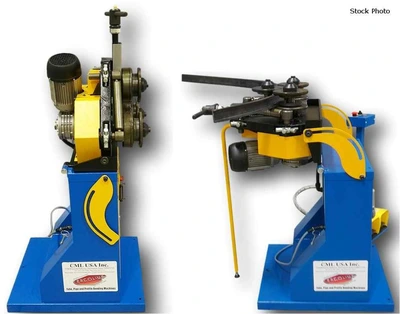

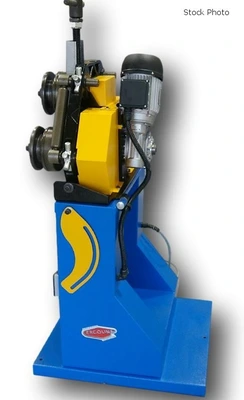

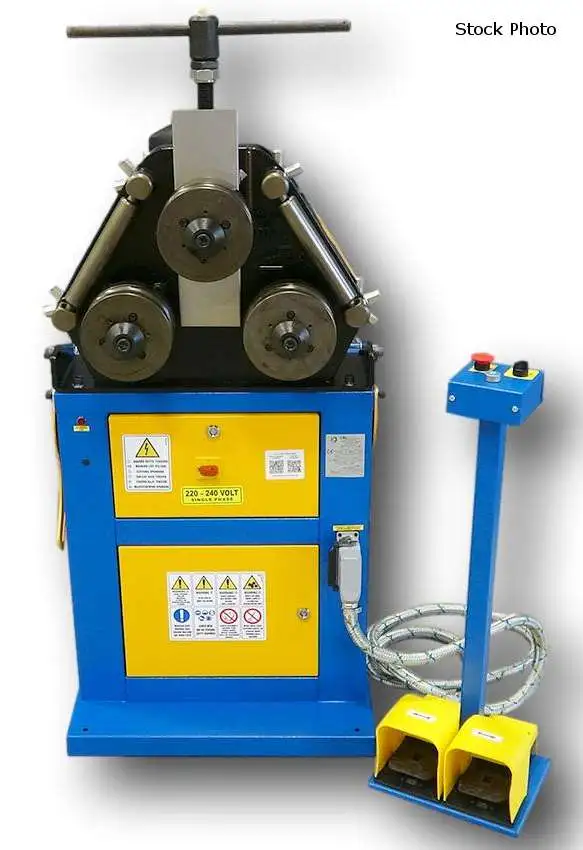

ERCOLINA (NEW) MODEL CE35 ANGLE ROLL
40 MM ROLL SHAFT DIAMETER
MANUAL CENTER ROLL POSITIONING
1-1/2" SCH. 40 PIPE CAPACITY
1-1/2" X 1-1/2" X 1/4" ANGLE CAPACITY
6-5/8" O.DIA. UNIVERSAL TOOLING INCLUDED
6-12 RPM SHAFT SPEED
11-3/8" DISTANCE BETWEEN SHAFTS

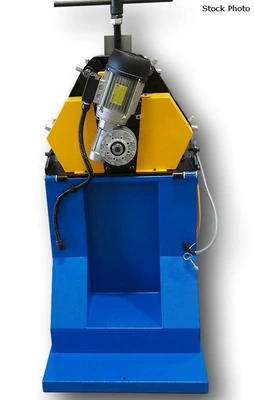

3/4 HP DRIVE MOTOR (INTO PLANETARY)

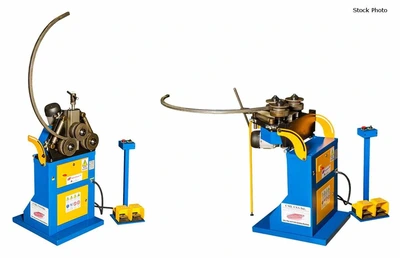

HORIZONTAL OR VERTICAL OPERATING POSITION
CONTROL TOWER
220 V 1 PHASE OPERATING VOLTAGE
FEATURES
- BENDING SPEEDS 20% FASTER THAN COMPETITIVE
MACHINES

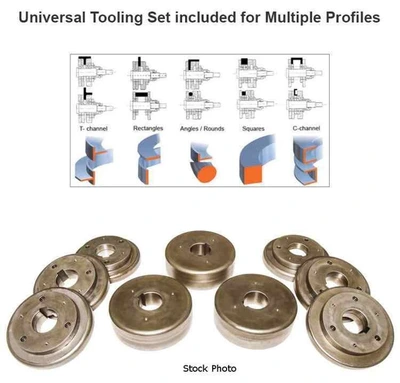

- UNIVERSAL TOOLING SET
- FORGED ROLL SHAFTS PRECISION GROUND AND FITTED
FOR MAXIMUM PERFORMANCE AND MINIMAL DEFLECTION
- HEAVY DUTY STRUCTURE AND RIGID COMPONENTS
OR HIGH SECTION MODULUS RATINGS
- REINFORCED ENGINEERED MAINFRAME DESIGN
PROVEN TO OUTPERFORM COMPETITIVE MODELS
- PATENTED BY ERCOLINA SIMULTANEOUS DOWNFEED
AND ROLL MOVEMENT TO MINIMIZE DEFORMATION
- PROGRAMMABLE TOUCH PAD CONTROLS WITH
DIGITAL CENTER ROLL POSITIONING DISPLAY
- REMOTE PENDENT WITH LOW VOLTAGE CONTROLS AND
FOOT PEDAL SWITCH
- THREADED ROLL SHAFTS WITH MICROMETRIC FLANGE
ADJUSTMENT HELPS ELIMINATE SPACER USAGE
- INLINE DIRECT DRIVE ROLL SHAFT SYSTEM
OPTIONS AVAILABLE - PRICE ON REQUEST
- ANTI-TWIST DEVICE
- SMALL RADIUS TOOLING
- SPRAY LUBRICANT
- PIPE AND TUBE TOOLING
- RADIUS AND DEGREE MEASURING KIT
Power: 220 (Single)
