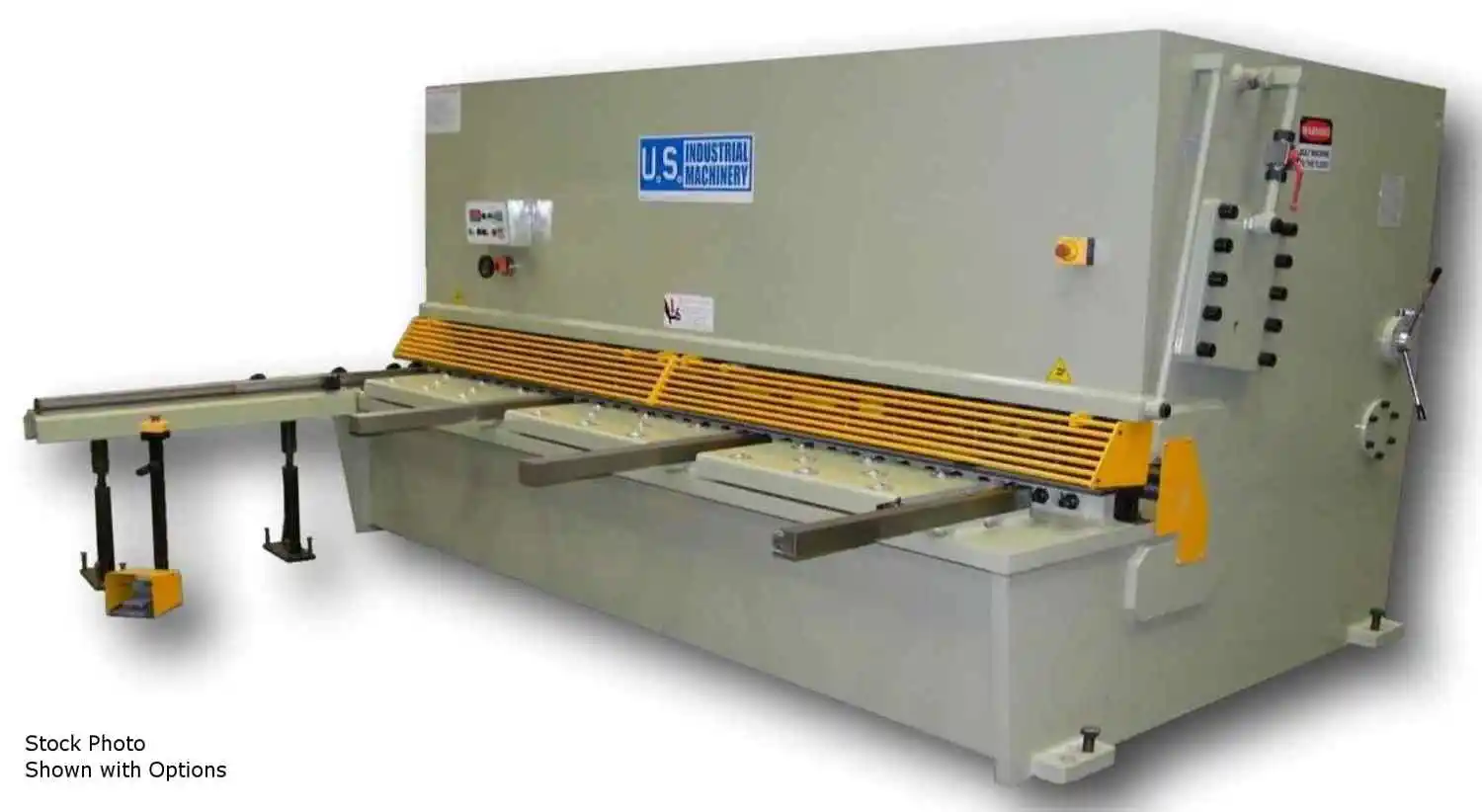

NEW US INDUSTRIAL US13375

US INDUSTRIAL (NEW) MODEL US13375 HYDRAULIC
SQUARING SHEAR

SPECIFICATIONS
- 157" SHEET SIZE
- 3/8" MILD STEEL @ 65,000 PSI SHEARING CAPACITY
- 1 DEGREE 30' SHEAR ANGLE
- 8 STROKES PER MINUTE - NO LOAD
- 3" THROAT DEPTH
- 0.75" - 36" ADJUSTMENT RANGE OF BACK GAUGE
- 113 GALLON HYDRAULIC OIL CAPACITY
- 20 HP MAIN MOTOR

STANDARD EQUIPMENT
- SQUARING ARM
- HIGH CARBON, HIGH CHROME SHEAR BLADES
- BALL TRANSFERS ON EACH TABLE SEGMENT
- MANUAL QUICK CHANGE BLADE GAP ADJUSTMENT
- SQUARING ARM, 39.5" FROM BLADE TO END
- STROKE COUNTER
- FRONT-CONTROLLED POWER BACK GAUGE
- BLADE GUARD, MICRO SWITCH PROTECTED
- HYDRAULIC, ELECTRICAL OVERLOAD PROTECTION
- AUTOMATIC SWING-UP ON BACK GAUGE
- 6 BOLT-ON TABLE SEGMENTS
- HOLD-DOWNS FACED WITH ANTI-MAR NEOPRENE
- SWING BEAM DESIGN
- PRESSURE SENSING HOLD DOWNS
- ELECTRIC STROKE ADJUSTMENT
- OPERATOR CONTROL CONSOLE
- SHADOW LIGHTING
- LOW NOISE GEAR PUMP
- 3 SUPPORT ARMS

OPTIONS INCLUDED
- MATERIAL DROP/SUPPORT CHUTE

OPTIONS AVAILABLE - PRICE ON REQUEST
- 3-AXIS CNC PROGRAMMABLE BACK GAUGE
TOUCH SCREEN OPERATED
CONTROLS BG DEPTH, BLADE GAP STROKE LENGTH
200 PROGRAM STORAGE CAPACITY-20 STEPS/PROGRAM
OPERATES IN MANUAL OR AUTOMATIC MODE
- PNEUMATIC SHEET SUPPORT
- 6, 8, OR 10 FOOT SQUARING ARM
- 48" BACK GAUGE - NO SWING UP
- TRAINING

HYDRAULIC OIL IS NOT INCLUDED
