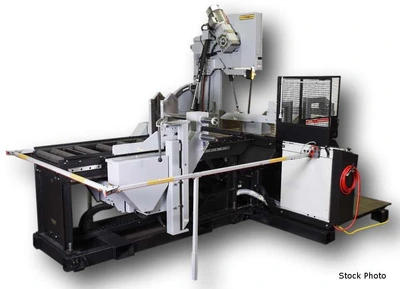

NEW HYDMECH V-25APC

HYDMECH (NEW) MODEL V-25APC SEMI-AUTO
VERTICAL MITERING BANDSAW

CAPACITY AT 90 DEGREES
- 30" X 25" RECTANGLE, 25" SQUARE OR ROUND
CAPACITY AT 45 DEGREES
- 21" X 25" RECTANGLE, 21" SQUARE OR ROUND
CAPACITY AT 60 DEGREES - RIGHT
- 14.5" X 25" RECTANGLE, 14.5" SQUARE OR ROUND
CAPACITY AT 60 DEGREES - LEFT
- 13.5" X 25" RECTANGLE, 13.5" SQUARE OR ROUND

1.5" X 21' 1/2" BLADE
10 HP BLADE DRIVE
480 VOLTS, 3 PHASE
75 - 350 SFM BLADE SPEED
7 GALLON HYDRAULIC TANK CAPACITY
38 GALLON COOLANT TANK CAPACITY
44" TABLE HEIGHT
60 DEGREES LEFT TO 60 DEGREES RIGHT MITERING

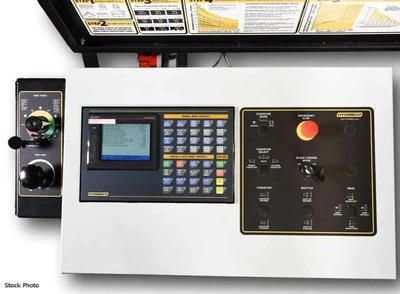

8.5" MITSUBISHI PLC COLOR TOUCH SCREEN CONTROL
- PROGRAM UP TO 1,000 JOBS WITH 20 IN QUEUE
- USER-FRIENDLY, INTERACTIVE PROGRAMMING

STANDARD MACHINE FEATURES
- 6 DEGREE CANTED HEAD
- 60" BAR FEED, LEFT SIDE
- UP TO 60" AUTOMATIC MULTI-INDEXING IN 1 STROKE
AUTOMATIC KERF COMPENSATION
POWERED BY RACK AND PINION SERVO DRIVE
- AUTO MITERING WITH "GO TO" ANGLE FUNCTIONALITY
- HYDRAULICALLY POWERED PROGRAMMABLE GUIDE ARM
- ROBUST STEEL BASE
- HYDRAULIC HEAD TILT
- CAST IRON BAND WHEELS
- 2 FULL STROKING HYDRAULIC VISES
- TRUE DIRECT BLADE DRIVE - NO BELTS/PULLEYS
- BLADE CHAMBER SEPARATES MATERIAL AND CUT PART
- HYDRAULIC CHIP CONVEYOR

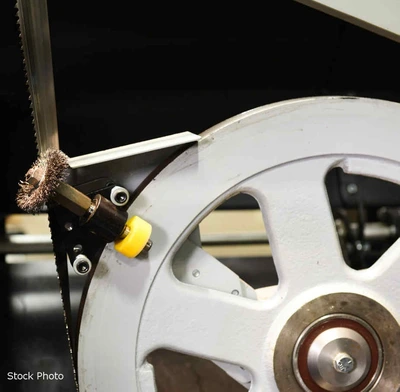

- REPLACEABLE BLADE BRUSH
- OUT-OF-STOCK SWITCH
- BLADE BREAKAGE SWITCH
- EASY-ACCESS ELECTRICAL PANEL AND HYDRAULICS
- POP-UP FEED ROLLER - OPPOSITE BAR FEED
- HYDRAULIC BAND TENSIONING WITH DRO
- REPLACEABLE CARBIDE GUIDE INSERTS
- 3 HP HYDRAULIC PUMP FOR SYSTEM PRESSURE
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH DOWN HOSE
- LASER LIGHT
- WORK LIGHT
- VARIABLE VISE PRESSURE

OPTIONS AVAILABLE - PRICE ON REQUEST
- CHIP BUCKET WITH PUMP
- HYDRAULIC OVERHEAD BUNDLING
- MIST LUBRICATION
- TALL SQUARE VISE INSERTS
- OUTFEED VISE
- RIGHT SIDE INFEED SHUTTLE
- 10' SHUTTLE INFEED
- BRIDGE/INTERFACE BRACKET
- POWERED BRIDGE/INTERFACE BRACKET
- IDLER CONVEYORS
- POWERED CONVEYORS
- EXTERNAL POWER TRANSFORMER FOR 208 OR 240 VOLTS

- THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
