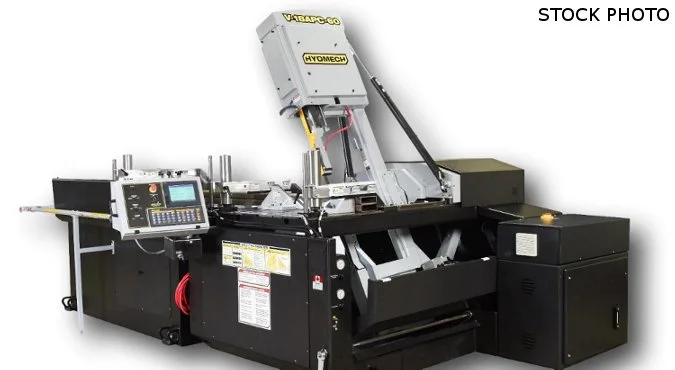

NEW HYDMECH V-18APC-60

HYDMECH (NEW) MODEL V-18APC-60 AUTOMATIC
VERTICAL MITERING BANDSAW

CAPACITY
- AT 90 DEGREES - 18" X 22" RECTANGLE, 18" ROUND
- AT 45 DEGREES - 18" X 14.75" RECT, 13" ROUND
- AT 60 DEGREES - 18" X 9" RECTANGLE, 9" ROUND
CAPACITY WITH OVERHEAD BUNDLING
- AT 90 DEGREES - 18" X 12" RECTANGLE, 12" ROUND
- AT 45 DEGREES - 18" X 12" RECTANGLE, 12" ROUND
- AT 60 DEGREES - 18" X 6" RECTANGLE, 6" ROUND

1.25" X 16 '11" BLADE
7.5 HP BLADE DRIVE
480 VOLTS, 3 PHASE
65 - 385 SFM BLADE SPEED
8 GALLON HYDRAULIC TANK CAPACITY
30 GALLON COOLANT TANK CAPACITY
44" TABLE HEIGHT
60 DEGREES LEFT TO 60 DEGREES RIGHT MITERING

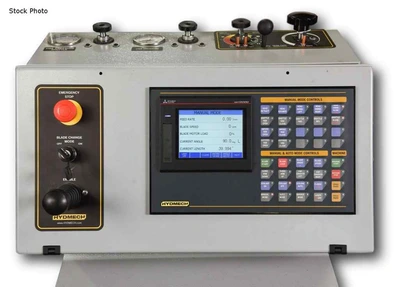

8.5" MITSUBISHI PLC COLOR TOUCH SCREEN CONTROL
- PROGRAM UP TO 1,000 JOBS WITH 20 IN QUEUE
- USER-FRIENDLY, INTERACTIVE PROGRAMMING

STANDARD MACHINE FEATURES
- AUTOMATIC PROGRAMMABLE MITERING WITH "GO TO"
ANGLE FUNCTIONALITY - 60 DEGREES LEFT TO 60 RIGHT

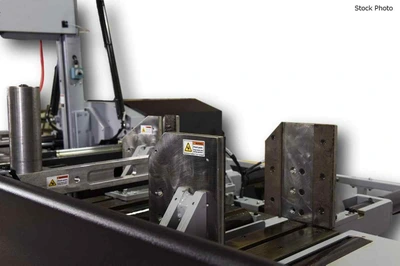

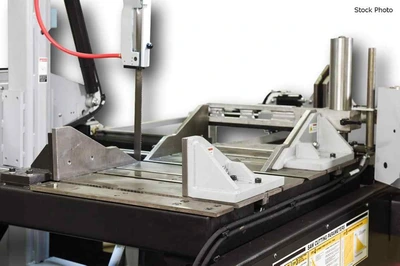

- 4 FULL STROKING HYDRAULIC VISES
12" SHUTTLE
6" MAIN
6" OUTBOARD
12" SQUARING VISE
- UP TO 40" AUTO MULTI-INDEXING IN 1 STROKE
- POWERED MOVABLE GUIDE ARM
- HYDRAULIC OVERHEAD BUNDLING
- TRUE DIRECT DRIVE- NO BELTS / PULLEYS
- HYDRAULIC DDF SYSTEM
- BLADE CHAMBER SEPARATES MATERIAL CUT PART
- OUT-OF-STOCK SWITCH

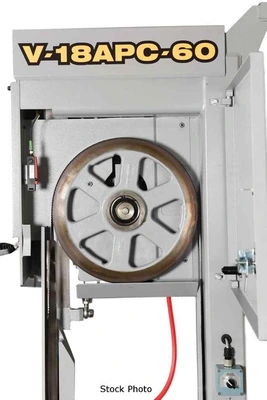

- CAST IRON BAND WHEELS
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- EASY-ACCESS ELECTRICAL PANEL AND HYDRAULICS
- BLADE BREAKAGE SWITCH
- DRAG CHAIN CHIP CONVEYOR
- SELECT LEFT OR RIGHT SIDE INFEED
- HYDRAULIC BAND TENSIONING WITH DRO
- REPLACABLE CARBIDE GUIDE INSERTS
- 2 HP HYDRAULIC PUMP PROVIDES SYSTEM PRESSURE
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH-DOWN HOSE
- LASER LIGHT
- WORK LIGHT
- VARIABLE VISE PRESSURE
- 3 DEGREE HEAD CANT

OPTIONS AVAILABLE - PRICE ON REQUEST
- CHIP BUCKET
- TALL VISE INSERTS
- MIST LUBRICATION SYSTEM

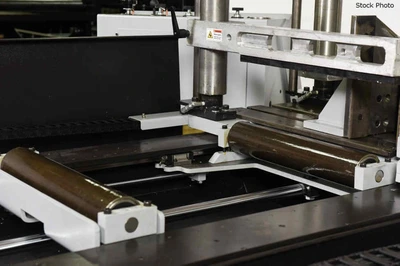

- NON-DRIVEN POP-UP LIFT ROLLER
- HYDRAULIC CHIP CONVEYOR
- IDLER CONVEYORS
- POWER CONVEYORS
- TRANSFORMER FOR 208 OR 240 VOLTS

THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
