NEW ERCOLINA 070 MEDI BENDER
Overview
Specifications
| Dimensions | 10 X 13 X 18 | 10 X 13 X 18 |
|---|---|---|
| Weight | 60 | 60 |

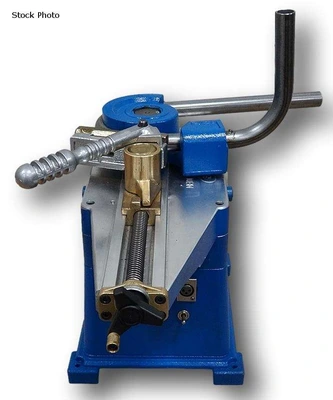

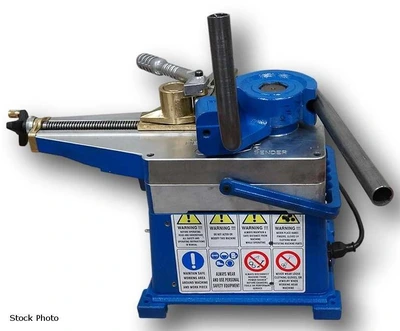

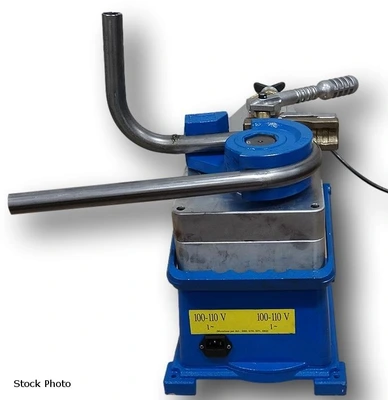

ERCOLINA (NEW) MODEL 070 MEDI BENDER ROTARY
DRAW BENDING MACHINE
CAPACITIES BASED ON MILD GRADE MATERIALS
- 0.065" OUTSIDE DIAMETER - MINIMUM
- 1-1/4" TUBE OUTSIDE DIAMETER - MAXIMUM
- 1" SCH. 10 PIPE CAPACITY - MAXIMUM
- 2D CLR - MINIMUM
- 6-7/8" CLR - MAXIMUM
- 0-210 DEGREES ANGLE RANGE
- 2.2 RPM BENDING SPEED
- ROTARY DIAL/LED PROGRAMMING
- 120 VOLT, 1 PHASE
- 2 HP 50-60 HZ MOTOR
FEATURES
- PORTABLE MACHINE IDEAL FOR FABRICATORS AND
CONTRACTORS WITH JOB SITE BENDING APPS
- BENDS TO 90 DEGREES IN 6 SECONDS
- BEND ANY ANGLE TO 180 DEGREES WITH PROGRAM
- MATERIAL SPRING BACK COMPENSATION

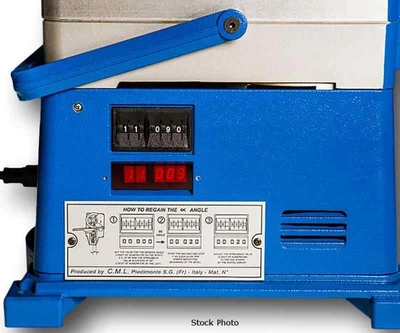

- PROGRAMMABLE BEND ANGLES WITH LED DISPLAY
- PATENTED QUICK-CHANGE TOOLING SYSTEM WITH
- MULTIPLE RADII AVAILABLE

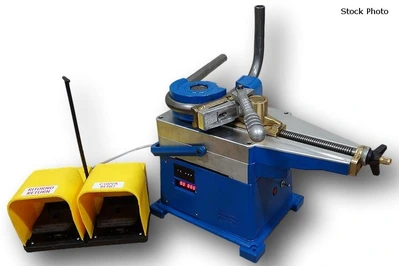

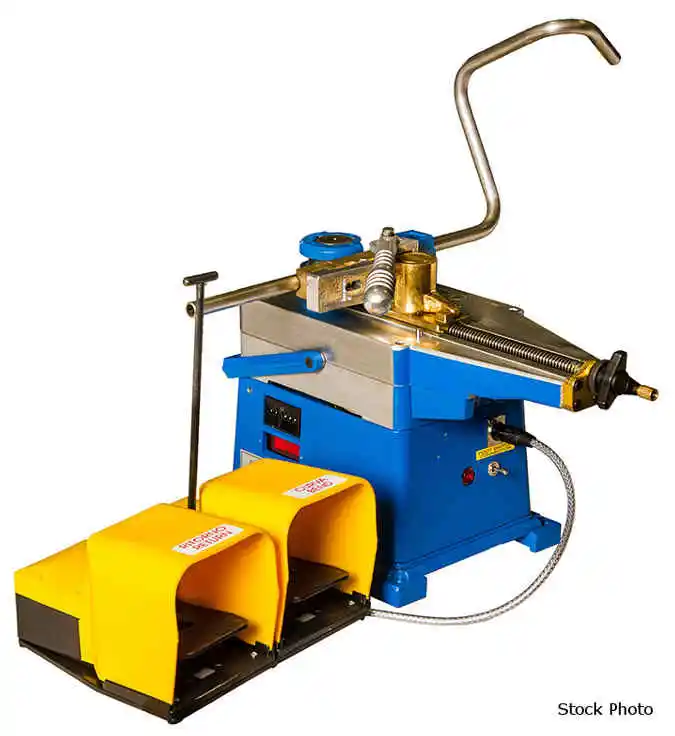

- REMOTE FOOT PEDAL FOR HANDS-FREE OPERATION
- PATENTED SWING-AWAY COUNTERBENDING DIE VISE
- NO HYDRAULIC COMPONENTS
- SHIPS WITH CARRYING CASE AND TOOL KIT
- ONE-YEAR LIMITED WARRANTY
OPTIONS AVAILABLE - PRICE ON REQUEST
- SPRAY LUBRICANT
- TUBE AND PIPE TOOLING KITS
Power: 120 (Single)
