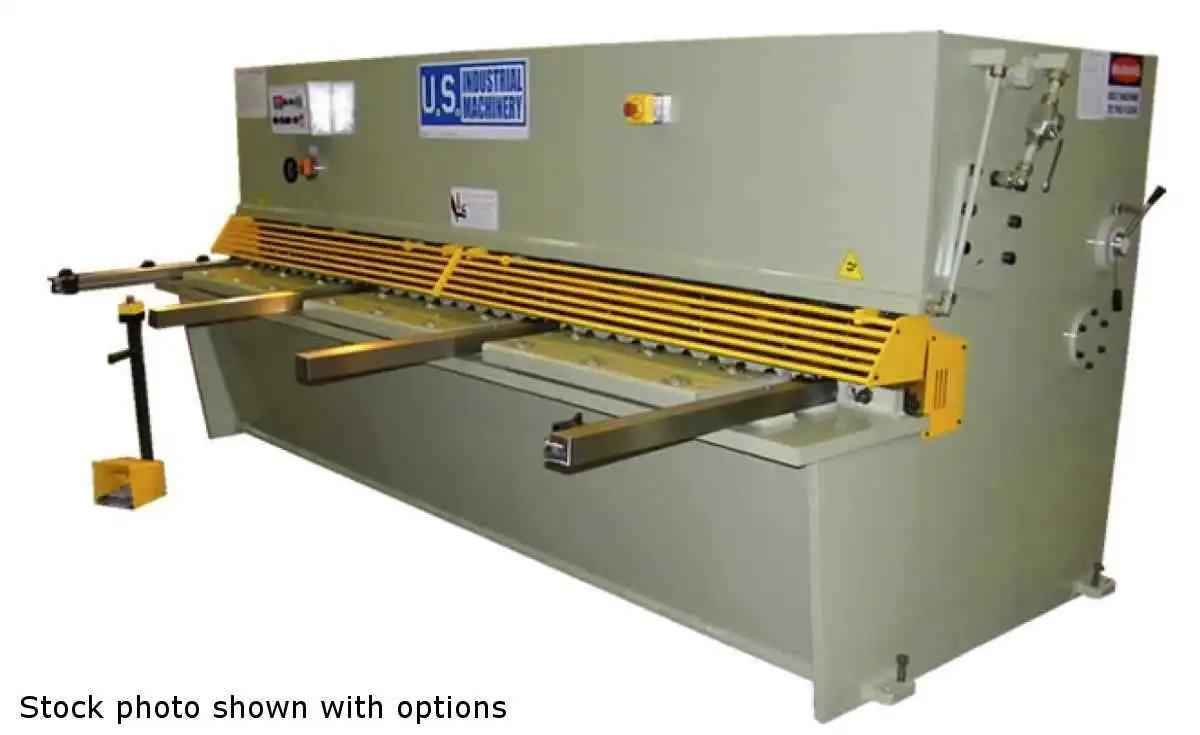

NEW US INDUSTRIAL US10375

US INDUSTRIAL (NEW) MODEL US10375 10' X 3/8"
HYDRAULIC SQUARING SHEAR

SPECIFICATIONS
- 126" SHEET SIZE
- 3/8" MILD STEEL @ 65,000 PSI SHEARING CAPACITY
- 1 DEGREE 30' SHEAR ANGLE
- 10 STROKES PER MINUTE - NO LOAD
- 4.7" THROAT DEPTH
- 0.75" - 36" ADJUSTMENT RANGE OF BACK GAUGE
- 73 GALLON HYDRAULIC OIL CAPACITY
- 20 HP MAIN MOTOR

STANDARD EQUIPMENT
- SQUARING ARM
- HIGH-CARBON, HIGH-CHROME SHEAR BLADES
- BALL TRANSFERS ON EACH TABLE SEGMENT
- MANUAL QUICK CHANGE BLADE GAP ADJUSTMENT
- SQUARING ARM - 39.5" FROM BLADE TO END
- STROKE COUNTER
- FRONT-CONTROLLED POWER BACK GAUGE
- BLADE GUARD, MICRO SWITCH PROTECTED
- HYDRAULIC, ELECTRICAL OVERLOAD PROTECTION
- AUTOMATIC SWING-UP ON BACK GAUGE
- 3 BOLT-ON TABLE SEGMENTS
- HOLD DOWNS FACED WITH ANTI-MAR NEOPRENE
- SWING BEAM DESIGN
- PRESSURE SENSING HOLD DOWNS
- ELECTRIC STROKE ADJUSTMENT
- OPERATOR CONTROL CONSOLE
- SHADOW LIGHTING
- LOW NOISE GEAR PUMP
- SUPPORT ARMS

OPTIONS INCLUDED
- MATERIAL DROP/SUPPORT CHUTE

OPTIONS AVAILABLE - PRICE ON REQUEST
- 3-AXIS CNC PROGRAMMABLE BACK GAUGE
TOUCH SCREEN OPERATED
CONTROLS BG DEPTH, BLADE GAP STROKE LENGTH
200 PROGRAM STORAGE CAPACITY-20 STEPS/PROGRAM
OPERATES IN MANUAL OR AUTOMATIC MODE
- PNEUMATIC SHEET SUPPORT
- 6, 8 OR 10 FOOT SQUARING ARM
- 48" BACK GAUGE - NO SWING UP
- TRAINING
