NEW BUSHMAN 5600

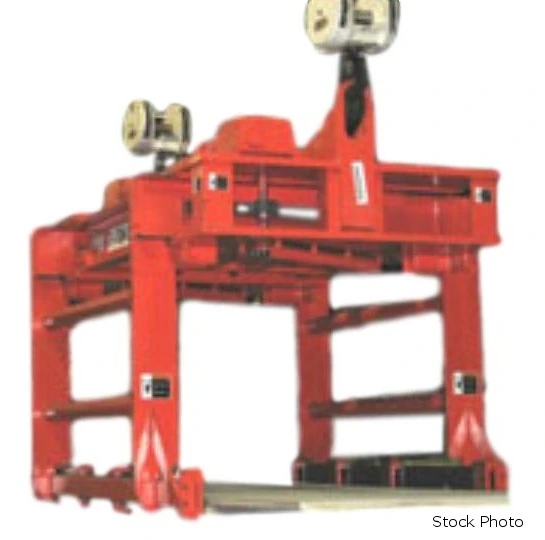

BUSHMAN (NEW) MODEL 5600 SHEET LIFTER
MANUALLY OPERATED WITH HANDWHEEL DRIVE

15,000 LBS CAPACITY
DUAL BAIL TYPE
32" TO 96" RANGE
15" STACK HEIGHT
120" CARRYING ANGLE LENGTH

THE SHEETLIFTER HAS A ERGONOMICALLY DESIGNED
HANDWHEEL FOR EASY ADJUSTEMENT OF THE LIFTING
LEGS FOR VARIATIONS IN SHEET WIDTH. LEGS ARE
LOCKED IN POSITION BY MEANS OF A SELFLOCKING
WORM GEAR DRIVE TO PREVENT ACCIDENTAL OPENING
WHILE HOLDING A LOAD.

A BRONZE WORM GEAR TURNS A DRIVE TRAIN THAT
ROTATES INDIVIDUAL PINIONS TO SIMULTANEOUSLY
DRIVE GEAR RACKS ON THE SLIDER ARMS. THIS
ARRANGEMENT MINIMIZES THE OVERALL WIDTH OF
THE LIFTER, THEREBY ALLOWING USE IN NARROW
AISLE APPLICATIONS. THE SLIDER ARMS ARE
SPECIALLY FORMED CHANNEL SECTIONS THAT ARE
CAPTURED WITHIN FULL-LENGTH TRACKS TO ASSURE
SMOOTH ARM TRAVEL.

PAINT: ONE COAT OF BUSHMAN SAFETY ORANGE

ALL BUSHMAN EQUIPMENT LIFTING DEVICES MEET
OR EXCEED THE ANSI STANDARD B30.20

DRAWING APPROVAL MAY BE REQUIRED PRIOR TO
FABRICATION

THE MAIN FRAME IS A HEAVY STEEL PLATE BOX
WELDMENT TO ASSURE RIGIDITY AND RESIST
TWISTING

DELIVERY IS APPROX 7-8 WEEKS AFTER RECEIPT
OF SIGNED APPROVAL DRAWING

TWO (2) INSTALLATION, MAINTENANCE INSTRUCTION
AND PARTS MANUALS WILL BE PROVIDED

WARRANTY: 12 MONTHS FROM DATE OF SHIPMENT
COVERING DEFECTS IN MATERIAL AND WORKMANSHIP
AND DOES NOT INCLUDE FIELD LABOR

OPTIONS AVAILABLE - PRICE ON REQUEST
- SLOP-1 END MOUNTED HANDWHEEL OPERATION IS
STANDARD FOR SIDE MOUNTED HANDWHEEL
- SLOP-10 FOR MOTORIZED LEG DRIVE - 3/60/460
VAC POWER INCLUDING MOTOR WIRED TO A NEMA 12
JUNCTION BOX, PLUG AND RECEPTACLE.
CMAA CLASS D RATING,
- SLOP-11 FOR MOTORIZES LEG DRIVE - 3/60/460
VAC POWER INCLUDING MOTOR WIRED TO A NEMA 12
JUNCTION BOX, PLUG AND RECEPTACLE.
CMAS CLASS E RATING,
