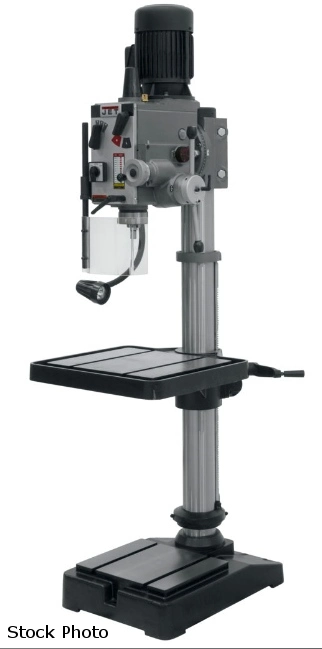

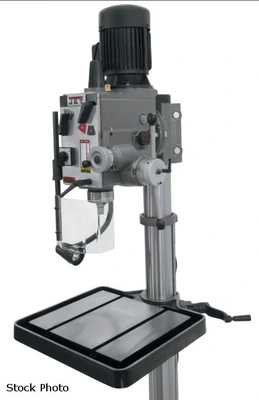

NEW JET GHD-20PF

JET (NEW) MODEL GHD-20PF GEARED HEAD DRILL PRESS
WITH POWER DOWNFEED

20" DRILLS TO CENTER OF CIRCLE
1-1/2" CAST DRILLING CAPACITY
1-1/4" STEEL DRILLING CAPACITY
4-1/2" SPINDLE TRAVEL
3 NUMBER OF POWER FEEDS
10" MAX DISTANCE SPINDLE TO COLUMN
MT 3 SPINDLE TAPER
3" QUILL DIAMETER
44-15/16" SPINDLE DISTANCE TO BASE
30-1/2" SPINDLE DISTANCE TO TABLE
21-3/4" X 19-1/2" TABLE
5/8" T-SLOTS (2)
9" T-SLOT CENTERS
12 SPINDLE SPEEDS
60 - 3000 SPINDLE SPEEDS RANGE
2 HP, 230 VOLT, 2 SPEED, 3 PHASE MOTOR

FEATURES
- HEAVY DUTY DESIGN ALLOWS A VARIETY OF PRECISION
DRILING APPLICATIONS
- LARGE PRODUCTION TABLE AND T-SLOTTED BASE
- EASY-TO-READ INTERNAL DEPTH GAUGE
- THREE POWER DOWN FEEDS
- CALIBRATED, BUILT-IN, FINE DOWNFEED

STANDARD EQUIPMENT
- TEFC MOTOR
- BUILT-IN SPINDLE LOCK
- HEAD TILTS LEFT OR RIGHT
- EASY ACCESSIBLE TABLE RAISER
- DRILL CHUCK ARBOR
- DRAW BAR
Power: 230 (3-Phase)
