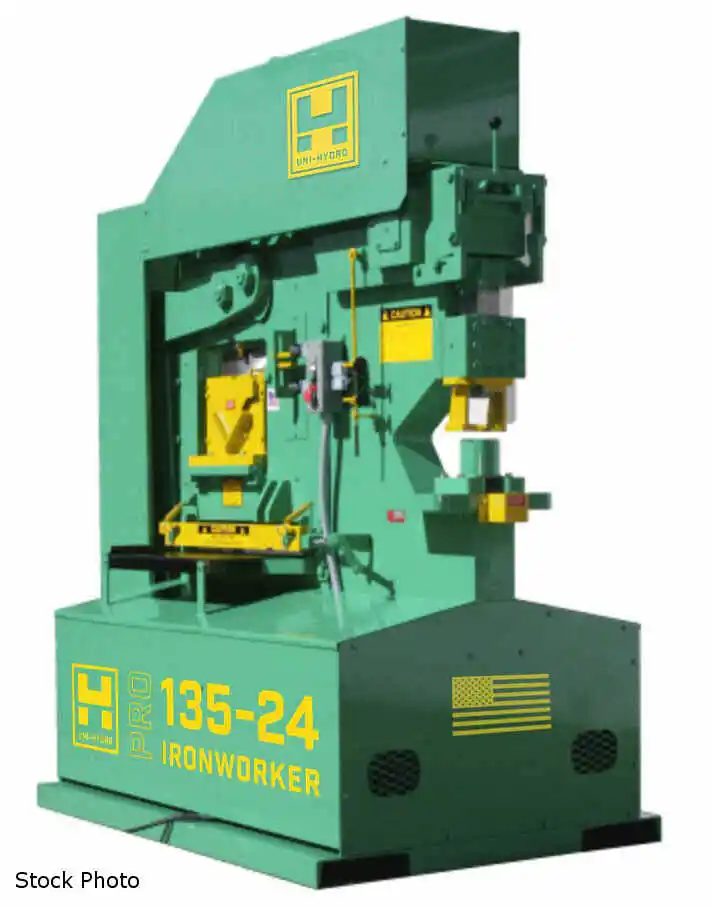

NEW UNI-HYDRO PRO 135-24

UNI-HYDRO (NEW) MODEL PRO 135-24 DUAL OPERATOR
IRONWORKER

135 TON PUNCH CAPACITY
4 WORK STATIONS
12" - 24" THROAT DEPTH
STROKES PER MINUTE
- 40 SPM LIGHT MATERIAL
- 8 SPM MAXIMUM CAPACITY
3,000 PSI HYDRAULICS
28 GALLONS OIL CAPACITY
7.5 HP, 3 PHASE MOTOR

PUNCH CAPACITY
- 1-11/16" HOLE IN 1" MILD STEEL
- 2-1/4" HOLE IN 3/4" MILD STEEL

BAR SHEAR
- 1/2" X 24", 5/8" X 20", 3/4" X 18", 1" X 12"

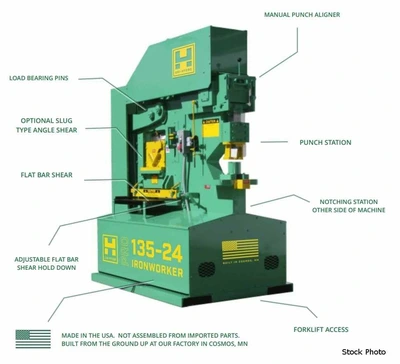

FEATURES
- 4 WORK STATIONS - DON'T NEED RETOOLING STATIONS
- MANUAL PUNCH ALIGNER
PUNCHES DIES CAN BE ALIGNED W/O LOWERING MACH
- 2-STAGE HYDRAULIC PUMP
- 2-CYLINDER DESIGN
- 24" BAR SHEAR WITH 4-SIDED BLADE
- MAGNETIC STARTER
- FIXED OR ADJUSTABLE BAR SHEAR HOLD DOWN
- PORTABLE ELECTRIC FOOT CONTROL
- VARIABLE STROKE CONTROL
- BUILT FOR FORKLIFT HANDLING

OPTIONS AVAILABLE - PRICE ON REQUEST
- 1 PHASE MOTOR
- SLUG-TYPE ANGLE SHEAR
- SEVER-TYPE ANGLE SHEAR
- ROD SHEAR
- CHANNEL SHEAR
- COPER NOTCHER
- SQUARE NOTCHER
- PIPE NOTCHER (SCH 40 OR 80)
- BRAKE

ACCESSORIES AVAILABLE - PRICE ON REQUEST
- PUNCH TABLE WITH ADJUSTABLE JIG
- BAR SHEAR TABLE
- STEEL BIN CATCHER
- PUNCH NUT WRENCHES
- OVERSIZE DIE STANDS
- PUNCH AND DIE RACK
- REMOTE FOOT SWITCH
- BAR SHEAR STOP
- DELUXE BACK GAUGE
- OFFSET DIE STANDS
- OVERSIZE DIE SETS
- GREASE BANK
Power: (3-Phase)
