NEW BAILEIGH RDB-175
Overview
Specifications
| Dimensions | 44 X 28 X 42 | 44 X 28 X 42 |
|---|---|---|
| Weight | 630 | 630 |

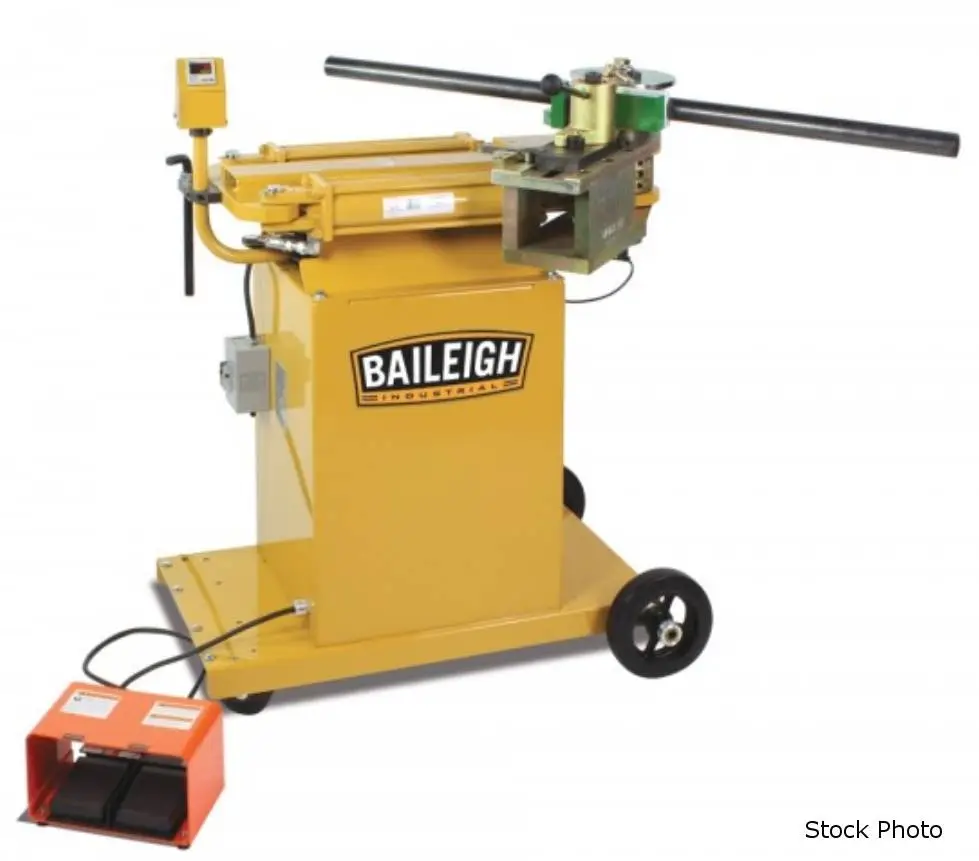

BAILEIGH (NEW) MODEL RDB-175 ROTARY DRAW BENDER
PIPE (SCHEDULE 40):
2" MILD STEEL
2" ALUMINUM
1.5" STAINLESS STEEL
ROUND TUBE (WALL):
2.5" MILD STEEL
2.5" ALUMINUM
2.375" STAINLESS STEEL
2" CHROMOLLY
1.25" MILD STEEL SOLID ROD
2" MILD STEEL SQUARE TUBE (WALL)
0.25" MINIMUM OD
12 SECONDS MAXIMUM SPEED TO 180 DEGREES
0.5" MINIMUM CENTER LINE RADIUS
9" MAXIMUM CLR*
* MAXIMUM CENTER LINE RADIUS IS DEPENDENT ON
MATERIAL OUTSIDE DIAMETER
110 VOLTS
STANDARD FEATURES

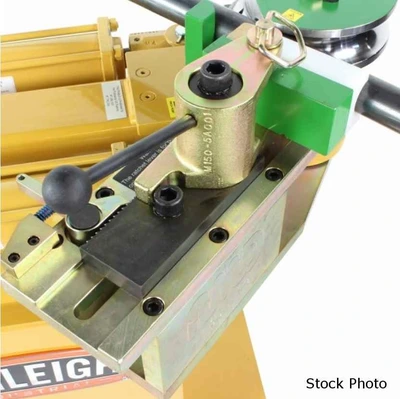

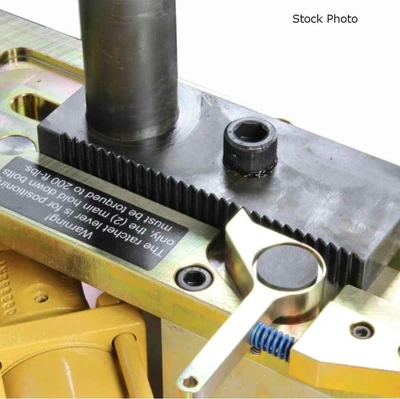

- RATCHET COUNTER DIE POSITIONER
- FOOT PEDAL OPERATION
- BENDS TO 180 DEGREES IN ONE SHOT

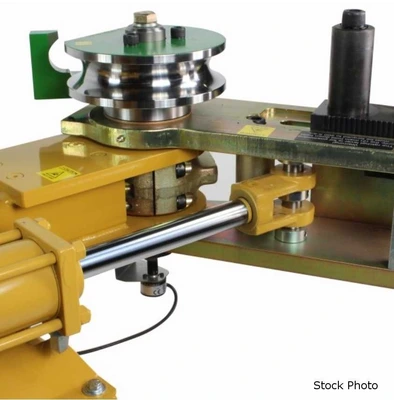

- LOW PRESSURE INDUSTRIAL HYDRAULIC SYSTEM
- USES STANDARD BAILEIGH DROP-ON DIE SETS FOR
FAST TOOLING CHANGES
- REPLACABLE BRONZE BUSHINGS AT ALL PIVOT
POINTS WITH GREASE ZERKS

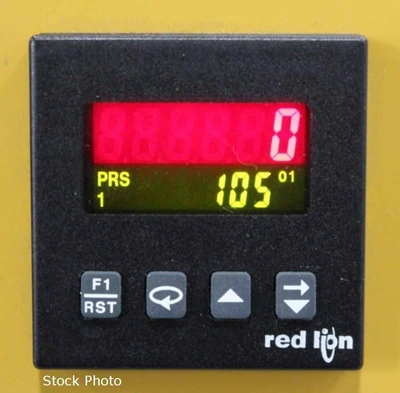

- DIGITAL READOUT FOR BEND REPEATABILITY
- INFINITE TOOLING POSSIBILITIES
Power: 110 (Single)
