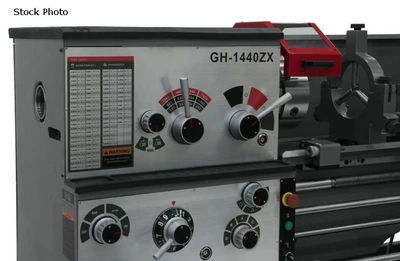

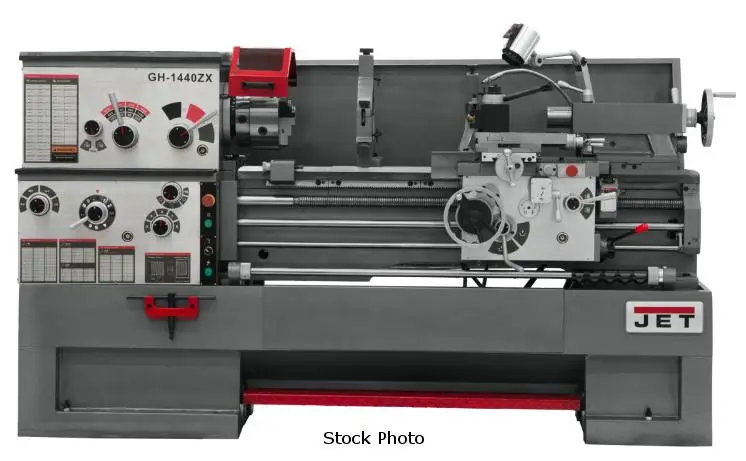

NEW JET GH-1440ZX

JET (NEW) MODEL GH-1440ZX LARGE SPINDLE BORE LATHE
WITH TAPER ATTACHMENT

14" SWING OVER BED
7-5/8" SWING OVER CROSS SLIDE
23-5/8" SWING THROUGH GAP
12" GAP
40" BETWEEN CENTERS
3-1/8" SPINDLE BORE
D1-8 SPINDLE MOUNT
MT 7 SPINDLE TAPER
MT 5 SPINDLE TAPER WITH SLEEVES
12 SPINDLE SPEEDS
42 - 1,800 RPM SPINDLE SPEEDS
46/31 LONGITUDINAL AND CROSS FEEDS
61 INCH THREADS
1-5/8" TO 72" INCH THREADS
24 METRIC THREADS
0.05 TO 20 METRIC THREADS
1 X 1 MAX TOOL SIZE
5-1/8" COMPOUND SLIDE TRAVEL
9" CROSS SLIDE TRAVEL
35" CARRIAGE TRAVEL
5" TAILSTOCK SPINDLE TRAVEL
1/2" - 3-1/2" FOLLOW REST
3/8" TO 7" STEADY REST
13-3/8" BED WIDTH
7-1/2 HP 3 PHASE MAIN MOTOR
230/460 VOLTS

STANDARD EQUIPMENT
- 10" 3 JAW CHUCK WITH TOP REVERSING JAWS
- 12" FACE PLATE
- FOUR-WAY TOOL POST
- FOLLOW REST
- LARGE CAPACITY STEADY REST
- FULLY INTEGRATED COOLANT SYSTEM
- FULL-LENGTH SPLASH GUARD AND COOLANT RETURN
- LARGE EASY-TO-USE FOOT BRAKE
- ARTICULATING LED WORKLAMP
- ELECTRONIC CHUCK KEY HOLDER
- FITTED TOP MATS TO HOLD TOOLING

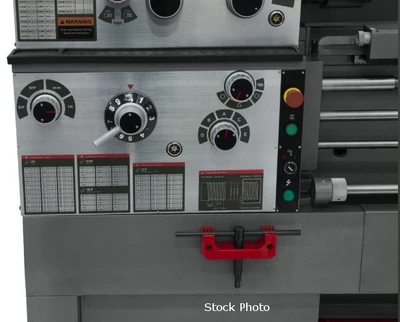

- CENTRALLY LOCATED CONTROL WITH JOG BUTTON
- THREADING DIAL
- MOUNTING PADS AND LEVELERS
- LIVE CENTER
- TOLERANCE TEST CERTIFICATE
- TOOL BOX AND ADJUSTING TOOLS
- E-STOP ON CARRIAGE FOR ADDED SAFETY

FEATURES
- 3-1/8" BORE SPINDLE IS SUPPORTED BY TWO
TAPERED ROLLERS AND ONE BALL BEARING
- CHROME MOLYBDENUM HEADSTOCK GEARS ARE
HARDENED, GROUND AND SHAVED
- UNIVERSAL GEARBOX ALLOWS INCH, METRIC,
DIAMETRAL AND MODULE PITCH THREADS
NO CHANGE GEARS REQUIRED
- CARRIAGE FEATURES ONE SHOT LUBRICATION AND
TURCITE B ON BED SLIDING SURFACES
- T-SLOTTED COMPOUND SLIDE FEATURING FOUR-WAY
TOOL POST
- ONE PIECE CAST IRON BASE ABSORBS VIBRATION
ALLOWING HEAVIER CUTS
- HIGH QUALITY ANSI CLASS 50 WEAR-RESISTANT
REMOVABLE GAP ALLOWS LARGE DIAMETER WORK
- FIVE POSITION AUTOMATIC CARRIAGE STOP INCREASES
PRODUCTIVITY
- MEEHANITE CASTING
- SIEMENS ELECTRICS
Power: 230/460 (3-Phase)
