NEW BAILEIGH R-H45

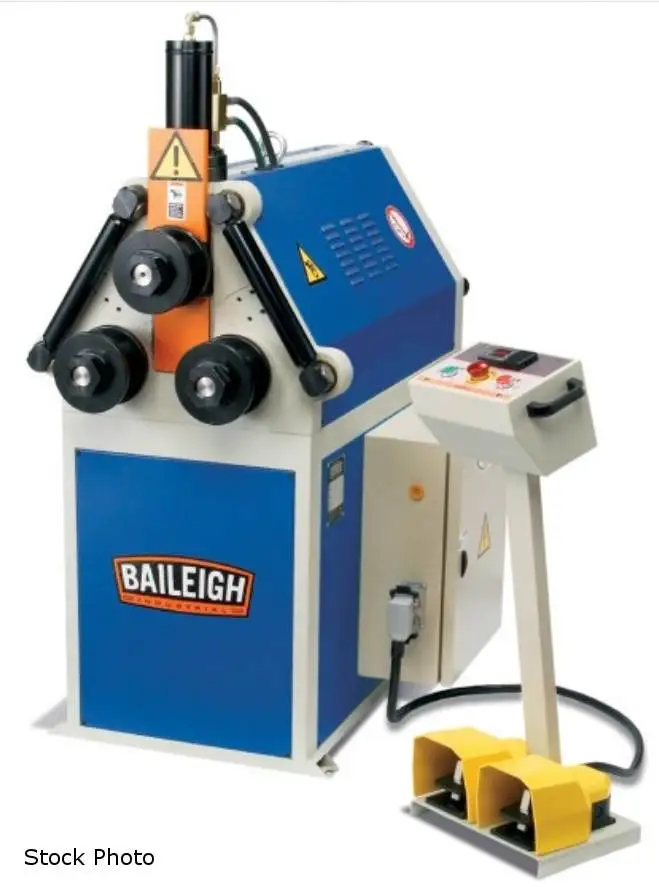

BAILEIGH (NEW) MODEL R-H45 ROLL BENDER

CAPACITY
- 2" PIPE (SCH 40) 48" MINIMUM DIAMETER
- 2.75" ROUND TUBE (.083") 60" MINIMUM DIAMETER
- 2" SQUARE TUBE (.120") 51" MINIMUM DIAMETER
- 2" ANGLE IRON (.250") 28" MINIMUM DIAMETER
- 1.375" SOLID SQUARE 28" MINIMUM DIAMETER
- 1.5" SOLID ROUND 28" MINIMUM DIAMETER
- 4" FLAT BAR EASY WAY (.75") 28" MINIMUM DIA
- 3.25" FLAT BAR HARD WAY (.375") 28" MINIMUM DIA

HYDRAULIC ROLL ADJUSTMENT
SINGLE PINCH
1.772" SHAFT DIAMETER
5.827" ROLL DIAMETER - UPPER
5.827" ROLL DIAMETER - LOWER
9.562" SHAFT CENTER DISTANCE
3 DRIVEN ROLLS
DIGITAL READOUT
12 RPM SHAFT SPEED
3 HP MOTOR
220 VOLT, 1 PHASE

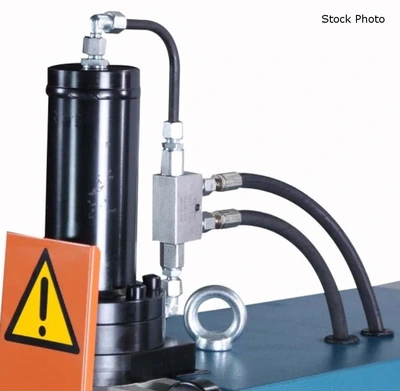

HYDRAULIC ADJUSTMENT OF TOP ROLL

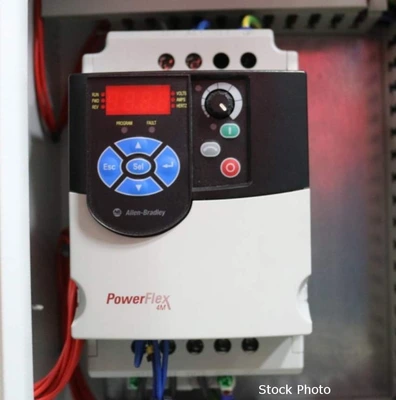

INVERTER DRIVEN
VARIABLE SPEED
OVERLOAD PROTECTED
HORIZONTAL AND VERTICAL BENDING

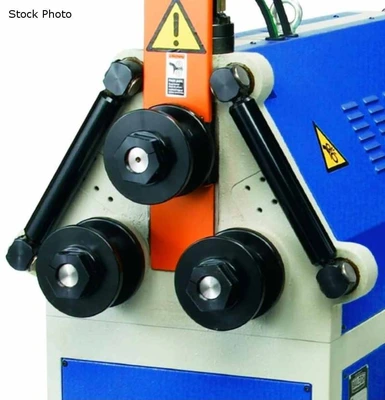

HARDENED STANDARD ROLLS

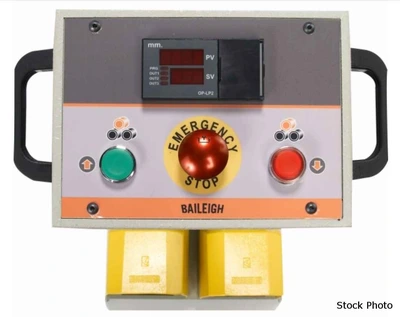

FOOT PEDAL CONTROLLED
DIGITAL READOUT
MANY OPTIONAL TOOLING SETS AVAILABLE
Power: 220 (Single)
