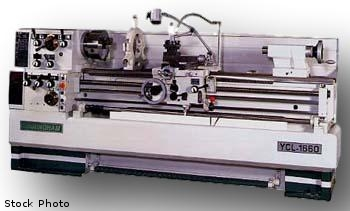

NEW BIRMINGHAM YCL-1640

BIRMINGHAM (NEW) MODEL YCL-1640 PRECISION GAP BED
LATHE

CAPACITY
- 16-1/8" SWING OVER BED
- 40" BETWEEN CENTERS
- 8-13/16" SWING OVER CROSS SLIDE
- 25-3/16" SWING IN GAP
- 9-1/2" EFFECTIVE LENGTH IN GAP
- 11-13/16" BED WIDTH

HEADSTOCK
- D1-6 SPINDLE NOSE (SPINDLE MOUNT)
- 2-9/32" DIAMETER OF SPINDLE THROUGH HOLE
- MT #6 SPINDLE TAPER
- 12 SPINDLE SPEEDS, 25 - 2000 RPM

FEEDS AND THREADS
- 42 LONGITUDINAL FEEDS, 0.0011" - 0.0633"/REV
- 42 CROSS FEEDS, 0.00033- 0.01837"/REV
- 41 METRIC THREADS, 0.1 - 14 MM
- 60 INCH THREADS, 112 - 2 TPI
- 34 MODULE THREADS, 0.1 - 7 MM
- 50 DIAMETRAL PITCH THREADS, 4 - 112 DP

CARRIAGE
- 12-3/16" CROSS SLIDE TRAVEL
- 5" TOP SLIDE TRAVEL

TAILSTOCK
- 2-3/8" TAILSTOCK QUILL DIAMETER
- MT #4 TAILSTOCK QUILL CENTER TAPER
- 4-13/16" TAILSTOCK QUILL TRAVEL

MOTORS
- 7 1/2 HP MAIN MOTOR
- 1/8 HP COOLANT PUMP MOTOR

STANDARD EQUIPMENT
- FOLLOW REST
- 14" FACE PLATE
- 7-1/2" STEADY REST
- 10" 3-JAW CHUCK
- 12" 4-JAW CHUCK
- OPERATIONS/PARTS MANUAL
- COOLANT SYSTEM
- HALOGEN WORK LIGHT
- REMOVEABLE GAP
- 4-WAY TOOL POST
- THREAD CHASING DIAL
- HAND OIL PUMP FOR WAYS
- CENTERS AND SLEEVE
- TOOL KIT WITH TOOLS
- AUTOMATIC KICK-OUT LONGITUDINAL CARRIAGE STOP
- FULL-LENGTH FOOT BRAKE
- FULL-LENGTH SPLASH GUARD

FEATURES
- 1-PIECE CAST IRON BASE
- NO CHANGE GEARS REQUIRED
- HARDENED AND GROUND MAIN SPINDLE
- FINE-GRAIN, HIGH-TENSILE CAST IRON BED
- INDUCTION HARDENED AND PRECISION GROUND BEDWAYS
- HARDENED AND PRECISION GROUND GEARS AND SHAFTS
- MAIN SPINDLE SUPPORTED AT 3 POINTS BY PRECISION
BEARINGS

MADE IN CHINA
