NEW TENNSMITH F6-48-12
Overview
Specifications
| Dimensions | 72 X 49 X 56 | 72 X 49 X 56 |
|---|---|---|
| Weight | 1,725 | 1,725 |

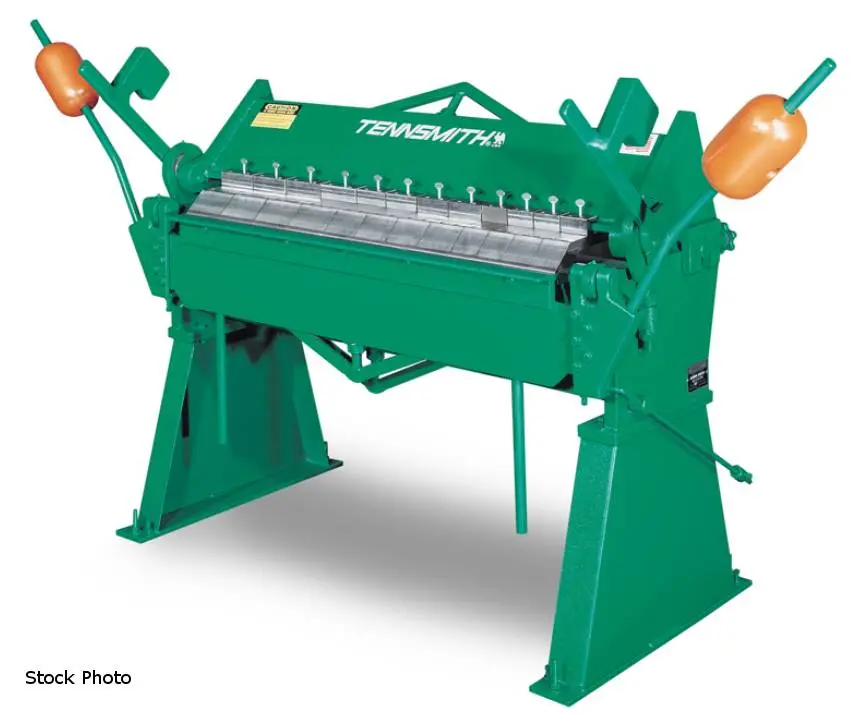

TENNSMITH (NEW) MODEL F6-48-12 BOX PAN BRAKE
12 GAUGE CAPACITY - MILD STEEL
16 GAUGE CAPACITY - STAINLESS
48" BENDING LENGTH
1-1/2" MAXMIUM LIFT OF BEAM
1/2" FRONT TO REAR BEAM ADJUSTMENT
6" MAXIMUM DEPTH OF BOX
1/4" MINIMUM REVERSE BEND
1" MINIMUM FLANGE IN CAPACITY MATERIAL
3" 4" 5" FINGER WIDTHS (4 OF EACH)
STANDARD FEATURES
- HEAVY DUTY FORMING CAPABILITY
- FLEXIBILITY OF REMOVEABLE 6" BOX DEPTH FINGERS
- AMPLE CLAMPING AND EASY-TO-USE NOSE BAR
ADJUSTMENTS ALLOW FOR QUICK SETTING BEND RADIUS
- WELDED STEEL PLATE CONSTRUCTION
- HEAVY TRUSS RODS AND BRACES
OTHER ADJUSTMENT FEATURES INCLUDE
- LEVELING SCREWS AND LOCK NUTS ON PEDESTALS
- JACK SCREWS AND TENSIONER BOLTS ON APRON
- TRUSS RODS ON APRON, BASE AND UPPER BEAM
- FULLY ADJUSTABLE COUNTER BALANCES
- REMOVABLE APRON ANGLE AND INSERT PERMIT 1/4"
REVERSE BENDS IN LIGHTER MATERIAL
OPTION AVAILABLE - PRICE ON REQUEST
- RADIUS FINGERS
- EXTENSION FINGERS FOR INSIDE CORNERS
- OPEN END FINGERS FOR TRIANGULAR, SQUARE, AND
RECTANGULAR TUBE FORMING
