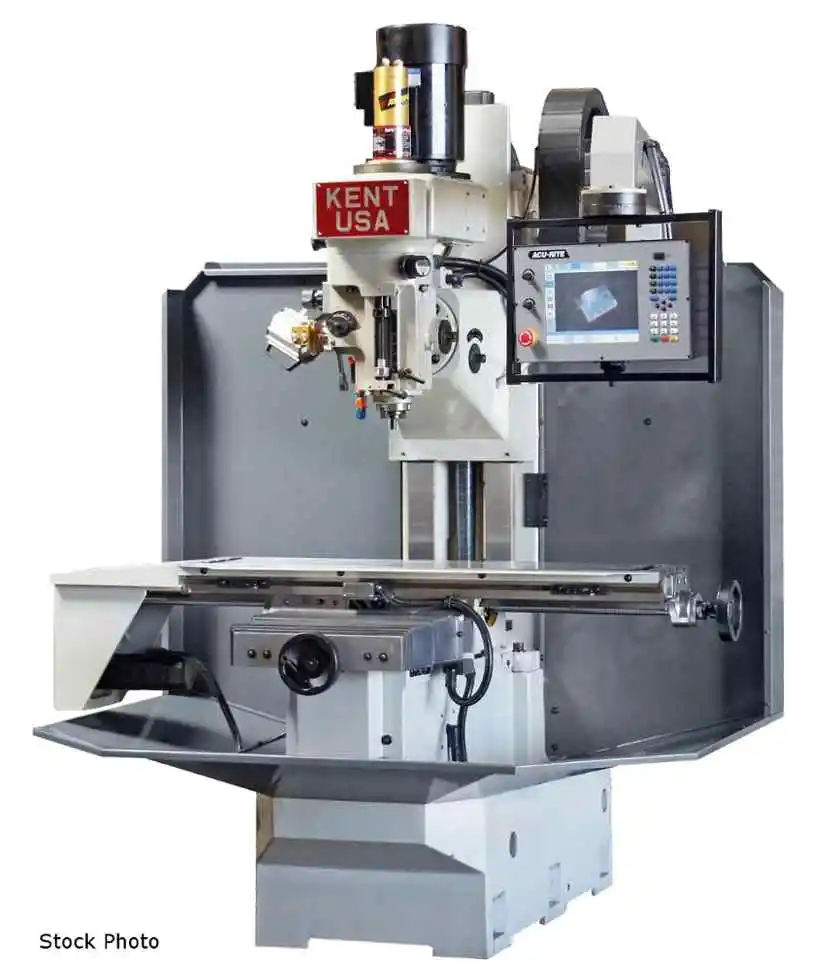

NEW KENT USA TW-32QI

KENT USA (NEW) MODEL TW-32QI CNC BED MILL WITH FAGOR 8055i CNC CONTROL

12" X 50" TABLE

TRAVEL
- 32" TABLE TRAVEL (X-AXIS)
- 18" SADDLE TRAVEL (Y-AXIS)
- 18" COLUMN TRAVEL (Z-AXIS)

20" SPINDLE CENTER TO COLUMN
4" TO 22" SPINDLE TO TABLE
5.5" QUILL TRAVEL
4.173" QUILL DIAMETER
(3) 5/8" T-SLOTS
#40 (NMTB-40 OR CAT-40 TOOLING) SPINDLE TAPER
60-4000-6000 RPM SPINDLE SPEEDS
0.0017"/0.0032"/0.0054" IPR QUILL POWER FEED
1.25" MANUAL DRILLING CAPACITY
0.625" POWER DRILLING CAPACITY
8" DIAMETER BORING CAPACITY
2.5 CUBIC INCH/MINUTE MILLING CAPACITY
1,100 LBS MAXIMUM TABLE LOAD (DISTRIBUTED)
7.5 HP, 220 VOLTS, 3 PHASE, 60 HZ, 30 AMPS
10 GALLON COOLANT RESERVOIR
0.5 GALLON LUBRICATION TANK SIZE

FEATURES
- RIGID SPINDLE/HEAD HOUSING WITH POWERFUL 7.5 HP VECTOR DRIVE SPINDLE MOTOR
- 60 - 6000 RPM PROGRAMMABLE SPINDLE PROVIDES GREATER RANGE OF MACHINING CAPABILITY
- METAL TELESCOPIC WAY COVER ON FRONT SADDLE WAYS FOR ENHANCE DURABILITY
- X-AXIS AND Y-AXIS METAL HAND WHEELS FOR MANUAL OPERATION AND SET UPS
- AUTOMATIC LUBRICATION SYSTEM WITH METERED CHECK VALVES
- PROGRAMMABLE FLOOD COOLANT WITH SPLASH GUARDS AND CHIP PAN
- BUILT-IN COOLANT RESERVOIR IN MACHINE BASE
- CERTIFIED MEEHANITE MACHINE CASTING FOR SUPERIOR DAMPENING AND STABILITY
- ACU-RITE MILPWR-G2 (3 AXIS CNC) CONVERSATIONAL CONTROL WITH 12.1" COLOR LCD
- MANUAL/DRO CONVERSATIONAL AND G-CODE OPERATIONAL MODES
- DUAL USB (FRONT/BACK) PORTS, ETHERNET PORT AND RS-232 PORT
- PROGRAMMABLE SPINDLE SPEED CONTROL AND SPINDLE SPEED OVERRIDE KNOB
- PROGRAMMABLE FLOOD COOLANT (M08) SPLASH GUARDS AND CHIP PAN
- AUTOMATIC LUBRICATION SYSTEM AND WORK LIGHT
- STANDARD TOOLS AND MANUAL

OPTIONS AVAILABLE - PRICE ON REQUEST
- AIR POWER DRAWBAR UNIT WITH SAFETY SPINDLE NOSE RING
- QUILL SCALE FEEDBACK WITH LINKED Z-AXIS COMPENSATION
- TOUCH PROBE KT-130
- REMOTE HANDHELD MPG HANDWHEEL
- OFF-LINE SOFTWARE (DESKTOP PROGRAMMING OPTION)
- INTERNAL TRANSFORMER TO PROVIDE 120V FOR CNC CONTROL
(120V FOR CNC SO THAT SEPARATE 120V SOURCE NOT NEEDED
- EXTERNAL TRANSFORMER FOR 440V TO 220V, 3 PH POWER, 20KVA
- OPTION FOR LINEAR GLASS SCALES ON X/Y/Z
- MACHINE START UP INSTALLATION AND OPERATOR TRAINING
- PROGRAMMABLE ROTARY TABLE INDEXER
Power: 220 (3-Phase)
