NEW BAILEIGH RDB-150

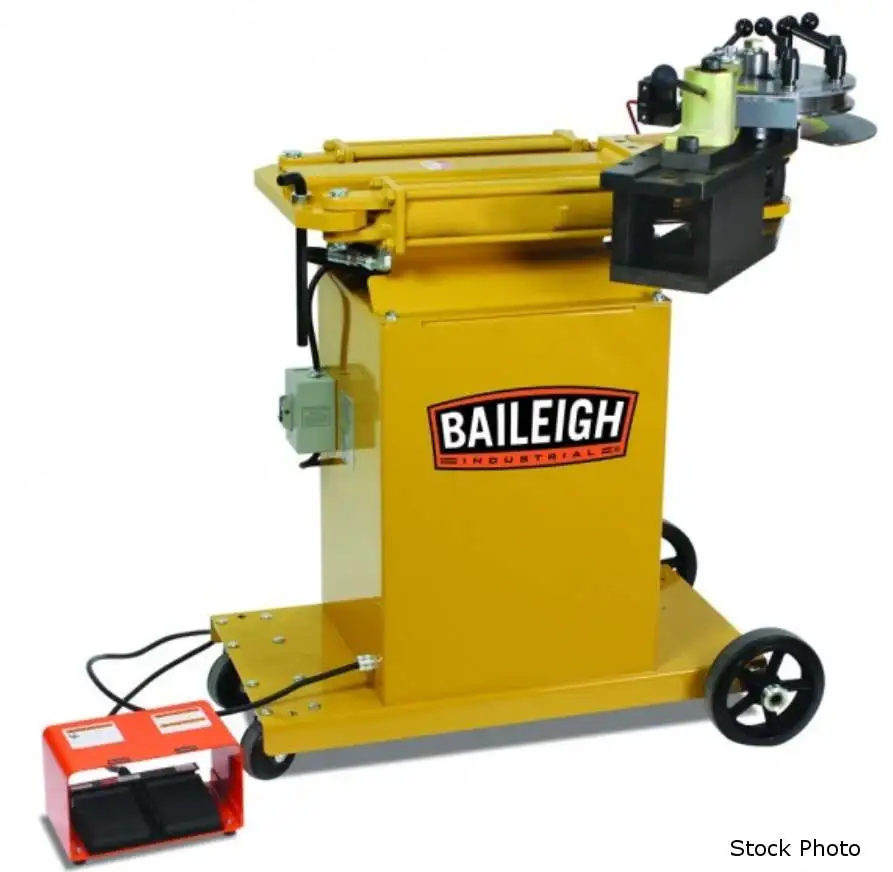

BAILEIGH (NEW) MODEL RDB-150 ROTARY DRAW BENDER

PIPE (SCHEDULE 40)
- 2" MILD STEEL
- 2" ALUMINUM
- 1.5" STAINLESS STEEL

ROUND TUBE (WALL)
- 2.5" MILD STEEL
- 2.5" ALUMINUM
- 2.375" STAINLESS STEEL
- 2" CHROMOLLY
- 1.25" MILD STEEL SOLID ROD
- 2.00" MILD STEEL SQUARE TUBE (WALL)
- 0.25" MINIMUM OD
- 30 SECONDS MAXIMUM SPEED TO 180 DEGREES
- 0.5" MINIMUM CENTER LINE RADIUS
- 9.5" MAXIMUM CLR*
* MAXIMUM CENTER LINE RADIUS IS DEPENDANT ON
MATERIAL OUTSIDE DIAMETER
- 110 VOLTS POWER REQUIREMENTS

STANDARD FEATURES
- BENDS TO 180 DEGREES IN ONE SHOT

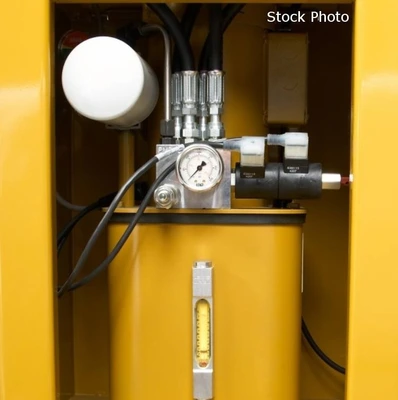

- LOW PRESSURE INDUSTRIAL HYDRAULIC SYSTEM
- USES STANDARD BAILEIGH DROP ON DIE SETS FOR
FAST TOOLING CHANGES
- REPLACABLE BRONZE BUSHINGS AT ALL PIVOT
POINTS WITH GREASE ZERKS

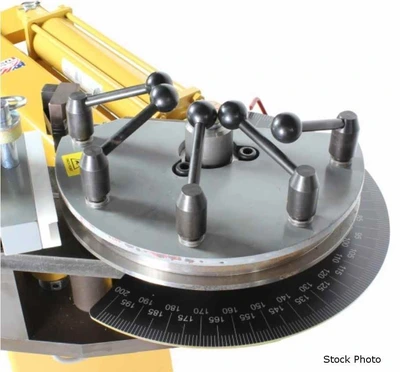

- DEGREE DIAL WITH BEND INDICATOR
- INFINITE TOOLING POSSIBILITIES
- PORTABLE
- FOOT PEDAL OPERATION
Power: 110 (Single)
