| Dimensions | 39 X 26 X 50 | 39 X 26 X 50 |
| Weight | 850 | 850 |

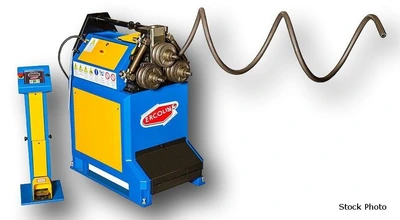

ERCOLINA (NEW) MODEL CE40H3 ANGLE ROLL
40 MM ROLL SHAFT DIAMETER
HYD. 10 TONS CENTER ROLL POSITIONING
2" SCH. 40 PIPE CAPACITY
2" X 2" X 1/4" ANGLE CAPACITY
6-5/8" O.DIA. UNIVERSAL TOOLING INCLUDED
NC - TOUCHPAD PROGRAMMING
8 NUMBER OF PROGRAMS
10 RPM SHAFT SPEED
10-5/8" DISTANCE BETWEEN SHAFTS
1-1/2 HP DRIVE MOTOR (INTO PLANETARY)
HORIZONTAL OR VERTICAL OPERATING POSITION
CONTROL TOWER
220/480 V 3 PH OPERATING VOLTAGE
FEATURES

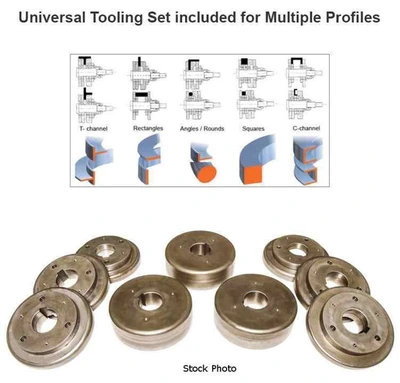

- UNIVERSAL TOOLING SET

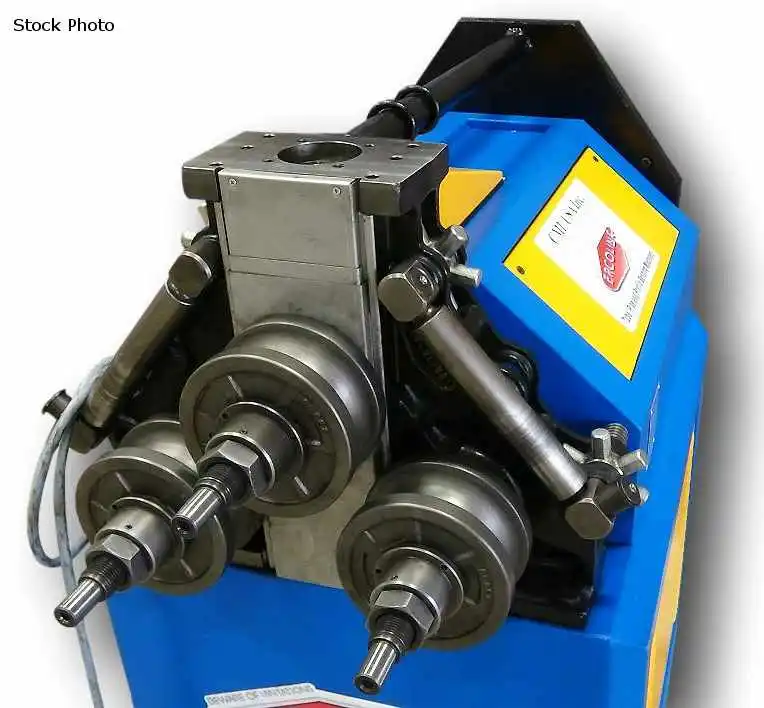

- FORGED ROLL SHAFTS PRECISION GROUND AND FITTED
FOR MAXIMUM PERFORMANCE AND MINIMAL DEFLECTION
- HEAVY-DUTY STRUCTURE AND RIGID COMPONENTS FOR
HIGH SECTION MODULUS RATINGS
- REINFORCED ENGINEERED MAINFRAME DESIGN
PROVEN TO OUTPERFORM COMPETITIVE MODELS
- PATENTED BY ERCOLINA SIMULTANEOUS DOWNFEED
AND ROLL MOVEMENT TO MINIMIZE DEFORMATION

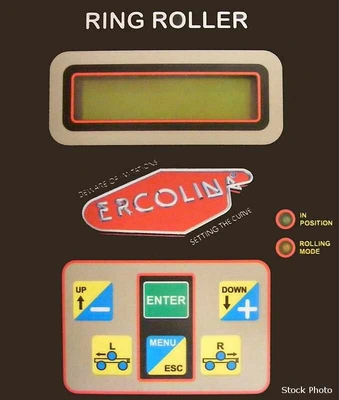

- PROGRAMMABLE TOUCH PAD CONTROLS WITH
DIGITAL CENTER ROLL POSITIONING DISPLAY
- HYDRAULIC MACHINE WITH MEMORY STORAGE WITH
8 INDIVIDUAL PROGRAMS
- CONTROL TOWER WITH LOW VOLTAGE CONTROLS AND
FOOT PEDAL
- THREADED ROLL SHAFTS WITH MICROMETRIC FLANGE
ADJUSTMENT HELPS ELIMINATE SPACER USAGE
- INLINE DIRECT DRIVE ROLL SHAFT SYSTEM
- 1 YEAR LIMITED WARRANTY
OPTIONS AVAILABLE -PRICE ON REQUEST
- ANTI-TWIST DEVICE
- SPRAY LUBRICANT
- SMALL RADIUS TOOLING
- PIPE AND TUBE TOOLING
- RADIUS AND DEGREE MEASURING KIT
Power: 220/440 (3-Phase)
