| Dimensions | 39 X 26 X 59 | 39 X 26 X 59 |
| Weight | 763 | 763 |

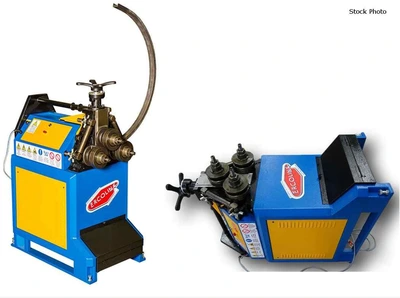

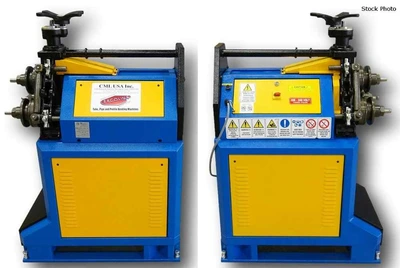

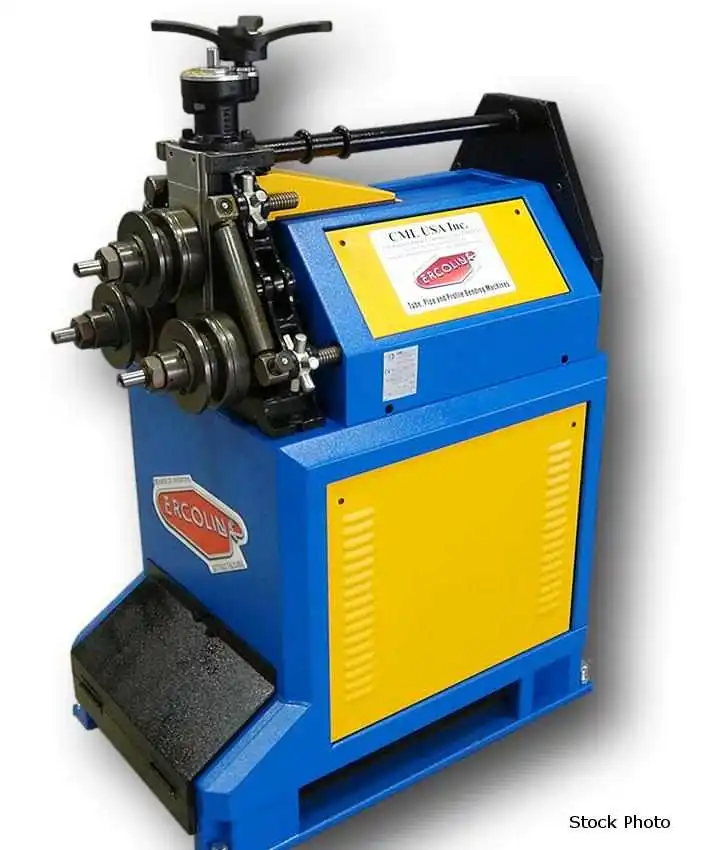

ERCOLINA (NEW) MODEL CE40MR3 ANGLE ROLL
40 MM ROLL SHAFT DIAMETER
CENTER ROLL POSITIONING
- MANUAL WITH PATENTED TORQUE MULTIPLIER
2" SCH. 40 PIPE CAPACITY
2" X 2" X 1/4" ANGLE CAPACITY
6-5/8" O.DIA. UNIVERSAL TOOLING INCLUDED
10 RPM SHAFT SPEED
10-5/8" DISTANCE BETWEEN SHAFTS
1-1/2 HP DRIVE MOTOR (INTO PLANETARY)
HORIZONTAL OR VERTICAL. OPERATING POSITION

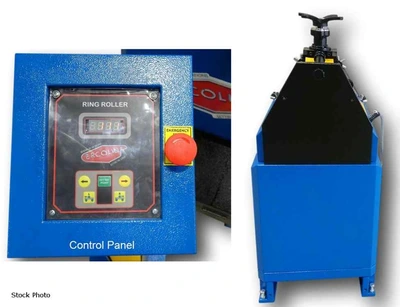

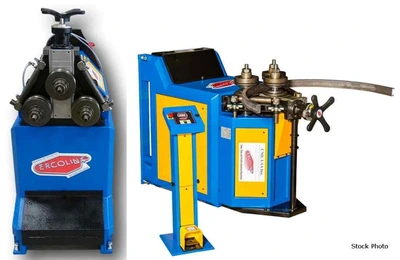

CONTROL TOWER
220/480 VOLT, 3 PHASE
FEATURES

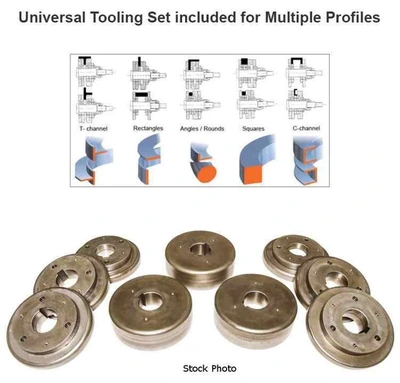

- UNIVERSAL TOOLING SET
- FORGED ROLL SHAFTS PRECISION GROUND AND
FITTED FOR MAXIMUM PERFORMANCE AND MINIMAL
DEFLECTION
- HEAVY-DUTY STRUCTURE AND RIGID COMPONENTS
FOR HIGH SECTION MODULUS RATINGS
- REINFORCED ENGINEERED MAINFRAME DESIGN
PROVEN TO OUTPERFORM COMPETITIVE MODELS
- TOUCH PAD CONTROLS WITH DIGITAL CENTER ROLL
POSITIONING
- CONTROL TOWER LOW VOLTAGE CONTROLS FOOT PEDAL
- THREADED ROLL SHAFTS WITH MICROMETRIC FLANGE
ADJUSTMENT HELPS ELIMINATE SPACER USAGE
- INLINE DIRECT DRIVE ROLL SHAFT SYSTEM
- 1 YEAR LIMITED WARRANTY
OPTIONS AVAILABLE -PRICE ON REQUEST
- ANTI-TWIST CORRECTION SYSTEM FOR ANGLE IRON
"LEG IN" APPLICATIONS
- SINGLE PHASE
- SPRAY LUBRICANT
- SMALL RADIUS TOOLING
- RADIUS AND DEGREE MEASURING KIT
- PIPE AND TUBE TOOLING
Power: 220/480 (3-Phase)
