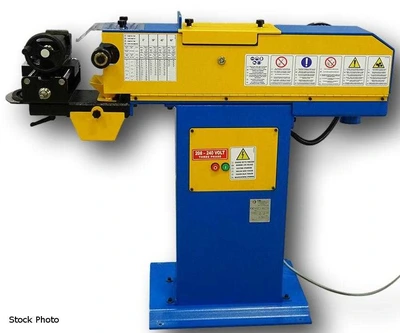

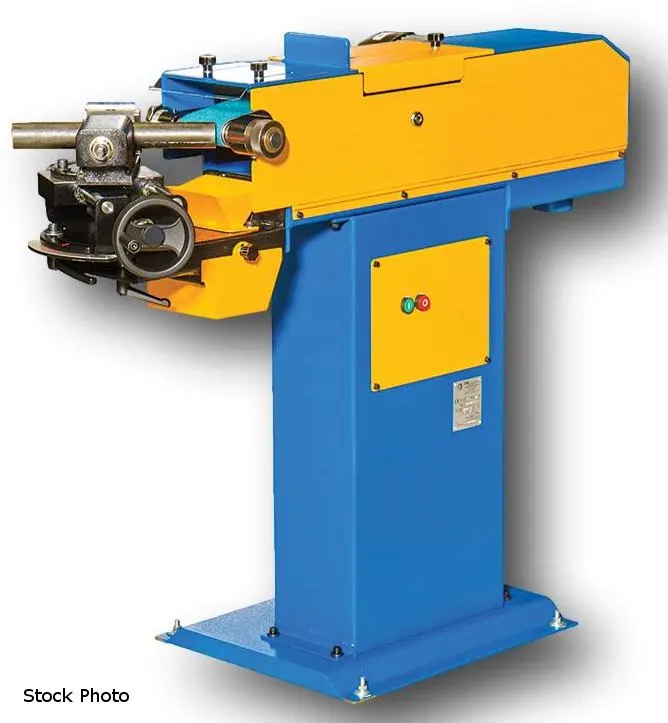

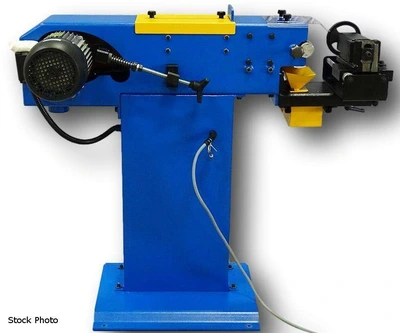

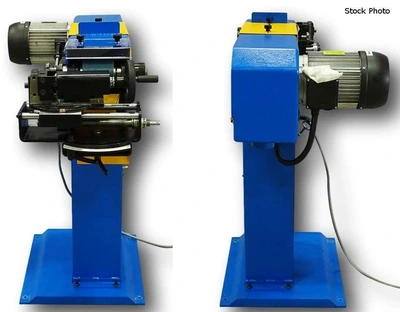

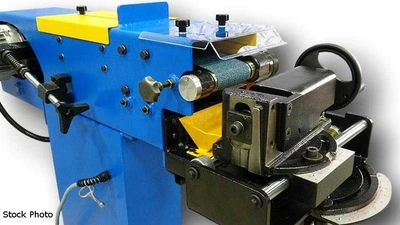

NEW ERCOLINA EN100

ERCOLINA (NEW) MODEL EN100 UNIVERSAL PIPE AND
TUBE NOTCHER

1" MINIMUM DIAMETER
3" MAXIMUM DIAMETER
0 - 60 DEGREES ANGLE RANGE
4" X 76-3/4" BELT SIZE
100 FPS BELT SPEED
CONVENTIONAL DUST EXTRACTION
220V OR 480V 3PH VOLTAGE REQUIREMENT
5.5 HP 50-60 HZ MOTOR
3650 MOTOR RPM

FEATURES
- REPLACES OUTDATED NOTCHING METHODS OF USING
HOLE SAWS, END MILLS, GRINDING WHEELS AND FLAME
CUTTING
- ONE HANDLE MOVES PIPE OR TUBE IN AND ACROSS
ABRASIVE BELT SIMULTANEOUSLY EXTENDING BELT LIFE
AND REDUCING HEAT
- USES PREMIUM ABRASIVE BELTS FOR A WIDE RANGE OF
MATERIALS INCLUDING CARBON STEEL, STAINLESS STEEL,
INCONEL, CHROME MOLY, ALUMINUM AND TITANIUM
- IDEAL FOR HAND RAILING, CHASSIS AND ROLL CAGES,
FENCES AND GATES, FURNITURE FRAMES, MARINE RAILS
AND ARCHES, TUBING PLUMBING FOR RESTAURANT AND
DAIRY

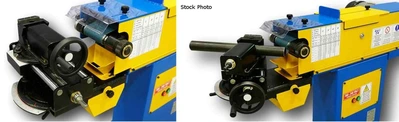

- GRADUATED VISE 0-60 DEGREES WITH VERTICAL
ADJUSTMENT FOR OFFSET ANGLES
- PATENTED QUICK CHANGE ROLLER SYSTEM
- TOP-MOUNTED DEBURRING SURFACE
- TOOL FREE BELT CHANGEOVER

OPTIONS AVAILABLE - PRICE ON REQUEST
- ABRASIVE BELT GRINDER
- NOTCHER ROLLS
Power: 220/480 (3-Phase)
