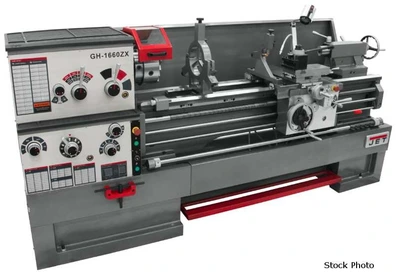

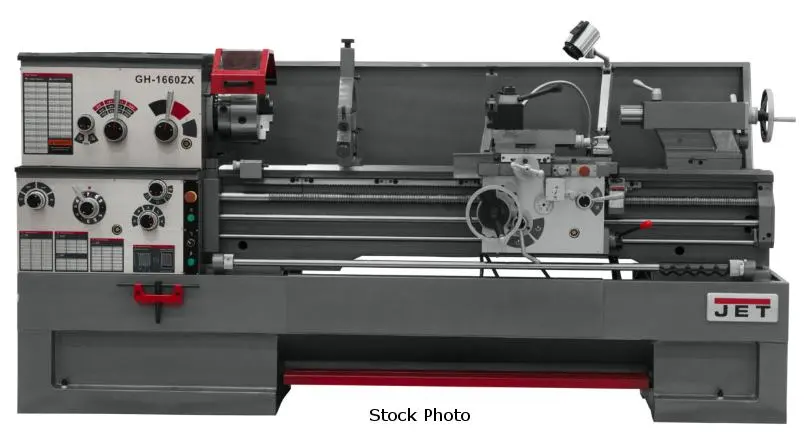

NEW JET GH-1660ZX

JET (NEW) MODEL GH-1660ZX LARGE SPINDLE BORE LATHE
WITH TAPER ATTACHMENT

16" SWING OVER BED
25-1/2" SWING THROUGH GAP
12-1/4" GAP
60" BETWEEN CENTERS
3-1/8" HOLE THROUGH SPINDLE
D1-8 SPINDLE MOUNT
12 SPINDLE SPEEDS
25 - 1,800 RPM SPINDLE SPEEDS
46/31 LONGITUDINAL AND CROSS FEEDS
61 INCH THREADS
24 METRIC THREADS
1 X 1 MAX TOOL SIZE
7-1/2 HP 3 PHASE, 230/460 VOLT MAIN MOTOR

STANDARD EQUIPMENT
- 10" 3 JAW CHUCK W/TOP REVERSING JAWS
- 12" FACE PLATE
- 5PC QUICK CHANGE TOOL POST SET
- LARGE CAPACITY STEADY REST W/BALL BEARING TIPS
- FOLLOW REST
- FULLY INTEGRATED COOLANT SYSTEM
- FULL-LENGTH SPLASH GUARD AND COOLANT RETURN
- LARGE, EASY TO USE FOOT BRAKE
- ARTICULATING LED WORKLAMP
- CENTRALLY LOCATED CONTROLS WITH JOG BUTTON
- THREADING DIAL
- MOUNTING PADS AND LEVELERS
- LIVE CENTER
- TOLERANCE TEST CERTIFICATE
- TOOL BOX AND ADJUSTING TOOLS
- E-STOP ON CARRIAGE FOR ADDED SAFETY

FEATURES
- 3-1/8" BORE SPINDLE IS SUPPORTED BY TWO
TAPERED AND ONE BALL BEARING
- CHROME MOLYBDENUM HEADSTOCK GEARS ARE
HARDENED, GROUND AND SHAVED
- UNIVERSAL GEARBOX ALLOWS INCH, METRIC,
DIAMETRAL AND MODULE PITCH THREADS
NO CHANGE GEARS REQUIRED
- CARRIAGE FEATURES ONE SHOT LUBRICATION AND
TURCITE B ON BED SLIDING SURFACES
- T-SLOTTED COMPOUND SLIDE FEATURING 4-WAY
TOOL POST
- ONE-PIECE CAST IRON BASE ABSORBS VIBRATION
ALLOWING HEAVIER CUTS
- HIGH QUALITY ANSI CLASS 50 WEAR-RESISTANT
CAST IRON BED WAYS ARE HARDENED AND GROUND
- REMOVABLE GAP ALLOWS LARGE DIAMETER WORK
- FIVE POSITION AUTOMATIC CARRIAGE STOP
INCREASES PRODUCTIVITY
- MEEHANITE CASTINGS
- SIEMENS ELECTRICS
