| Dimensions | 71 X 32 X 45 | 71 X 32 X 45 |
| Weight | 1,154 | 1,154 |

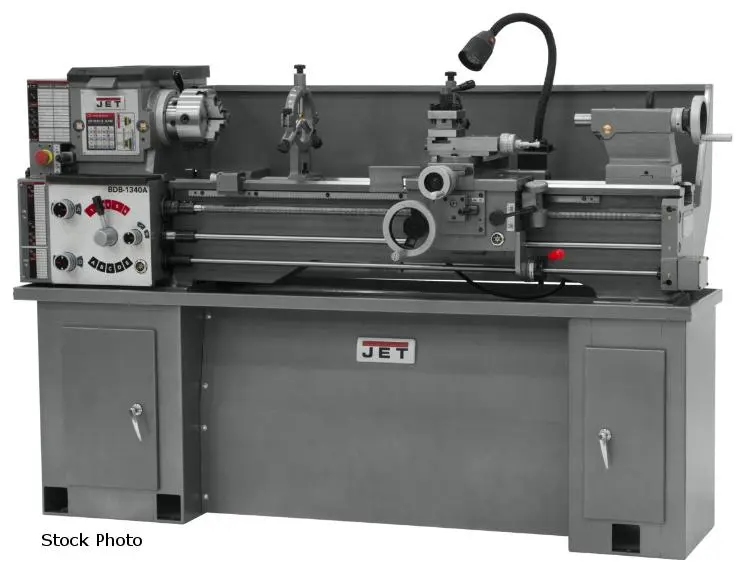

JET (NEW) MODEL GHB-1340A BELT DRIVE BENCH LATHE
WITH CBS-1340A STAND
13" SWING OVER BED
7-25/32" SWING OVER CROSS SLIDE
18-3/4" SWING THROUGH GAP
8" GAP
40" BETWEEN CENTERS
1-3/8" SPINDLE BORE
D1-4 SPINDLE MOUNT
MT-5 (MT-3) SPINDLE TAPER (WITH SLEEVE)
8 SPINDLE SPEEDS
70 - 2,000 RPM SPINDLE SPEEDS
40 LONGITUDINAL AND CROSS FEEDS
0.0018 - 0.0374 IPR LONGITUDINAL FEEDS
0.0006 - 0.0130 IPR CROSS FEEDS
38 INCH THREADS
3-1/2 - 80 TPI (THREADS PER INCH)
23 METRIC THREADS
0.45 - 10 METRIC THREADS
5/8" X 5/8" MAXIMUM TOOL SIZE
2-11/16" COMPOUND SLIDE TRAVEL
6-5/16" CROSS SLIDE TRAVEL
35" CARRIAGE TRAVEL
3-3/4" TAILSTOCK SPINDLE TRAVEL
MT-3 TAPER IN TAILSTOCK SPINDLE
2-3/8" FOLLOW REST CAPACITY
2-3/4" STEADY REST CAPACITY
7-3/8" BED WIDTH
2 HP MOTOR, 230 VOLT, SINGLE PHASE
PREWIRED TO 230 VOLT
FEATURES
- ENCLOSED GEAR BOX
- FAST, EASY SPEED CHANGES
- HARDENED, GROUND GEARS IN HEADSTOCK GEARBOX
- D1-4 SPINDLE IS PRECISON GROUND AND SUPPORTED
BY HIGH-QUALITY TAPERED ROLLER BEARINGS
- HEADSTOCK IS CONSTANTLY OILED DURING OPERATION
- GEARBOX GIVES WIDE INCH THREADING AND FEED
CAPABILITIES WITH NO GEAR CHANGES
- V-WAY BED IS INDUCTION HARDENED AND GROUND
- GAP BED SECTION FOR LARGE DIAMETER WORK
- INDEPENDENT LEADSCREW AND FEED ROD
- SPINDLE ACTUATION CONTROL IS APRON MOUNTED
- COMPOUND AND CROSS SLIDE HAVE BACKLASH
ELIMINATION
- ADJUSTABLE GIBS ARE INCORPORATED IN THE
CARRIAGE AND SLIDEWAYS
- TAILSTOCK MAY BE OFFSET FOR TURNING TAPERS AND
INCLUDES AN INCH-METRIC GRADUATED QUILL
- OIL PAN INCLUDED
- TOLERANCE TEST CERTIFICATE INCLUDED
- 6" 3 JAW DIRECT MOUNT CHUCK WITH TOP
REVERSING JAWS
- 8" 4-JAW CHUCK
- 12" FACE PLATE
- STEADY REST AND FOLLOW REST
- FOUR-WAY TOOL POST
- METRIC CHANGE GEAR
- SPLASH GUARD
- CENTERS AND HEADSTOCK CENTER SLEEVE
- THREADING DIAL
- TOOL BOX AND TOOLS
Power: 230 (Single)
