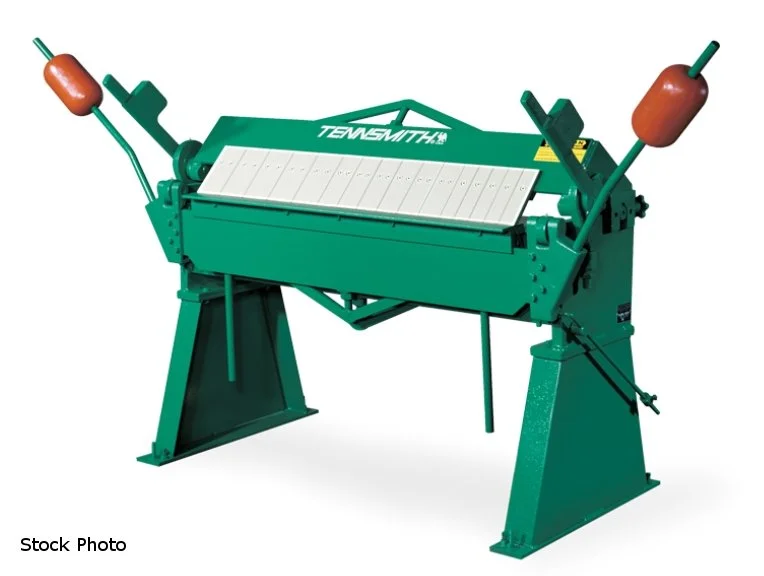

NEW TENNSMITH HBU48-12
Overview
Specifications
| Dimensions | 72 X 36 X 53 | 72 X 36 X 53 |
|---|---|---|
| Weight | 1,330 | 1,330 |
TENNSMITH (NEW) MODEL HBU48-12 HEAVY-DUTY BOX AND
PAN HAND BRAKE
12 GAUGE CAPACITY, MILD STEEL
16 GAUGE CAPACITY, STAINLESS STEEL
48-1/4" BENDING LENGTH
1-1/2" MAXIMUM LIFT OF BEAM
1" FRONT TO REAR BEAM ADJUSTMENT
4" MAXIMUM DEPTH OF BOX
1/4" MINIMUM REVERSE BEND
1" MINIMUM FLANGE IN CAPACITY MATERIAL
2" 3" 4" FINGER WIDTHS
FEATURES INCLUDE
- IDEAL FOR BOTH BOX PAN AND STRAIGHT BENDING
IN HOT AND COLD ROLLED PLATE, STAINLESS STEEL,
ALUMINUM AND HEAVY PLASTIC
- AMPLE CLAMPING AND NOSE BAR ADJUSTMENTS
- WELDED STEEL PLATE CONSTRUCTION
- HEAVY TRUSS RODS AND BRACES
- REMOVABLE APRON INSERT FOR 1/4" BENDS IN
LIGHT MATERIAL
- UPPER LEAF ADJUSTMENT SCREWS WITH THRUST
BEARINGS TO PREVENT UPPER BEAM CREEP
- DUCTILE STEEL CLAMP HANDLES
- HEAVY COUNTERWEIGHTS
- APRON STOP ROD
- CASE-HARDENED REMOVABLE FINGERS
