NEW KENT USA KTM-3VK

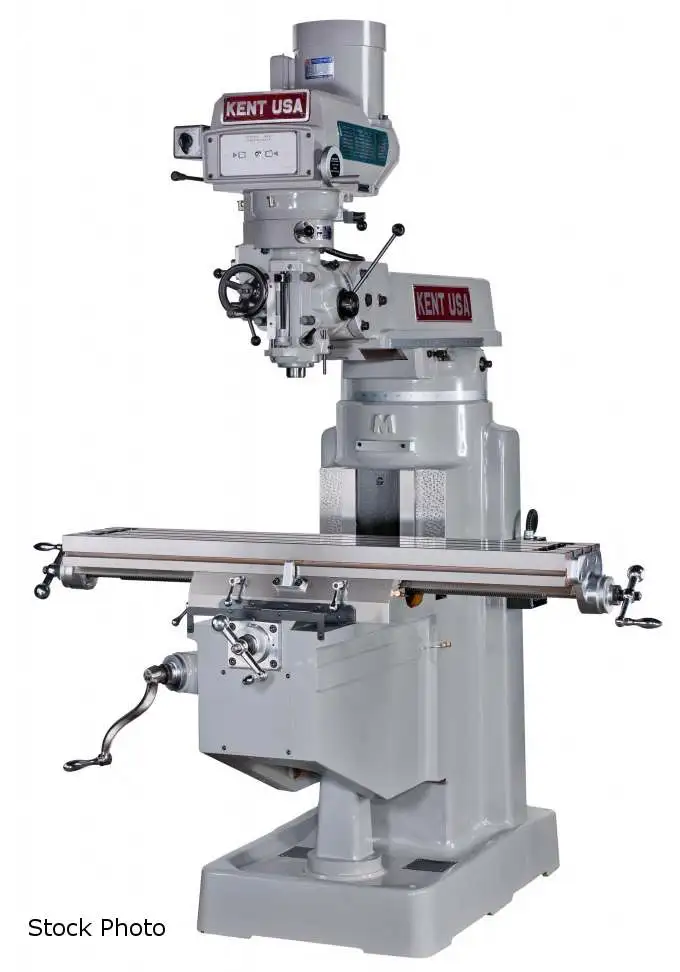

KENT USA (NEW) MODEL KTM-3VKH MILLING MACHINE

10" X 50" TABLE
35" TABLE TRAVEL (X AXIS)
15.25" SADDLE TRAVEL (Y AXIS)
15" KNEE TRAVEL (Z AXIS)
5" QUILL TRAVEL
22" RAM TRAVEL
60 - 500 - 4200 RPM SPINDLE SPEEDS
R-8 SPINDLE TAPER
3.375" QUILL DIAMETER
0.0015", 0.003", 0.006" IN/REV QUILL FEED RATE
0.75" MANUAL DRILLING CAPACITY
0.37" POWER DRILLING CAPACITY
6" DIAMETER BORING CAPACITY
2.0 CUBIC INCH/MINUTE MILLING CAPACITY
850 LBS (CENTERED) MAXIMUM WORK LOAD
2.75" - 17.75" SPINDLE CENTER TO COLUMN
3 HP, 220 VOLTS, 3 PHASE, 60 HZ, 10 AMP

FEATURES
- VARIABLE SPEED MILLING HEAD WITH AC-FREQUENCY
DRIVE, DIGITAL RPM DISPLAY, AND ANALOG LOAD METER
- AUTOMATIC SPINDLE DIRECTION REVERSAL WHEN
SWITCHING BETWEEN HIGH AND LOW SPEED RANGES
- HARDENED AND GROUND TABLE TOP
- T-SLOTS GROUND PARALLEL TO TABLE WAYS
- TABLE, SADDLE, AND KNEE WITH HARDENED GROUND
DOVETAIL WAYS
- PRECISION GROUND LEADSCREWS WITH BACKLASH
COMPENSATING DOUBLE NUT
- PRECISION BORED AND GROUND MILLING HEAD WITH
SUPER PRECISION ABEC-7 BEARINGS
- MEEHANITE CASTING WITH BUILT-IN COOLANT
RESERVOIR IN MACHINE BASE
- AUTOMATIC LUBRICATION WITH METERED CHECK VALVES

OPTIONS AVAILABLE- PRICE ON REQUEST
- DIGITAL READOUT SYSTEM
- TABLE (X-AXIS) POWER FEED
- SADDELE (Y-AXIS) POWER FEED
- KNEE (Z-AXIS) POWER FEED
- AIR POWER DRAWBAR
- FLOOD COOLANT SYSTEM
- CHIP PAN
- RISER BLOCKS (4"/6"/8")
- ANGLE-LOCK VISES (6" / 8")
- RUSTLICK COOLANT (1 GAL., MIXES 1:30)
- RIGHT ANGLE MILLING ATTACHMENT W/ARBOR SUPPORT
- #30 TAPER SPINDLE
- ROTARY TABLE (12", VERTICAL OR HORIZONTAL)
- CLAMPING KIT (52 PIECES)
- R-8 COLLECT SET (11 PIECES, 1/8" TO 3/4")
- 10" X 54" TABLE
- 440 VOLTS, 3 PHASE, 5 AMPS
- 220 VOLTS, 1 PHASE, 15 AMPS
Power: 230 (3-Phase)
