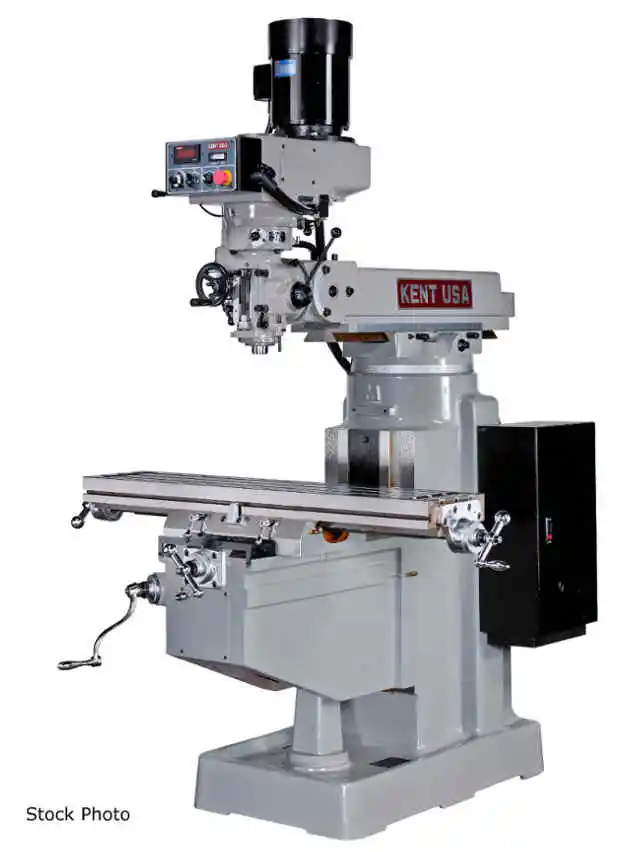

NEW KENT USA KTM-3VKF

KENT USA (NEW) MODEL KTM-3VKF MILLING MACHINE

10" X 50" TABLE (OPT 10" X 54")
35" TABLE TRAVEL (X AXIS)
15.25" SADDLE TRAVEL (Y AXIS)
15" KNEE TRAVEL (Z-AXIS)
5" QUILL TRAVEL
22" RAM TRAVEL
850 LBS DISTRIBUTED TABLE LOAD CAPACITY
50-550-4500 RPM SPINDLE SPEEDS (2-RANGE. HI/LO)
3 X 5/8" T SLOTS (NUMBER X WIDTH)
R-8 SPINDLE TAPER
3.375" QUILL DIAMETER
0.0015", 0.003", 0.006" IN/REV QUILL FEED RATE
0.75" DIAMETER MANUAL DRILLING CAPACITY
0.37" POWER DRILLING CAPACITY
6" DIAMETER BORING CAPACITY
2.0 CUBIC INCH/MINUTE MILLING CAPACITY
HEAD ROTATION (MANUAL)
- +/- 90 DEGREE ROTATION
- +/- 45 DEGREE TILT
3 HP, 220 VOLTS, 3 PHASE,10 AMP

FEATURES
- 3HP SPINDLE MOTOR 50-4500 RPM VARIABLE SPEED
MILLING HEAD W/AC-FREQ DRIVE
- MECHANICAL INFINITELY VARIABLE SPEED HEAD
- HARDENED AND GROUND TABLE FOR LONG PERFORMANCE
- DIGITAL SPINDLE RPM DISPLAY AND REAL-TIME LED
SPINDLE LOAD INDICATOR BAR
- AUTOMATIC SPINDLE DIRECTION MATCHING
WHEN SWITCHING BETWEEN HIGH AND LOW GEAR RANGE
- MEEHANITE CASTING WITH BUILT-IN COOLANT
RESERVOIR IN MACHINE BASE
- INTERLOCKED UL BREAKER SWITCH ON ELECTRICAL
CABINET
- AUTOMATIC CENTRALIZED ONE-SHOT LUBRICATION
SYSTEM WITH METERED CHECK-VALVES
- T-SLOTS GROUND PARALLEL TO TABLE WAYS FOR EASY
AND PRECISE SET UPS

OPTIONS AVAILABLE - PRICE ON REQUEST
- DRO (DIGITIAL READOUT SYSTEM) 2-AXIS 0.0002"
RESOLUTION
- DRO INSTALLATION CHARGE
- TABLE (X AXIS) POWER FEED
- SADDLE (Y-AXIS) POWER FEED
- KNEE (Z-AXIS) POWER FEED
- AIR POWER DRAWBAR UNIT
(MAXI-TORQUE, MADE IN USA)
- FLOOD COOLANT SYSTEM (INTERNAL RESERVIOR)
- CHIP PAN
- OPTION FOR #30 (NMTB-30 SPINDLE)
- AIR POWER DRAWBAR UNIT
(MAXI-TORQUE FOR NMTB #30 SPINDLES
- ANGLE-LOCK VISE 6"
- ANGLE-LOCK VISE 8"
- R-8 COLLECT SET (11 PC, 1/8" -3/4")
- CLAMPING KIT 58 PC
- ROTARY TABLE 12" VERTICAL/HORIZONTAL
- RIGHT ANGLE MILLING ATTACHMENT W/ARBOR
SUPPORT
- RISER BLOCK 4"
- RISER BLOCK 6"
- RISER BLOCK 8"
- OPTION FOR 440 V ELECTRICS (440V INVERTER)
- OPTION FOR EXTENDED 10" X 54" TABLE SIZE
Power: 220 (3-Phase)
