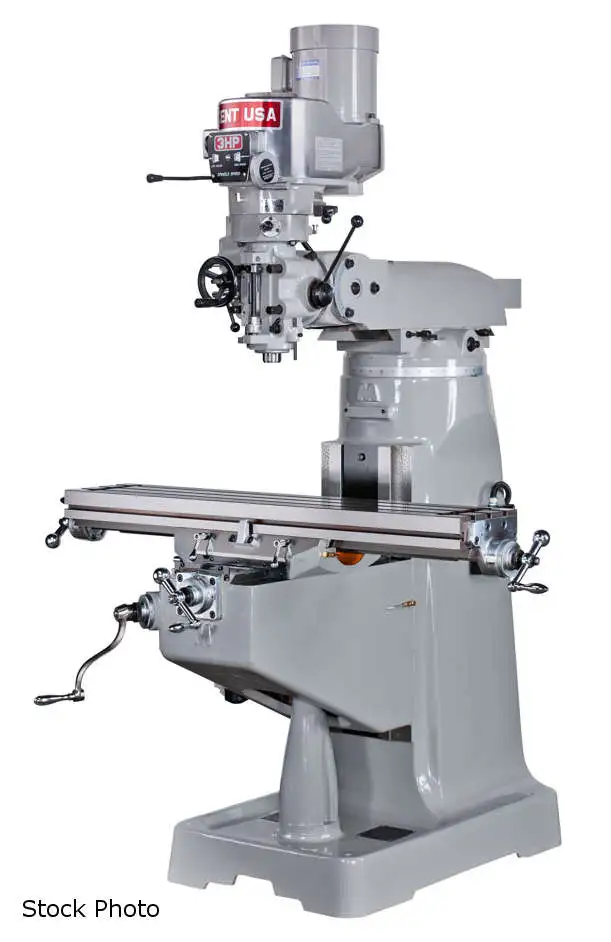

NEW KENT USA KTM-3VS

KENT USA (NEW) MODEL KTM-3VS MILLING MACHINE

9" X 49" TABLE
35" TABLE TRAVEL (X AXIS)
12" SADDLE TRAVEL (Y AXIS)
15" KNEE TRAVEL (Z AXIS)
5" QUILL TRAVEL
14.5" RAM TRAVEL
60 - 500 - 4200 RPM SPINDLE SPEEDS
R-8 SPINDLE TAPER
3.375" QUILL DIAMETER
0.0015", 0.003", 0.006" IN/REV QUILL FEED RATE
0.75" MANUAL DRILLING CAPACITY
0.37" POWER DRILLING CAPACITY
6" DIAMETER BORING CAPACITY
2.0 CUBIC INCH/MINUTE MILLING CAPACITY
850 LBS (CENTERED) MAXIMUM WORK LOAD
5" - 19.5" SPINDLE CENTER TO COLUMN
3 HP, 220 VOLTS, 3 PHASE, 60 HZ, 10 AMP

FEATURES
- HARDENED AND GROUND TABLE
- TABLE, SADDLE, AND KNEE WITH HARDENED GROUND
DOVETAIL WAYS
- PRECISION GROUND LEADSCREWS WITH BACKLASH
COMPENSATING DOUBLE NUT
- PRECISION BORED AND GROUND MILLING HEAD WITH
SUPER PRECISION ABEC-7 BEARINGS
- MEEHANITE CASTING WITH BUILT-IN COOLANT
RESERVOIR IN MACHINE BASE
- ONE-SHOT LUBRICATION WITH METERED CHECK VALVES

OPTIONS AVAILABLE- PRICE ON REQUEST
- QUICK-CHANGE TOOLING PACKAGE
- DIGITAL READOUT SYSTEM
- NMTB-30 SPINDLE
- FLOOD COOLANT SYSTEM (BUILT IN BASE)
- KNEE (Z-AXIS) POWER FEED
- AIR POWER DRAWBAR
- 3-D EDGE FINDER
- CHIP TRAY
- KNEE LINEAR ENCODER FEEDBACK FOR COUPLED Z-AXIS
POSITION
- AMI WITH PROGRAMMABLE M-FUNCTIONS
- 9" X 42" TABLE
- 440 VOLTS, 3 PHASE, 5 AMPS
Power: 220 (3-Phase)
