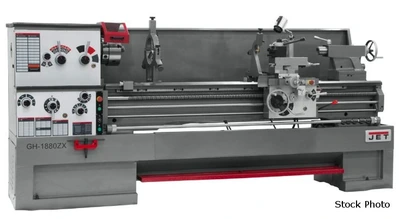

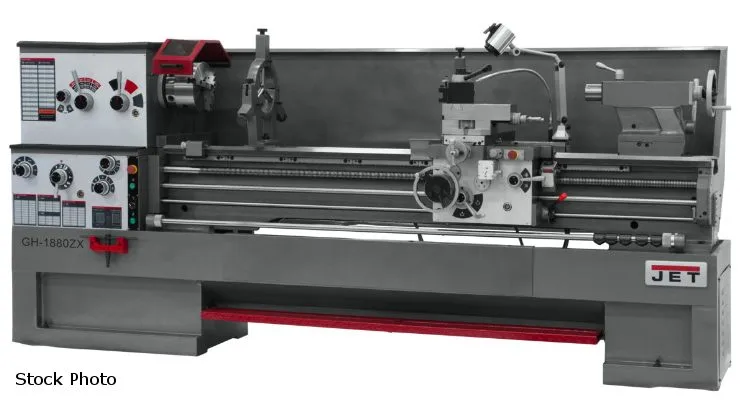

NEW JET GH-1880ZX

JET (NEW) MODEL GH-1880ZX LARGE SPINDLE BORE LATHE
WITH TAPER ATTACHMENT

18" SWING OVER BED
11" SWING OVER CROSS SLIDE
27-1/2" SWING THROUGH GAP
80" BETWEEN CENTERS
3-1/8" HOLE THROUGH SPINDLE
D1-8 SPINDLE MOUNT
MT-7 (MT-5) SPINDLE TAPER (WITH SLEEVE)
12 SPINDLE SPEEDS
25 - 1,800 RPM SPINDLE SPEEDS
122 LONGITUDINAL AND CROSS FEEDS
0.0015-0.0900 LONGITUDINAL FEEDS
0.0006-0.0365 CROSS FEEDS
61 INCH THREADS
1-5/8 - 72 INCH THREADS
24 METRIC THREADS
0.05 - 20 METRIC THREADS
1" X 1" MAX TOOL SIZE
5-1/8" MAX COMPOUND SLIDE TRAVEL
9" MAX CROSS SLIDE TRAVEL
74-5/16" MAX CARRIAGE TRAVEL
5" TAILSTOCK SPINDLE TRAVEL
MT-5 TAPER IN TAILSTOCK SPINDLE
7-1/2 HP, 3 PHASE MAIN MOTOR
230/460 VOLTS

STANDARD EQUIPMENT
- 10" 3 JAW CHUCK WITH TOP REVERSING JAWS
- 12" FACE PLATE (16" MODELS)
- 5-PIECE QUICK-CHANGE TOOL POST SET
- FOLLOW REST
- LARGE CAPACITY STEADY REST
- FULLY INTEGRATED COOLANT SYSTEM
- COOLANT SYSTEM W/FULL LENGTH SPLASH GUARD
AND COOLANT RETURN
- LARGE, EASY-TO-USE FOOT BRAKE
- ARTICULATING LED WORK LAMP
- ELECTRONIC CHUCK KEY HOLDER
- CENTRALLY LOCATED CONTROLS WITH JOG BUTTON
- THREADING DIAL
- MOUNTING PADS AND LEVELERS
- LIVE CENTER
- TOOL BOX AND ADJUSTING TOOLS
- E-STOP ON CARRIAGE FOR ADDED SAFETY

FEATURES
- 3-1/8" BORE SPINDLE IS SUPPORTED BY TWO
TAPERED AND ONE BALL BEARING
- CHROME MOLYBDENUM HEADSTOCK GEARS ARE
HARDENED, GROUND AND SHAVED
- UNIVERSAL GEARBOX ALLOWS INCH, METRIC,
DIAMETRAL AND MODULE PITCH
- CARRIAGE FEATURES ONE-SHOT LUBRICATION
AND TURCITE-B ON BED SLIDING SURFACES
- T-SLOTTED COMPOUND SLIDE FEATURING A FOUR-
WAY TOOL POST
- ONE-PIECE CAST IRON BASE ABSORBS VIBRATION,
ALLOWING HEAVIER CUTS
- HIGH-QUALITY ANSI CLASS 50 WEAR-RESISTANT
CAST IRON BED WAYS ARE HARDENED AND GROUND
- REMOVEABLE GAP ALLOWS LARGE DIAMETER WORK
- FIVE POSITION AUTOMATIC CARRIAGE STOP
- MEEHANITE CASTINGS
- SIEMENS ELECTRICS
Power: 230/460 (3-Phase)
