NEW BAILEIGH RDB-500
Overview
Specifications
| Dimensions | 70 X 56 X 41 | 70 X 56 X 41 |
|---|---|---|
| Weight | 1,800 | 1,800 |

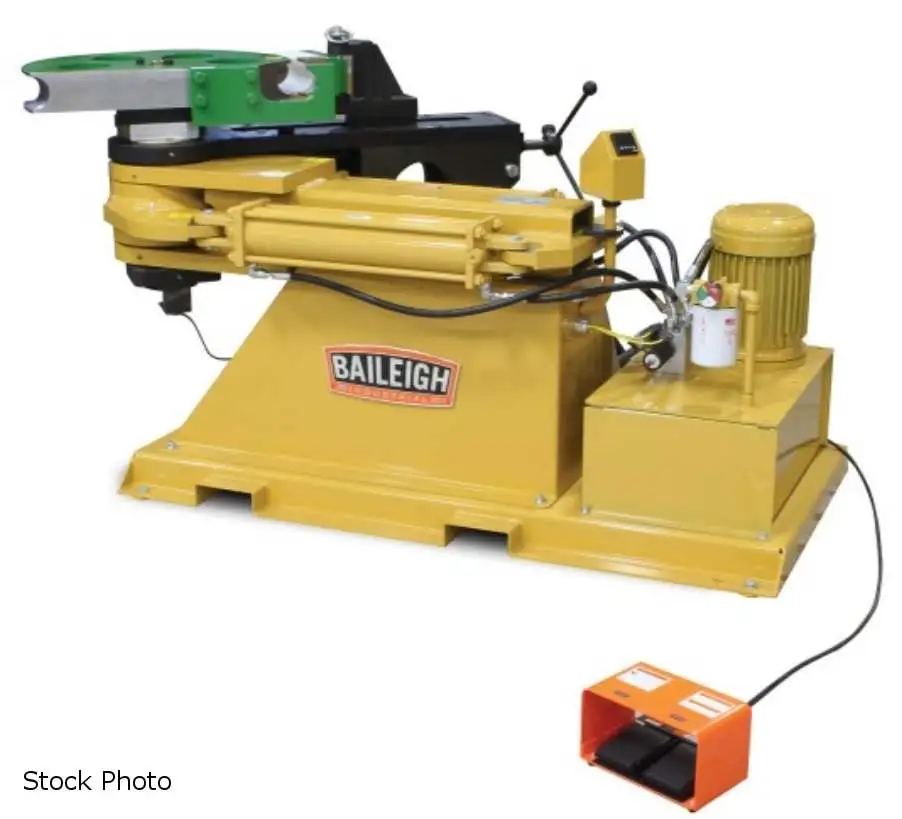

BAILEIGH (NEW) MODEL RDB-500 ROTARY DRAW BENDER
PIPE (SCHEDULE 40):
3" MILD STEEL
3.5" ALUMINUM
2.5" STAINLESS STEEL
ROUND TUBE (WALL):
3" MILD STEEL
3.5" ALUMINUM
3.5" STAINLESS STEEL
3.5" CHROMOLLY
2" MILD STEEL SOLID ROD
3" MILD STEEL SQUARE TUBE (WALL)
0.25" MINIMUM OD
36 SECONDS MAXIMUM SPEED TO 180 DEGREES
0.5" MINIMUM CENTER LINE RADIUS
20" MAXIMUM CLR*
* MAXIMUM CENTER LINE RADIUS IS DEPENDENT ON
MATERIAL OUTSIDE DIAMETER
220 V, 3 PH POWER REQUIREMENTS
STANDARD FEATURES
- 3" SCHEDULE 40 PIPE CAPACITY

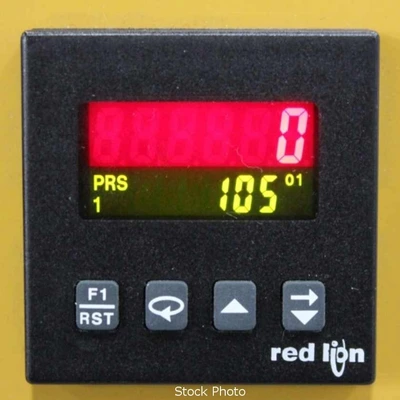

- AUTO STOP FOR BEND REPEATABILITY
- BENDS TO 180 DEGREES IN ONE SHOT

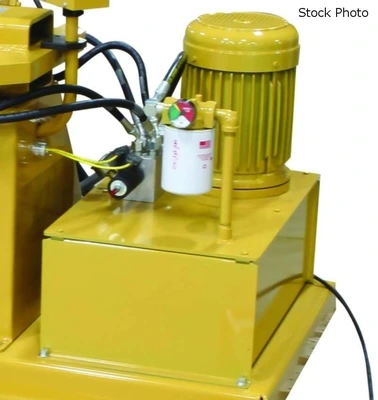

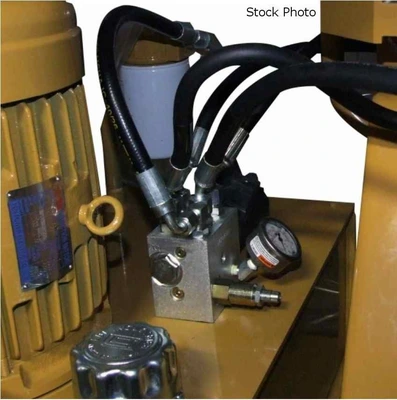

- LOW PRESSURE INDUSTRIAL HYDRAULIC SYSTEM
- USES STANDARD BAILEIGH DROP ON DIE SETS FOR
FAST TOOLING CHANGES
- REPLACEABLE BRONZE BUSHINGS AT ALL PIVOT
POINTS WITH GREASE ZERKS
- INFINITE TOOLING POSSIBILITIES
Power: 220 (3-Phase)
