NEW BAILEIGH RDB-150-AS
Overview
Specifications
| Dimensions | 44 X 28 X 42 | 44 X 28 X 42 |
|---|---|---|
| Weight | 600 | 600 |

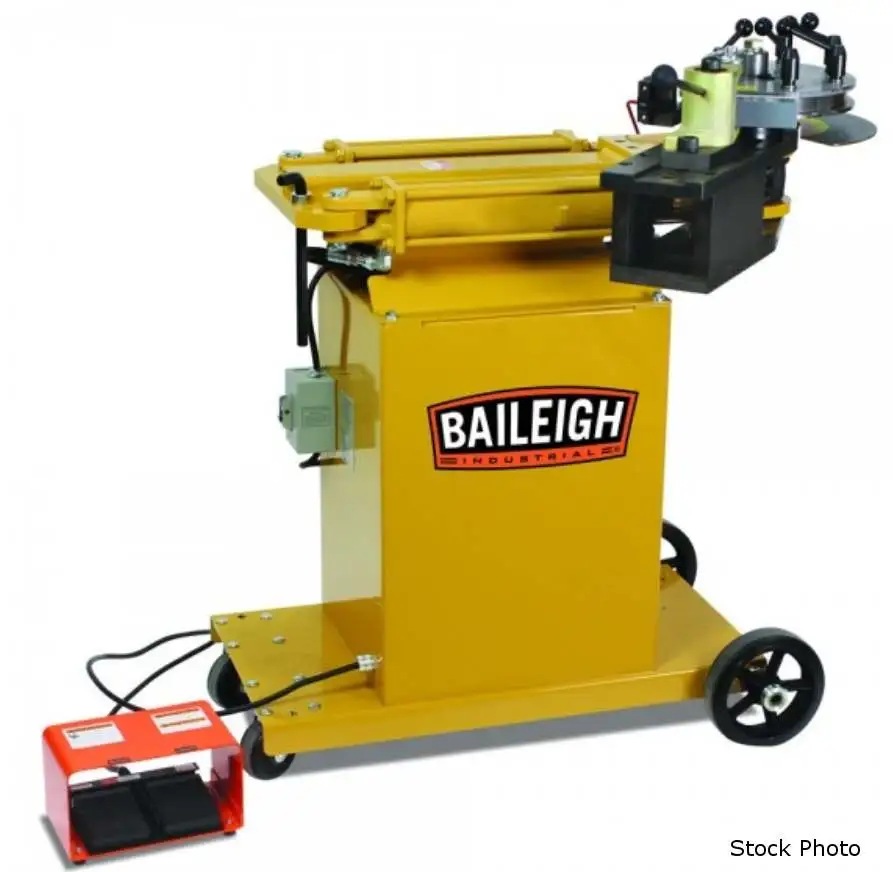

BAILEIGH (NEW) MODEL RDB-150-AS ROTARY DRAW BENDER
PIPE (SCHEDULE 40)
2" MILD STEEL
2" ALUMINUM
1.5" STAINLESS STEEL
ROUND TUBE (WALL)
2.5" MILD STEEL
2.5" ALUMINUM
2.375" STAINLESS STEEL
2" CHROMOLLY
1.25" MILD STEEL SOLID ROD
2" MILD STEEL SQUARE TUBE (WALL)
0.25" MINIMUM OD
30 SECONDS MAXIMUM SPEED TO 180 DEGREES
0.5" MINIMUM CENTER LINE RADIUS
9.5" MAXIMUM CLR*
* 110 VOLTS MAXIMUM CENTER LINE RADIUS IS
DEPENDENT ON MATERIAL OUTSIDE DIAMETER
POWER REQUIREMENTS
INCLUDES OPTIONAL AUTO-STOP FOR BEND
REPEATABILITY
STANDARD FEATURES
- BENDS TO 180 DEGREES IN ONE SHOT

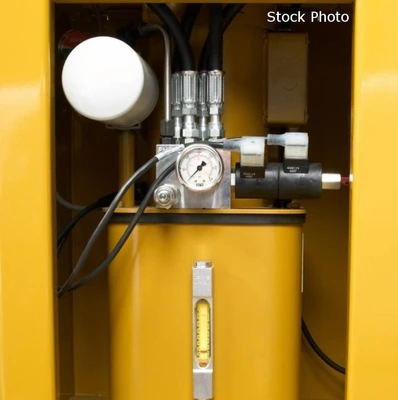

- LOW PRESSURE INDUSTRIAL HYDRAULIC SYSTEM
- USES STANDARD BAILEIGH DROP ON DIE SETS FOR
FAST TOOLING CHANGES
- REPLACABLE BRONZE BUSHINGS AT ALL PIVOT
POINTS WITH GREASE ZERKS

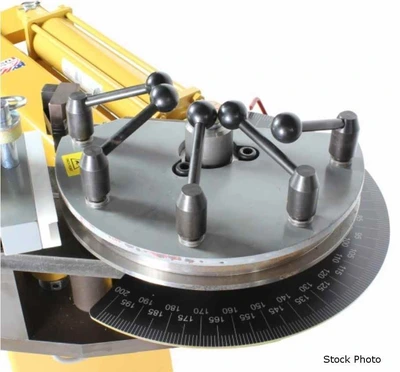

- DEGREE DIAL WITH BEND INDICATOR
- INFINITE TOOLING POSSIBILITIES
- PORTABLE
- FOOT PEDAL OPERATION
Power: 110
