NEW SUMMIT 16-3-60

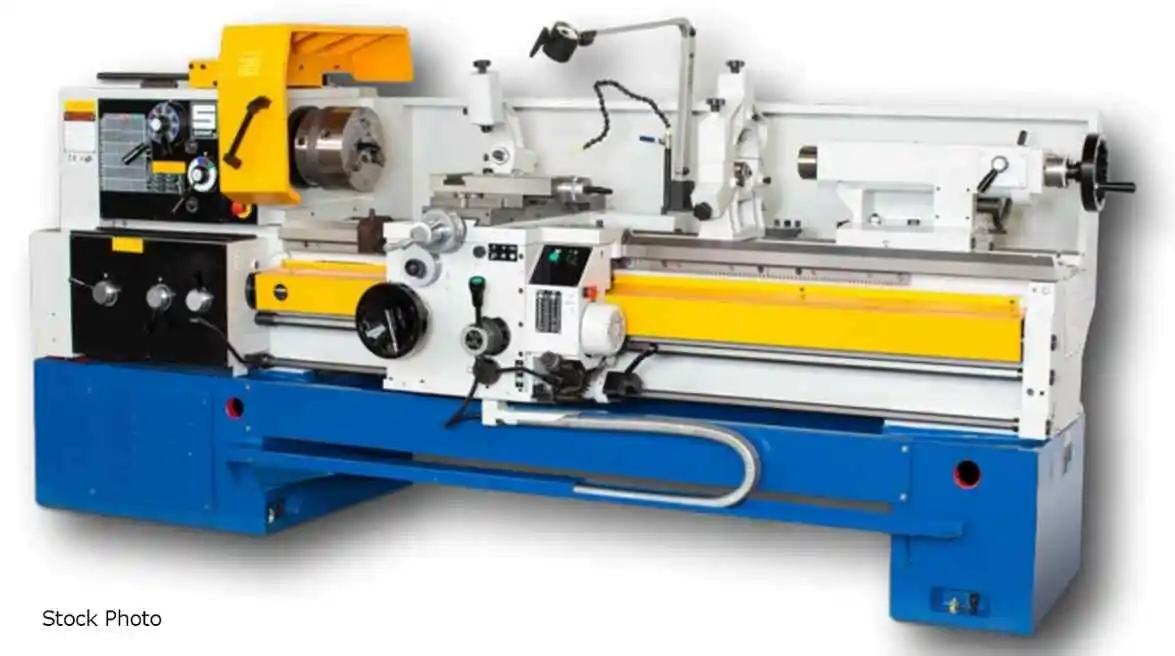

SUMMIT (NEW) MODEL 16-3-60 ENGINE LATHE

18" SWING OVER BED
9-1/2" SWING OVER CROSS SLIDE
26" SWING OVER GAP
15" GAP
8-3/8" IN FRONT OF FACE PLATE

HEADSTOCK
- 3" HOLE THROUGH SPINDLE
- 24 SPINDLE SPEEDS 20-2000 RPM

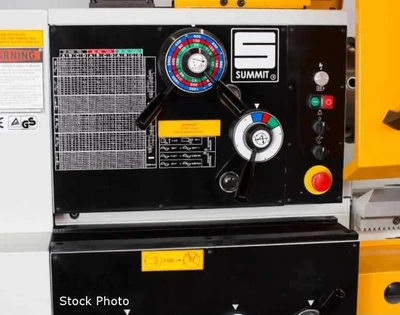

QUICK CHANGE GEARBOX
- 64 THREADS PER INCH .25 - 60
- 64 METRIC THREADS 0.5 - 120
- 120 LONGITUINDAL FEEDS 0.00185-0.44474
- 120 CROSS FEEDS 0.0007 - 0.2224
- 120 METRIC FEEDS .039 - 12

10 HP MAIN MOTOR
1/4 HP COOLANT MOTOR

STANDARD EQUIPMENT
- HEAVY RIBBED CAST BED AND BASE
- HARDENED AND PRECISION-GROUND WAYS

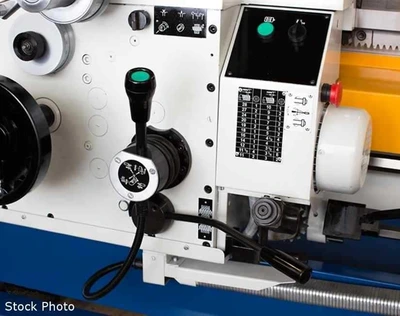

- FEED REVERSING AT THE APRON
- FORCED LUBE TO HEADSTOCK, CARRIAGE BEDWAYS
- D1-8 CAMLOCK SPINDLE NOSE
- CROSSFEED AND THREADING SAFETY INTERLOCK
- INCH-METRIC THREADING
- REMOVEABLE GAP
- PULLOUT CHIP PAN
- DUAL HEADSTOCK AND APRON SPINDLE CONTROL LEVERS
- FULL LENGTH SPLASH GUARD
- RAPID TRAVERSE ON CARRIAGE (4-WAY JOYSTICK)
- DIAMETRAL AND MODULE THREAD CAPABILITY

ACCESSORIES
- THREAD DIAL

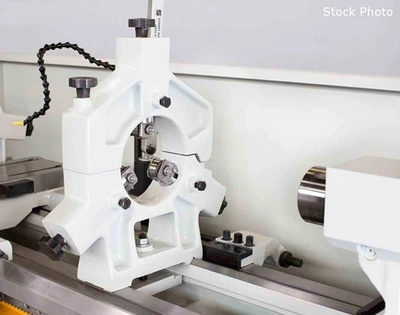

- STEADY REST
- FOLLOW REST
- COOLANT SYSTEM
- CARRIAGE STOP
- TAPER ATTACHMENT

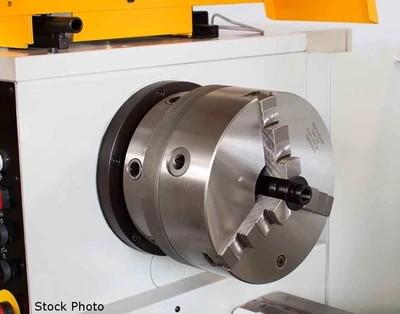

- 10" 3 JAW CHUCK
- WORK LIGHT
- SERVICE WRENCHES

OPTIONS AVAILABLE - PRICE ON REQUEST
- 12" STEEL BODY 3 JAW PRECISION CHUCH WITH
2 PIECE REVERSIBLE JAW IN LIEU OF STANDARD
- QUICK CHANGE TOOL POST WITH HOLDERS
- DIGITAL READOUT
Power: 240/440 (3-Phase)
