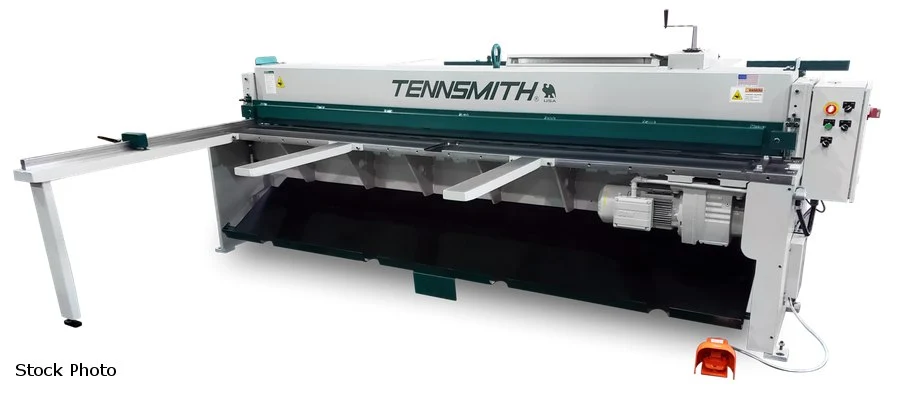

NEW TENNSMITH LM1014

TENNSMITH (NEW) MODEL LM1014 ELECTRO-MECHANICAL
SHEAR

MAXIMUM SHEARING CAPACITY
- 14 GAUGE MILD STEEL
- 18 GAUGE STAINLESS STEEL
121" MAXIMUM CUTTING LENGTH
30" BACK GAUGE
35 STROKES PER MINUTE
SINGLE BAR HOLD DOWN
5 HP, 230/460 VOLT, 3 PHASE MOTOR

FEATURES
- 2X BACK GAUGE SYSTEM ALLOWS THE OPERATOR TO
MOVE THE BACKSTOP FROM 0 TO 30" IN APPROXIMATELY 2
SECONDS WITH 2 ROTATIONS OF THE HANDLE
- 4-EDGE, HIGH-CARBON, HIGH-CHROMIUM (HCHC) TOP
AND BOTTOM BLADES
- SINGLE, CONTINUOUS, AND JOG STROKE CYCLES
- MOTOR REVERSE SWITCH
- PRECISION-MACHINED TABLE WITH
HAND WELL
DUAL INCH/METRIC INLAID BED SCALES
NON-METALLIC GIBS

OPTIONS AVAILABLE - PRICE ON REQUEST
- DIGITAL READOUT
- 5' SQUARING ARM
- 10' SQUARING ARM
- FRONT SUPPORT ARMS
- LIGHT BEAM AND PROTRACTOR ATTACHMENTS
- PERFORMANCE PACKAGE
5' SQUARING ARM
2 FRONT SUPPORT ARMS
AIR-OPERATED SHEET SUPPORT SYSTEM
Power: 230/460 (3-Phase)
