| Dimensions | 57 X 64 X 82 | 57 X 64 X 82 |
| Weight | 2,200 | 2,200 |

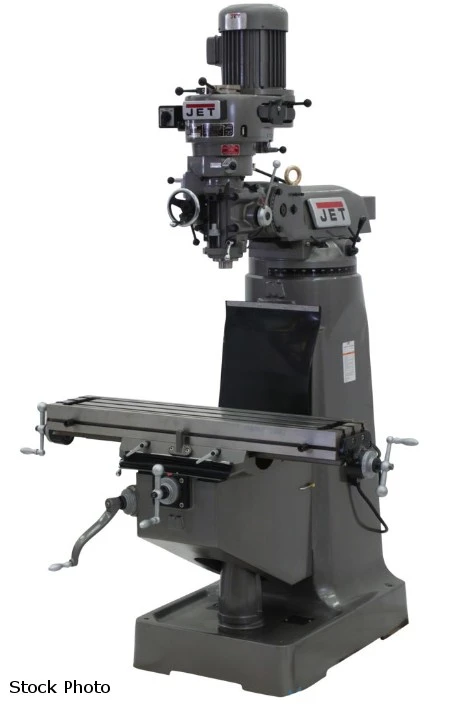

JET (NEW) MODEL JTM-2 STEP PULLEY MILLING MACHINE
9" X 42" SIZE OF TABLE
R-8 SPINDLE TAPER
3-3/8" DIAMETER OF QUILL
8 NUMBER OF SPINDLE SPEEDS
80 - 2720 RPM RANGE OF SPINDLE SPEEDS
0.0015" DOWN FEEDS PER REVOLUTION OF SPINDLE
0.003"-0.006"
5" SPINDLE TRAVEL
90 DEGREE RIGHT LEFT HEAD MOVEMENT
45 DEGREE FRONT BACK MOVEMENT
17-1/2" MAXIMUM DIST SPINDLE TO TABLE
19" MAXIMUM DIST SPINDLE TO COLUMN
4-1/2" MINIMUM DIST SPINDLE TO COLUMN
1/8" - 7/8" COLLET CAPACITY
23-7/8" LONGITUDINAL TABLE TRAVEL
20-2/7" LONGITUDINAL TABLE TAVEL WITH POWERFEED
12-1/2" CROSS TRAVEL
3 NUMBER OF T-SLOTS
5/8" T-SLOT SIZE
2-1/2" T-SLOT CENTERS
550 LBS WORK TABLE WEIGHT
14-1/2" TRAVEL OF KNEE
13-3/8" TRAVEL OF RAM
STANDARD EQUIPMENT
- MEEHANITE CASTINGS
- PRECISION BORED AND HONED MILLING HEAD
- LARGE DIAMETER QUILL IS CHROMED
- HIGH PRECISION CLASS 7 SPINDLE BEARINGS
- SPINDLE HEAD IS INTERNALLY COOLED
- SATIN CHROME FINISHED DIALS
- HEAVY DUTY SPLINED MOTOR DRIVE
- ONE-PIECE QUILL PINION AND SHAFT
- THREE STAGE POWER DOWNFEED WITH AUTOMATIC STOP
- HEAVY DUTY SPINDLE BRAKE
- PRECISION HARDENED AND GROUND WAYS
- PRECISION GROUND TABLE
- ADJUSTABLE GIBS THROUGHOUT
- INTERNAL COOLANT TANK BUILT INTO BASE WITH
COOLANT SYSTEM (COOLANT PUMP NOT INCLUDED)
- TOLERANCE TEST SHEET INCLUDED
- ONE SHOT LUBRICATION SYSTEM
- WAY COVERS
- DRAW BAR
- TOOL BOX WITH TOOLS
Power: 115/230 (Single)
