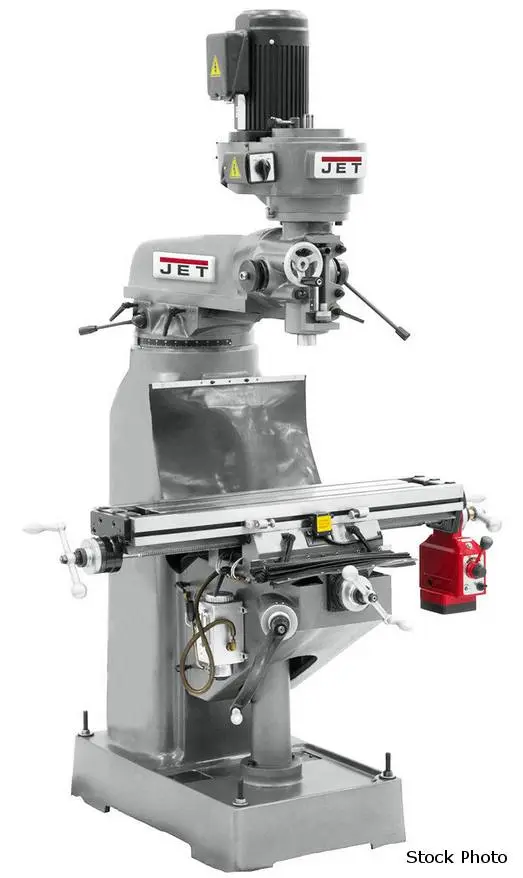

NEW JET JTM-1

JET (NEW) MODEL JTM-1 MILL WITH X-AXIS POWERFEED

9" X 42" TABLE
R8 STEP PULLEY
3-3/8" QUILL DIAMETER
16 SPINDLE SPEEDS
80 - 5,440 RPM SPINDLE SPEEDS
0.0015 IPR, 0.003 IPR 0.006 IPR QUILL DOWNFEEDS
5" SPINDLE TRAVEL
90 DEGREE HEAD MOVEMENT LEFT AND RIGHT
45 DEGREE HEAD MOVEMENT FRONT AND BACK
17-1/2" SPINDLE TO TABLE
19" MAXIMUM DISTANCE FROM SPINDLE TO COLUMN
4-1/2" MINIMUM DISTANCE FROM SPINDLE TO COLUMN
1/8" - 7/8" COLLET CAPACITY
23-7/8" LONGITUDINAL TABLE TRAVEL
20" LONGITUDINAL TABLE TRAVEL WITH POWERFEED
12-1/2" CROSS TRAVEL
THREE 5/8" T-SLOTS
2-1/2" T-SLOT CENTERS
550 LB WORK TABLE WEIGHT CAPACITY
14-1/2" KNEE TRAVEL
13-3/8" RAM TRAVEL
2 HP, 230 VOLTS, 3 PHASE

STANDARD FEATURES
- CERTIFIED MEEHANITE® CASTINGS
- PRECISION BORED AND HONED MILLING HEAD
- LARGE DIAMTER QUILL IS CHROMED
- HIGH PRECISION CLASS 7 SPINDLE BEARINGS
- SPINDLE HEAD IS INTERNALLY COOLED
- SATIN CHROME FINISHED DIALS
- HEAVY-DUTY SPLINED MOTOR DRIVE
- ONE-PIECE QUILL PINION AND SHAFT
- THREE STAGE POWER DOWNFEED WITH AUTOMATIC STOP
- HEAVY DUTY SPINDLE BRAKE
- PRECISION HARDENED AND GROUND WAYS
- INTERNAL COOLANT TANK BUILT INTO BASE
(COOLANT PUMP NOT INCLUDED)
- TOLERANCE TEST SHEET
- ONE-SHOT LUBRICATION SYSTEM
- TOOL BOX WITH TOOLS

EQUIPPED WITH
- X AXIS POWERFEED
Power: 230 (3-Phase)
