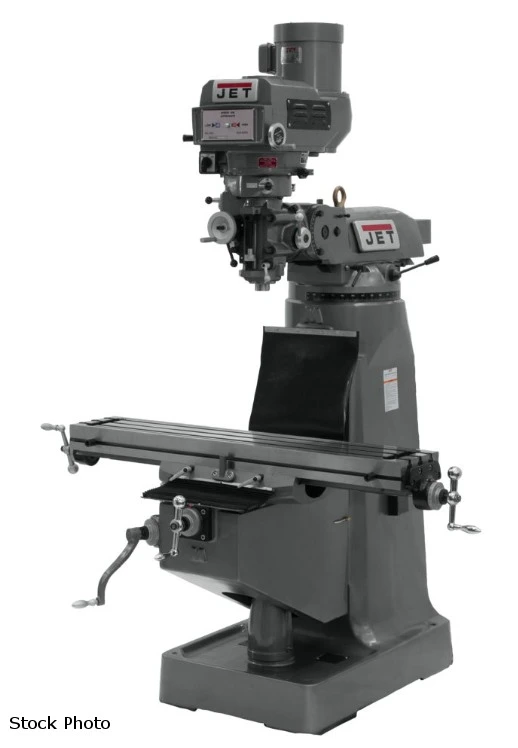

NEW JET JTM-4VS-1

JET (NEW) MODEL JTM-4VS-1 VARIABLE
SPEED VERTICAL MILL

9" X 49" TABLE
R-8 SPINDLE TAPER
3-3/8" QUILL DIAMETER
VARIABLE NUMBER OF SPINDLE SPEEDS
60-4200 RPM RANGE OF SPINDLE SPEEDS
0.0015, 0.003, 0.006 IPR QUILL DOWNFEED RATES
5" SPINDLE TRAVEL
90 DEGREE RIGHT-LEFT HEAD MOVEMENT
45 DEGREE FRONT-BACK HEAD MOVEMENT
17-1/2" SPINDLE TO TABLE
4-1/2" TO 19" SPINDLE TO COLUMN
1/8" - 7/8" COLLET CAPACITY
34" LONGITUDINAL TABLE TRAVEL
12" CROSS TRAVEL
(3) 5/8" T-SLOTS
2-1/2" T-SLOT CENTERS
14-1/2" KNEE TRAVEL
2 HP, 1 PHASE, 115/230 VOLTS

FEATURES
- MEEHANITE CASTING
- PRECISION BORED AND HONED MILLING HEAD
- LARGE DIAMETER QUILL IS CHROMED
- HIGH PRECISION CLASS 7 SPINDLE BEARING
- CHROME PLATED MOTOR SHAFT WITH LOWER BEARING
SUPPORT
- SPINDLE HEAD IS INTERNALLY COOLED
- SATIN CHROME FINISHED DIALS
- HEAVY-DUTY SPLINED MOTOR DRIVE
- ONE-PIECE QUILL PINION AND SHAFT
- THREE-STAGE POWER DOWNFEED WITH AUTOMATIC STOP
- HEAVY-DUTY SPINDLE BRAKE
- LOCKS ON ALL MOVABLE SURFACES
- PRECISION HARDENED AND GROUND WAYS AND TABLE
- ADJUSTABLE GIBS THROUGHOUT
- INTERNAL COOLANT TANK BUILT INTO CASTING BASE
FOR USE WITH COOLANT SYSTEM
(COOLANT PUMP NOT INCLUDED)
- TOLERANCE TEST SHEET INCLUDED
- ONE-SHOT LUBRICATION SYSTEM
- WAY COVERS
- DRAW BAR
- TOOL BOX WITH TOOLS
Power: 115/230 (Single)
