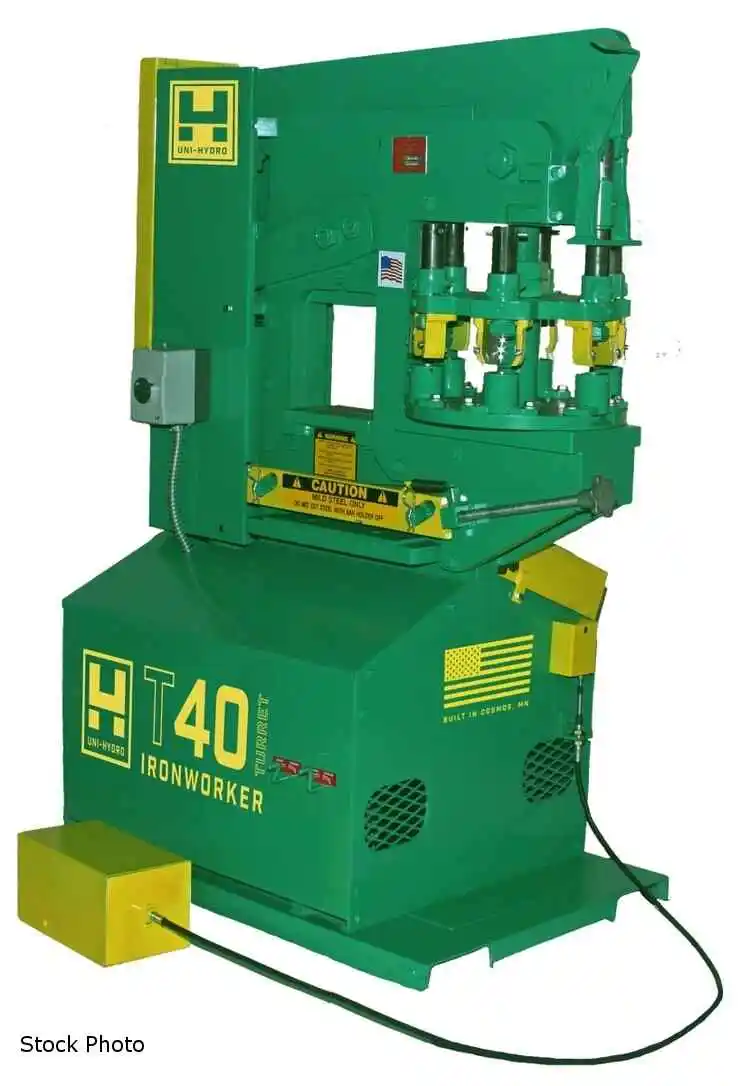

NEW UNI-HYDRO T40-14

UNI-HYDRO (NEW) MODEL T40-14 REVOLVING TURRET
IRONWORKER WITH 6 PUNCHING STATIONS

40 TON CAPACITY
5-1/4" THROAT
FLAT BAR SHEAR
STROKES PER MINUTE
- 50 SPM LIGHT MATERIAL
- 7 SPM @ MAXIMUM CAPACITY
1,000 PSI HYDRAULICS
15 QUARTS OIL CAPACITY
3 HP, 3 PHASE MOTOR

PUNCH CAPACITY
- 1" HOLE IN 1/2" MILD STEEL
- 1-3/8" HOLE IN 3/8" MILD STEEL

BAR SHEAR
- 3/8" X 14", 1/2" X 10", 5/8" X 6"

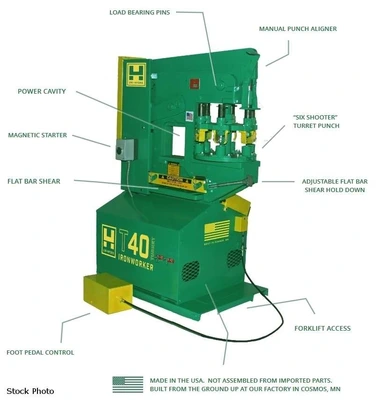

FEATURES
- PUNCH UP TO 6 DIFFERENT SIZES/SHAPES IN SECONDS
- 14" BAR SHEAR WITH 4-SIDED BLADES
MITER ANGLE IRON TO 3" X 3" X 5/16"
- FIXED OR ADJUSTABLE BAR SHEAR HOLD DOWN
- BUILT FOR FORKLIFT HANDLING
- MANUAL PUNCH ALIGNER

OPTIONS AVAILABLE - PRICE ON REQUEST
- 1 PHASE MOTOR
- SLUG-TYPE ANGLE SHEAR
- SEVER-TYPE ANGLE SHEAR
- ROD SHEAR
- CHANNEL SHEAR
- V COPER NOTCHER
- SQUARE NOTCHER
- PIPE NOTCHER (SCH 40 OR 80)
- BRAKE

ACCESSORIES AVAILABLE - PRICE ON REQUEST
- PUNCH TABLE WITH ADJUSTABLE JIG
- BAR SHEAR TABLE
- STEEL BIN CATCHER
- PUNCH NUT WRENCHES
- OVERSIZE DIE STANDS
- PUNCH AND DIE RACK
- REMOTE FOOT SWITCH
- BAR SHEAR STOP
- DELUXE BACK GAUGE
- OFFSET DIE STANDS
- OVERSIZE DIE SETS
- GREASE BANK
Power: 220/440 (3-Phase)
