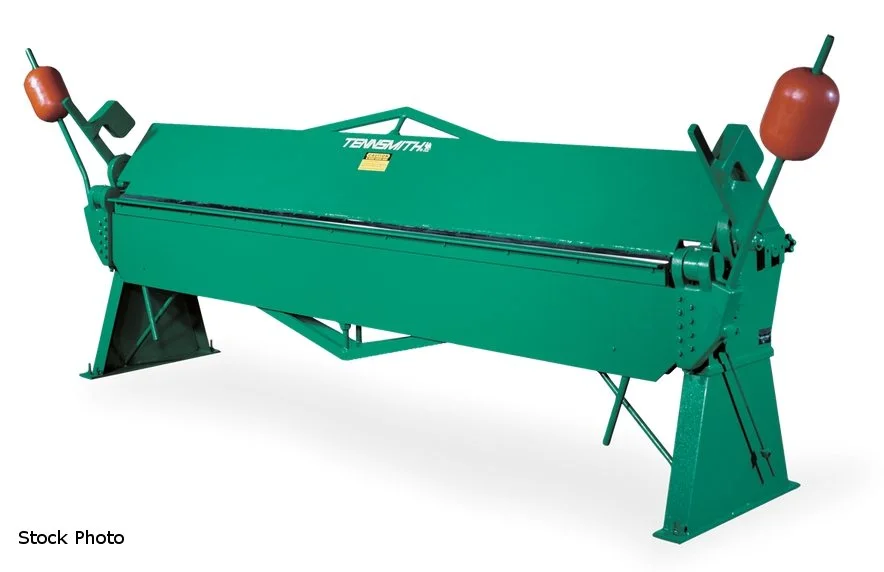

NEW TENNSMITH HB97-18

TENNSMITH (NEW) MODEL HB97-18 HEAVY-DUTY MANUAL
APRON BRAKE

18 GAUGE CAPACITY, MILD STEEL
97" BENDING LENGTH
1-7/8" MAXIMUM LIFT OF BEAM
1/2" FRONT TO REAR BEAM ADJUSTMENT
1/4" MINIMUM REVERSE BEND
1" MINIMUM FLANGE IN CAPACITY MATERIAL

FEATURES
- SUBSTANTIAL STEEL SIDE PLATES
- RIGIDITY REQUIRED FOR UPPER BEAM ADJUSTMENT
WITHOUT THE USE OF WRENCHES
- THRUST BEARINGS
- UPPER LEAF ADJUSTMENT SCREWS FOR QUICK,
ACCURATE ALIGNMENT
- REMOVEABLE APRON ANGLE AND INSERT FOR 1/4"
REVERSE BENDS IN LIGHT MATERIAL
- BORED IN LINE FOR PERFECT ALIGNMENT, PIVOT
POINTS ARE FITTED WITH OIL-IMPREGNATED BEARINGS
- HINGE PINS ARE HIGH-TENSILE, ALLOY STEEL
- DUCTILE STEEL CLAMP HANDLES
- HEAVY YOKES
- GREASE FITTINGS
- APRON STOP ROD
- LEVELING SCREWS LOCK NUTS ON THE PEDESTAL
- JACK SCREWS TENSIONER BOLTS ON THE APRON
- TRUSS RODS ON THE APRON, BASE UPPER BEAM
- FULLY ADJUSTABLE COUNTER BALANCES
- REPLACEABLE NOSE BAR AND APRON INSERTS
