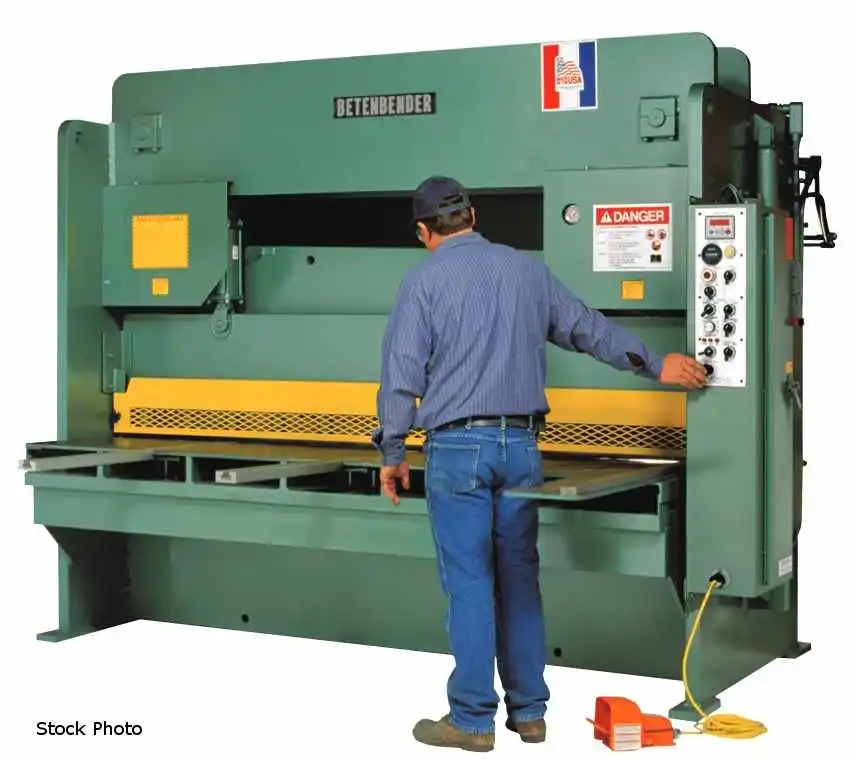

NEW BETENBENDER 10-375

BETENBENDER (NEW) MODEL 10-375 HYD SHEAR

3/8" X 10' RATED CAPACITY
36" POWER BACKGUAGE WITH LED READOUT INCH/METRIC
4' SQUARING ARM WITH INLAID SCALE
124" KNIFE
3/8" RAKE ANGLE
11" STROKES PER MINUTE
17 HOLDOWN PINS
20 HP, 208-230/460 VOLTS, 3 PHASE

FEATURES
- ALL HYDRAULIC FLUIDS INCLUDED
- ALL STEEL CONSTRUCTION
- AMERICAN MADE HOSES, FITTINGS, MOTORS , VALVES
- DISCONNECT SWITCH
- HOUR METER
- 2500 PSI

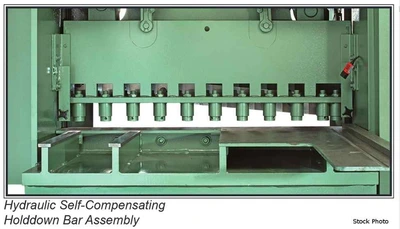

- HYD SELF-COMPENSATING HOLDDOWN BAR ASSEMBLY
- LIGHT BEAM GAUGE (SHADOW LINE)
- LINEMASTER FOOT SWITCH
- MANUAL RAPID BLADE GAP ADJUSTMENT

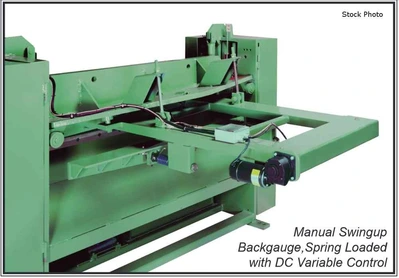

- MANUAL SWINGUP BACKGAUGE
- NEMA ELECTRICS
- POWER ADJUST VARIABLE RAKE

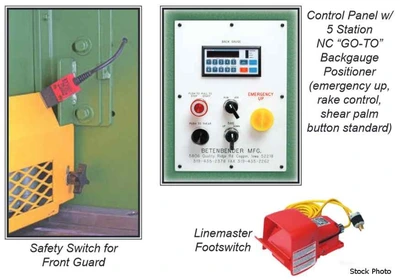

- SAFETY SWITCH FOR FRONT GUARD
- SINGLE PIECE TOP AND BOTTOM
- SHOCK-RESISTANT KNIVES WITH 4 CUTTING EDGES

OPTION AVAILABLE - PRICE ON REQUEST
- 3 POSITION POWER BLADE GAP ADJUSTMENT
- 48" SUPPORT ARMS/FRONT GAUGES
- NEOPRENE HOLDDOWN CAPS
- ONE-SHOT LUBRICATION
- SOLID TABLE TOP - BOLT ON SEGMENTS
- 2-POSITION POWER BLADE GAP ADJUSTMENT
- 208 VOLTS, SINGLE PHASE
- 5 STATION NC "GO-TO" POSITIONER
- ANGLE GAUGE
- AUTOMATIC LUBRICATION
- BALL TRANSFERS
- BOLT/SHIM KIT FOR LEVELING
- CONTINUOUS STROKE (INCLUDES STROKE COUNTER)
- DISAPPEARING STOPS (SUPPORT ARMS)
- DOVETAIL SLOTS OR T-SLOTS
- ELECTRONIC STROKE CONTROL
- EXTENDED SQUARING ARM
- EXTRA FOOT PEDAL WITH KEYLOCK SWITCH
- FLIP-UP STOPS (SQUARING ARM)
- HARDER GRADE OF HIGH CARBON, HIGH CHROME KNIVES
- INCREASE HP
- INDEPENDENT HOLDDOWN CONTROL
- INLAID SCALE (0-48")
- KEYLOCK SWITCH
- LEFT HAND SQUARING ARM (4')
- MACHINED SOLID TABLE TOP BED
- OIL COOLER
- OTHER ELECTRICS AND MOTORS
- PNEUMATIC SHEET SUPPORT
- POWER BLADE GAP ADJUSTMENT (10 GA, 3/16", 1/4")
- SPECIAL PAINT COLORS
- STROKE COUNTER
- BACKGAUGE OPTIONS
AUTOMATIC POWER LIFT
EXTRA LENGTH ON BACKGAUGE
POWER LIFT
Power: 208-230/460 (3-Phase)
