NEW SHARP LMV-42

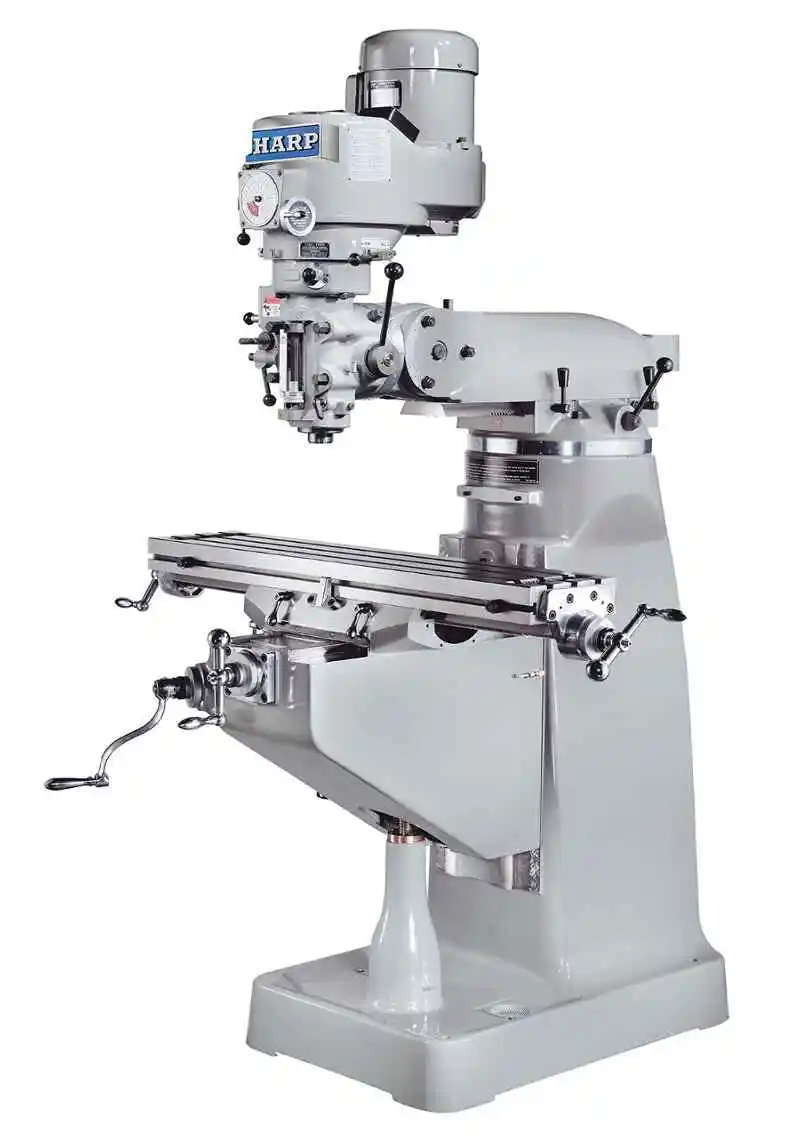

SHARP (NEW) MODEL LMV-42 VERTICAL MILL

CAPACITY
- TRAVELS: 30" X, 12" Y, 5"Z, 12" RAM, 16" KNEE
- SPINDLE TO COLUMN: 6-3/4" TO 18-1/2"
- SPINDLE NOSE TO TABLE TOP: 2-1/8" TO 18"

TABLE
- 9" X 42" WORKING SURFACE
- 3 T-SLOTS - 5/8"

SPINDLE
- 3 HP MOTOR
- 220 OR 440 VOLTS
- R-8 TAPER
- 60 - 4500 RPM VARIABLE SPEED
- 0.0015, 0.003, 0.006 IPR QUILL FEED
- 3.375" QUILL DIAMETER
- 360 DEGREE HEAD SWIVEL
- 45 DEGREE HEAD TILT (LEFT TO RIGHT)
- 45 DEGREE HEAD TILT (UP AND DOWN)

FEATURES
- BACKLASH ELIMINATOR BY DOUBLE NUT DESIGN
- KNUCKLE HEAD DESIGN TO KEEP HEAD FROM SLIPPING
- ROLLER BEARING SUPPORT AT BOTTOM OF MOTOR SHAFT
- EASY ACCESS LUBRICATING SHAFT

STANDARD EQUIPMENT
- ONE-SHOT LUBRICATION SYSTEM
- FRONT AND REAR RUBBER WAY COVERS
- HARD-CHROMED WAYS
- TOOL KIT

OPTIONS AVAILABLE - PRICE ON REQUEST
- AUTO LUBE PUMP WITH 2 ADJUSTMENTS
- POWER FEEDS FOR TABLE, CROSS FEED AND KNEE
- 6" KURT VISE WITH SWIVEL BASE
- RIGHT ANGLE MILLING ATTACHMENT WITH ARBOR
- DRILL CHUCK AND DRILL ARBOR
- 6" RISER BLOCK
- COOLANT SYSTEM WITH CHIP PAN
- MAXI TORQUE RITE POWER DRAW BAR
- CLAMPING KIT (52 PIECES / STEEL RACK)
- HALOGEN WORK LIGHT
- CE MARK
- 380 VOLT AND 575 VOLT TRANSFORMER
- UL COMPONENTS UPGRADE WITH ELECTRICAL BOX
- UL COMPLIANCE CERTIFICATE UNDER STATE OF CALIF.
- DIGITAL READOUT SYSTEM
Power: 220/440 (3-Phase)
