| Dimensions | 75 X 21 X 46 | 75 X 21 X 46 |
| Weight | 1,550 | 1,550 |

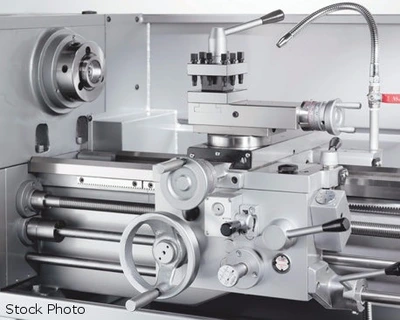

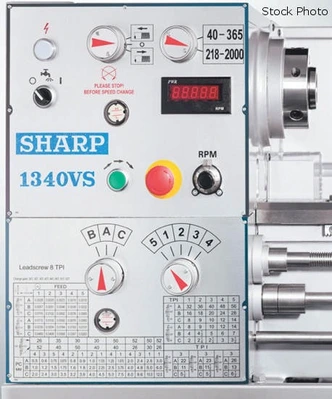

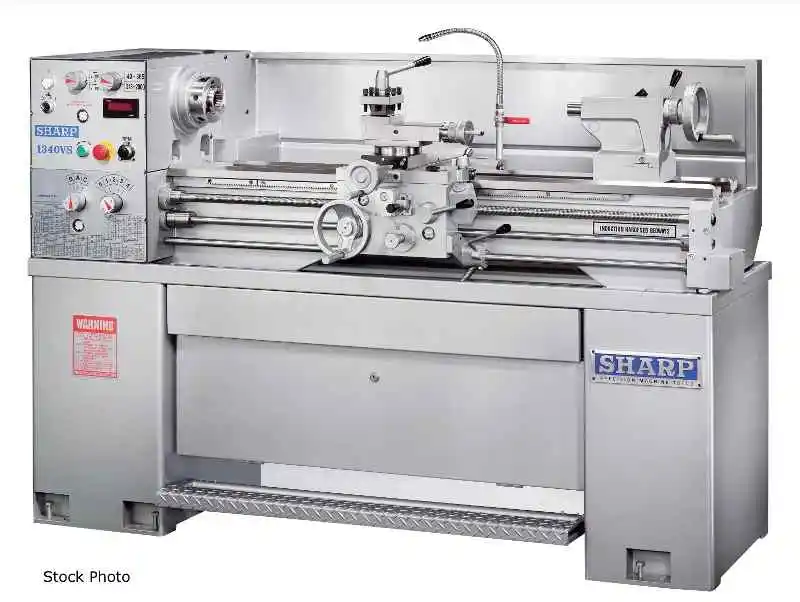

SHARP (NEW) MODEL 1340VS PRECISION ENGINE LATHE
CAPACITY
- 13" SWING OVER BED
- 7.6" SWING OVER CROSS SLIDE
- 19" SWING OVER GAP
- 9.43" GAP WIDTH (IN FRONT OF FACE PLATE)
- 40" BETWEEN CENTERS
HEADSTOCK
- 40 - 2,000 RPM SPINDLE SPEEDS
- D1-4 CAMLOCK SPINDLE NOSE
- 1.56" SPINDLE BORE
THREADS AND FEEDS
- 2 - 56 TPI INCH THREADS (40)
- 0.0016" - 0.046"/REV LONGITUDINAL FEEDS (40)
- 0.0005" - 0.015"/REV CROSS FEEDS (40)
- 8 TPI LEADSCREW PITCH, 0.87" DIAMETER
- 0.5 - 12 MM METRIC THREADS (22)
CARRIAGE
- 6.18" CROSS SLIDE TRAVEL
- 3.75" COMPOUND TRAVEL
- 4.5" COMPOUND WIDTH
BED
- 64" BED LENGTH
- 8.5" BED WIDTH
TAILSTOCK
- 1.56" QUILL DIAMETER
- 4" QUILL TRAVEL
- MT3 QUILL CENTER TAPER
- 3 HP MOTOR, 220 VOLTS, 3 PHASE
STANDARD EQUIPMENT
- 3-JAW 8" CHUCK
- STEADY REST
- REMOVABLE GAP
- BACK PLATE
- COOLANT SYSTEM
- 4-WAY TOOL POST
- FULL-LENGTH SPLASH GUARD
- CENTER SLEEVES
- DEAD CENTERS
- TOOL KIT
- CAN RUN ON SINGLE PHASE MOTOR
OPTIONS AVAILABLE - PRICE ON REQUEST
- 440 VOLTS
- 3-JAW CHUCKS
- 4-JAW CHUCKS
- CHUCK GUARD WITH LIMIT SWITCH
- FOLLOW REST
- ROLLER JAW FOR STEADY REST
- TAPER ATTACHMENT
- 7-PIECE QUICK-CHANGE TOOL HOLDER
- MT#3 LIVE CENTER
- DRILLS AND ARBORS
- 12" FACE PLATE
- 4-WAY CARRIAGE STOP
- MICROMETER CARRIAGE STOP SAFETY COVER
- HALOGEN WORK LIGHT
- TOOL GUARD (AT FRONT OF COMPOUND SLIDE)
- LEAD SCREW COVER (ACCORDION STYLE)
- 16-PC 5C COLLET SET (1/8" TO 1-1/16" BY 1/16")
- 5C LEVER COLLET CLOSER
Power: 220 (3-Phase)
