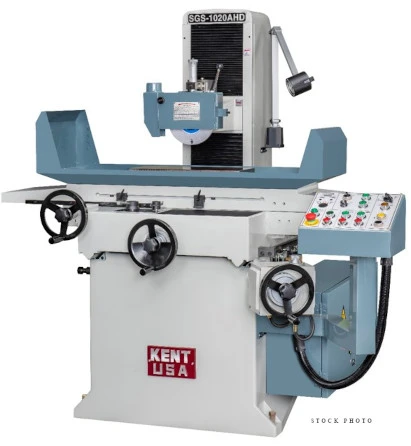

NEW KENT USA SGS-1020AHD

KENT USA (NEW) MODEL SGS-1020AHD SURFACE GRINDER

9" X 19.6" TABLE
10" X 20" GRINDING SURFACE
22.2" LONGITUDINAL TRAVEL
10.3" CROSS TRAVEL
19.6" SPINDLE CENTER TO TABLE TOP
20-82 FPM TABLE SPEED
VERTICAL HANDWHEEL
- 0.0005" (1 GRADUATION)
- 0.100" (1 REVOLUTION)
CROSSFEED HANDWHEEL
- 0.001" (1 GRADUATION)
- 0.200" (1 REVOLUTION)
10 STEP AUTOMATIC DOWNFEED
- 0.0001" TO 0.001" INCREMENT
2 HP SPINDLE MOTOR
3500 RPM SPINDLE SPEED
8" X 1/2" X 1-1/4" GRINDING WHEEL

FEATURES
- 3-AXIS AUTO MOVEMENT WITH INCREMENTAL DOWNFEED
- ELECTRONIC AUTO-CROSSFEED
- PRECISION HAND-SCRAPED TABLE AND SADDLE WAYS
- HIGH COLUMN DESIGN- EXTRA CLEARANCE UNDER WHEEL
- RAPID ELEVATION MOTOR FOR QUICK, EASY
POSITIONING OF GRINDING WHEEL/HEAD
- CENTRALIZED AUTOMATIC LUBRICATION SYSTEM
- SAFE 24 V CONTROL CIRCUIT POWER

STANDARD ACCESSORIES
- GRINDING WHEEL
- WHEEL FLANGE
- WHEEL BALANCING BASE AND ARBOR
- DIAMOND TABLE DRESSER BASE AND TIP
- LEVELING BOLTS AND PADS
- WORK LIGHT
- 8" X 20" PERMANENT MAGNETIC CHUCK
- DUST-SUCTION COOLANT SYSTEM
- OVERHEAD PARALLEL DRESSER
- TOOLBOX WITH TOOLS

OPTIONS AVAILABLE - PRICE ON REQUEST
- ACU-RITE 203 DRO PACKAGE (2-AXIS, 0.0001"
RESOLUTION)
- DRO PACKAGE INSTALLATION
- UPGRADE TO WALKER 8 X 18 LBP FINE POLE ELECTRIC
CHUCK W/CONTROL
- UPGRADE TO WALKER 8 X 18 CERAMAX PERMANENT
CHUCK
- UPGRADE TO KANETSU 8 X 18 FINE POLE ELECTRIC
CHUCK AND CONTROL
- UPGRADE TO KANETSU 8 X 19.6 FINE POLE ELECTRIC
CHUCK AND CONTROL
- UPGRADE TO PAPER FILTER MAGNETIC SEPARATOR
COOLANT SYSTEM
- EXTRA WHEEL FLANGE
- COOLANT (1 GALLON, MIXES 1:30
