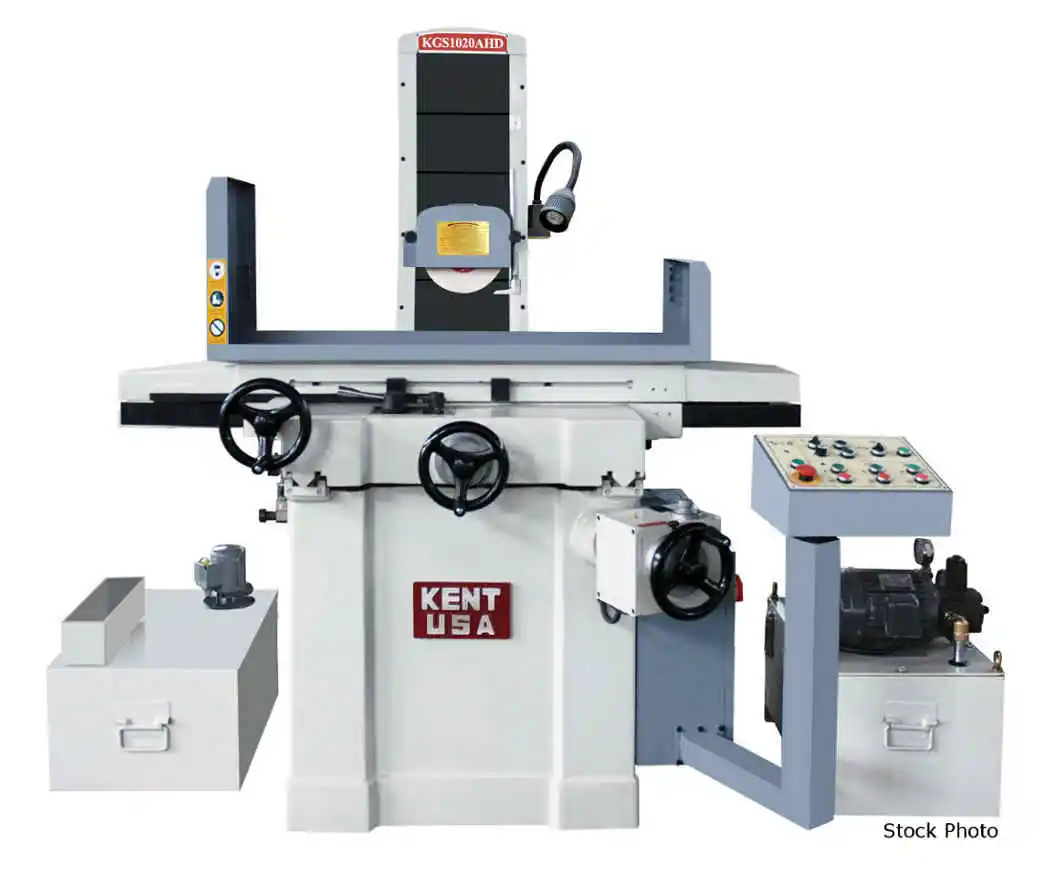

NEW KENT USA SGS-1020AHD

KENT USA (NEW) MODEL KGS-1020AHD SURFACE GRINDER

10.4" X 21.4" WORKING CAPACITY
23.6" TABLE TRAVEL
11.4" SADDLE TRAVEL
1 X 9/16" T-SLOT
3,500 RPM SPINDLE SPEED
8" X 1/2" X 1-1/4" GRINDING WHEEL
0.0005" VERTICAL GRADUATION
0.100" VERTICAL REVOLUTION
0.0001" 10 STEP AUTO DOWNFEED INCREMENT
21" FROM SPINDLE TO TABLE
3 HP SPINDLE MOTOR

FEATURES
- FLANGE-MOUNT SPINDLE CARTRIDGE FOR SUPERIOR
SIDE-GRINDING RIGIDITY
- 3-AXIS AUTOMATIC MOVEMENT WITH INCREMENTAL
DOWNFEED AND ELECTRONIC AUTO CROSSFEED
- ROLLER BALL ON LINEAR TABLE WAYS
- DOUBLE-V PRECISION HAND-SCRAPED TURCITE SADDLE
WAYS FOR SMOOTH, LONG-LASTING PERFORMANCE
- HIGH-COLUMN EXTRA-RIGID H-FRAME DESIGN
- OVER-SIZE REAR SPLASH GUARD
- SUPER VIBRATION DAMPENING CAPABILITY
- CENTRALIZED AUTO LUBRICATION SYSTEM
- SAFETY 24V CONTROL CIRCUIT POWER

STANDARD ACCESSORIES
- GRINDING WHEEL
- WHEEL FLANGE
- WHEEL BALANCING BASE
- WHEEL BALANCING ARBOR
- DIAMOND TABLE DRESSER BASE AND TIP
- LEVELING BOLTS AND PADS
- WORK LIGHT
- TOOLBOX WITH TOOLS

OPTIONS AVAILABLE - PRICE ON REQUEST
- DIGITAL READOUT SYSTEM
- PAPER FILTER AND MAGNETIC SEPARATOR COOLANT SYS
- PERMANENT CHUCK
- DUST -SUCTION COOLANT SYSTEM
- OVERHEAD PARALLEL DRESSER
- EXTRA WHEEL FLANGE
- RUSTLICK COOLANT
