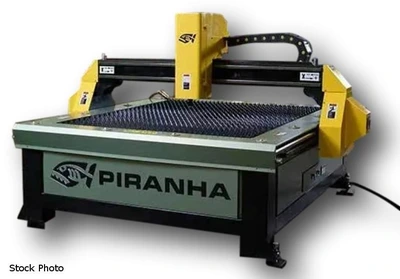

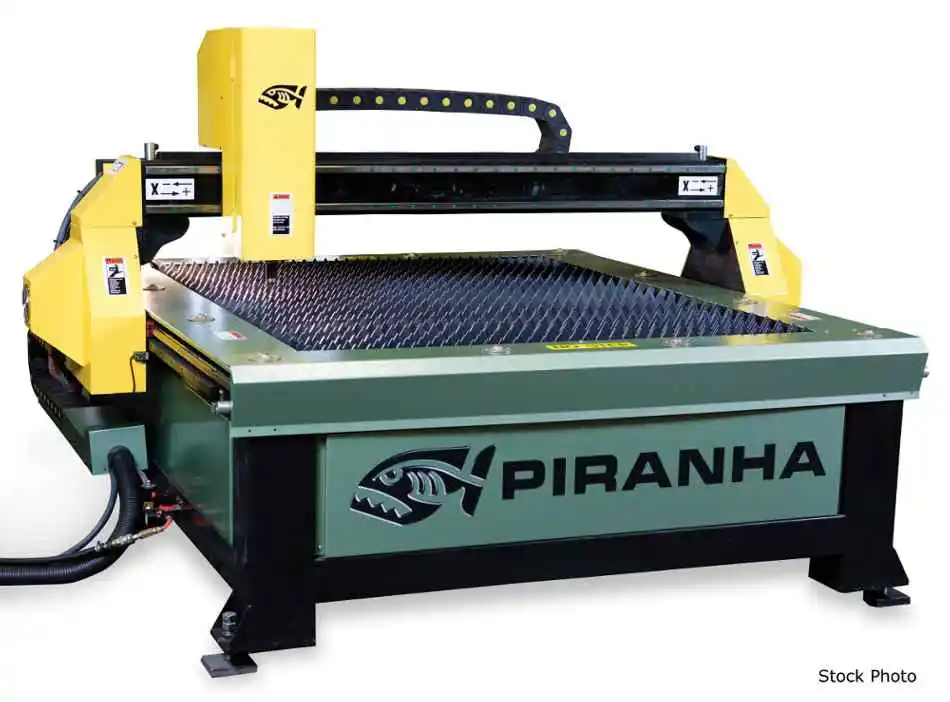

NEW PIRANHA C510

PIRANHA (NEW) MODEL C510 PLASMA TABLE WITH
HYPERTHERM POWERMAX 85 PLASMA SYSTEM

5' X 10' CUTTING AREA
314 IPM TRAVERSE SPEED
STARFIRE CNC CONTROL
DRIVE MOTORS
- X AXIS - 2 SERVO MOTORS
- Y AXIS - SERVO MOTOR
- TORCH HEIGHT CONTROL - STEPPER MOTOR
DRIVE SYSTEM
- X AXIS - RACK AND PINION ON EACH SIDE
- Y AXIS - RACK AND PINION
- Z AXIS - BALL SCREW
ARC VOLTAGE W/INITIAL HEIGHT SENSING TORCH CONTROL
PNEUMATIC BREAKAWAY TORCH PROTECTION
6500 CFM AT 3" H2O EXHAUST FAN
DOWNDRAFT TABLE

HYPERTHERM POWERMAX 85
- 24 IPM WITH 3/4" THICK MILD STEEL

PRONEST LT SMART START PROGRAMMING SYSTEM
- 2D CAD DRAWING
- DXF IMPORTING
- INTEGRATED SHAPE LIBRARY
- DRAG AND DROP NESTING

FEATURES
- RUGGED CONSTRUCTION - ALL WELDED STEEL FRAME
- WELDED TUBULAR STEEL FRAME BRIDGE CONSTRUCTION
- HIGH ACCURACY LINEAR GUIDES AND BEARINGS
- DUAL SIDE DRIVE - GANTRY DRIVEN ON BOTH SIDES
- CNC CONTROL WITH 10.4" HI RES COLOR LCD MONITOR
SHAPE LIBRARY WITH 20 CONFIGURABLE SHAPES
8 MB MEMORY
USB INTERFACE
- PANASONIC SERVO MOTORS AND DRIVES
400 WATT SERVO MOTORS ON X-AXIS AND Y-AXIS
- DOWN DRAFT EXHAUST SYSTEM
- MICROSTEP PROGRAMMABLE TORCH HEIGHT CONTROL
- BREAKAWAY TORCH MOUNTING TO PREVENT PART TIP-UPS

OPTIONS AVAILABLE - PRICE ON REQUEST
- TUBE CUTTING ATTACHMENT
- AIR DRYER UNIT
- 3-STAGE FILTER SYSTEM
- CONSUMABLE KITS
- DUST COLLECTION SYSTEM
- ON-SITE TRAINING
- HYPERTHERM PLASMA SYSTEMS WITH INTERFACE CABLE
POWERMAX 45XP WITH DOWNDRAFT TABLE
POWERMAX 65 WITH DOWNDRAFT TABLE
POWERMAX 105 WITH WATER TABLE
POWERMAX 125 WITH WATER TABLE
- PLASMA GREEN RUST INHIBITOR BOICIDE - 5 GAL.
- PRONEST LT OPTIONAL PACKAGES
LT ESSENTIALS
LT UNLIMITED
DESIGN2FAB6

OTHER C SERIES MODELS AVAILABLE
- C408 4' X 4'
- C510 4' X 8'
Power: 230 (Single)
